THROTTLE BODIES
7-11
d. Start the engine.
e. Measure the fuel line pressure.
Faulty → Replace the fuel pump.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲
EAS1MC1076

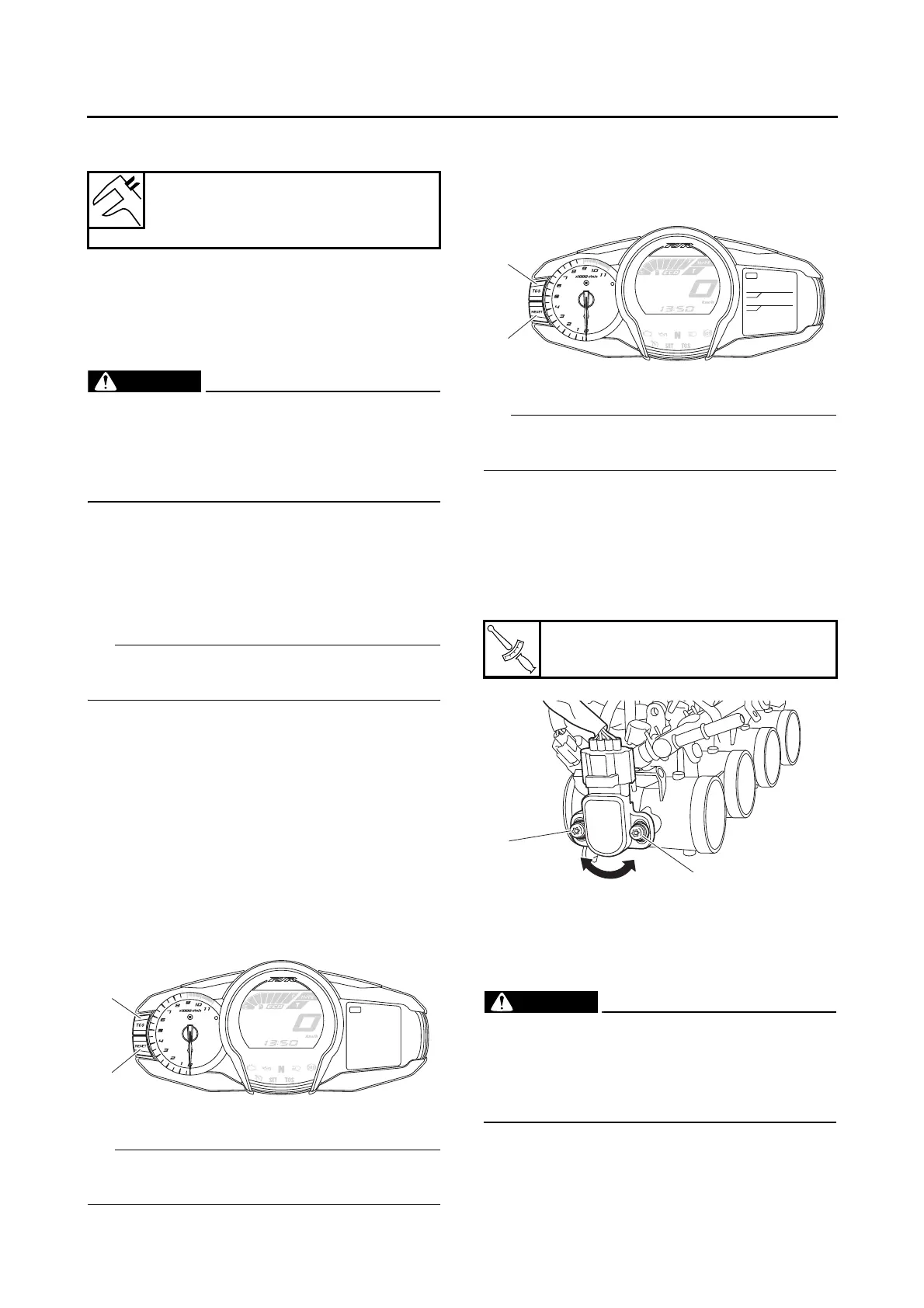

ADJUSTING THE THROTTLE POSITION
SENSOR
WARNING
EWA1MC1019
• Handle the throttle position sensor with
special care.
• Never subject the throttle position sensor
to strong shocks. If the throttle position
sensor is dropped, replace it.
1. Check:
• Throttle position sensor
Refer to “CHECKING THE THROTTLE PO-
SITION SENSOR” on page 8-187.
2. Adjust:
• Throttle position sensor angle
TIP
Before adjusting the throttle position sensor, the
throttle bodies must be removed.
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼▼▼▼
a. Temporary tighten the throttle position sensor
screws.
b. Check that the throttle valves are fully closed.
c. Turn the main switch to “OFF”.
d. Connect the throttle position sensor to the
wire harness.
e. Simultaneously press and hold the “TCS”
button “1” and “RESET” button “2”, turn the
main switch to “ON”, and continue to press
the buttons for 8 seconds more.
TIP
All displays on the multi-function meter right dis-
play disappear and “DIAG” appears.
f. Simultaneously press the “TCS” button “1”
and “RESET” button “2” for 2 seconds or
more to set the diagnostic mode.
TIP
The diagnostic code number “01” appears on
the multi-function meter right display.
g. Diagnostic code number “01” is selected.
h. Adjust the position of the throttle position sen-
sor angle so that 12–21 can appear in the
meter display.
i. After adjusting the throttle position sensor an-
gle, tighten the throttle position sensor
screws “3”.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS1MC1077
ADJUSTING THE ACCELERATOR POSITION
SENSOR
WARNING
EWA1MC1003
• Handle the accelerator position sensor with
special care.
• Never subject the accelerator position sen-
sor to strong shocks. If the accelerator po-
sition sensor is dropped, replace it.
1. Check:
• Accelerator position sensor
Refer to “CHECKING THE ACCELERATOR
POSITION SENSOR” on page 8-188.
Fuel line pressure (at idle)
300.0–390.0 kPa (3.00–3.90
kgf/cm², 43.5–56.6 psi)
DIAG
1
2
T
R
.
.
Throttle position sensor screw
3.5 Nm (0.35 m·kg, 2.5 ft·lb)
01
15
DIAG
DIAG
DATA
1
2
3
3
