GENERAL CHASSIS
4-1
EAS21830
GENERAL CHASSIS

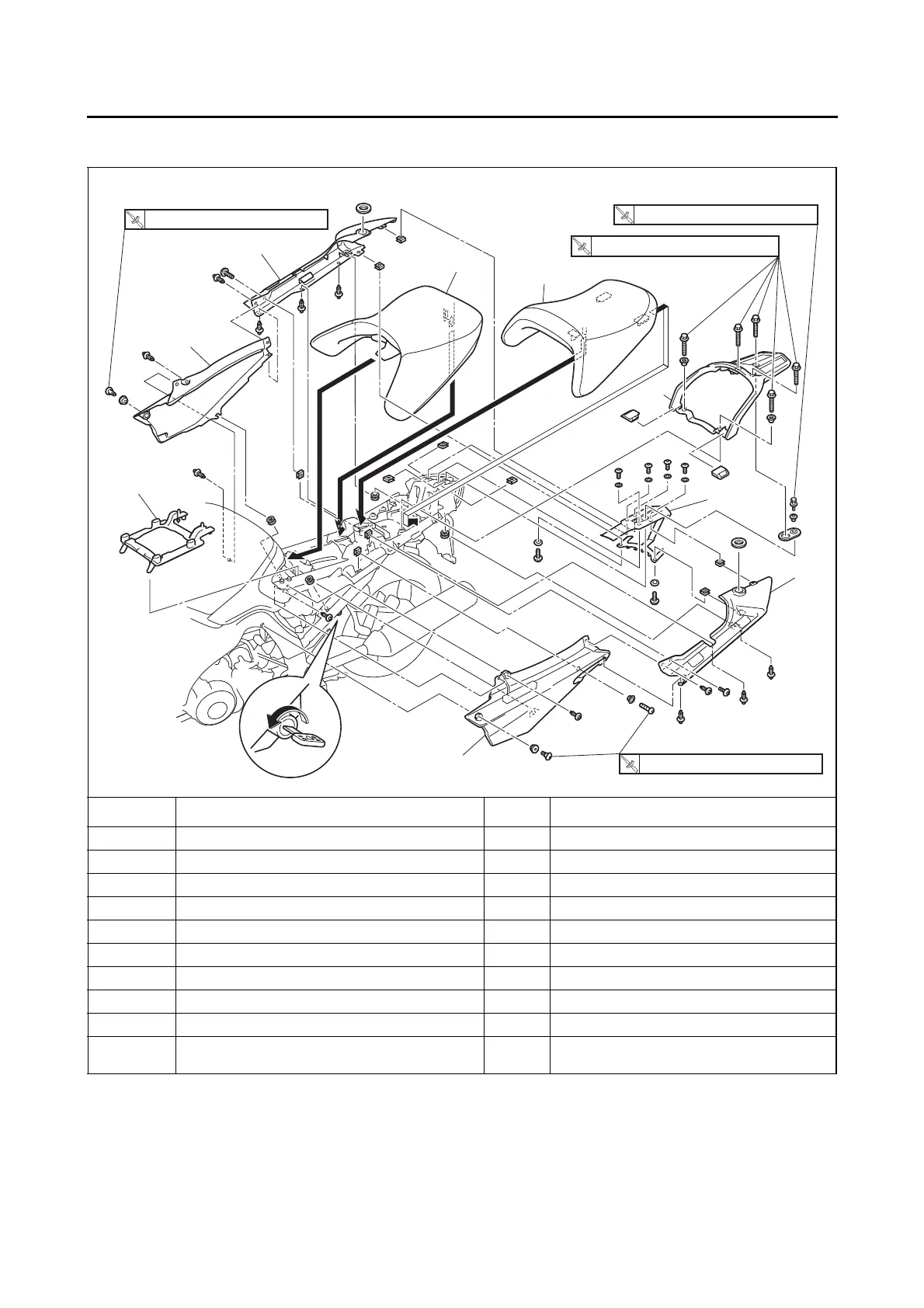

Removing the seats and covers
Order Job/Parts to remove Q’ty Remarks
1 Passenger seat 1
2 Rider seat 1
3 Grab bar 1
4 Center rear cowling 1
5 Left rear cowling 1
6 Right rear cowling 1
7 Left side cover 1
8 Right side cover 1
9 Rider seat height position adjuster 1
For installation, reverse the removal proce-
dure.
3
1
5
4
7
2
6
9
8
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
.R.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
.R.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
.R
.
21 Nm (2.1 m
•
kg, 15 ft
•
Ib)
T
.R.
