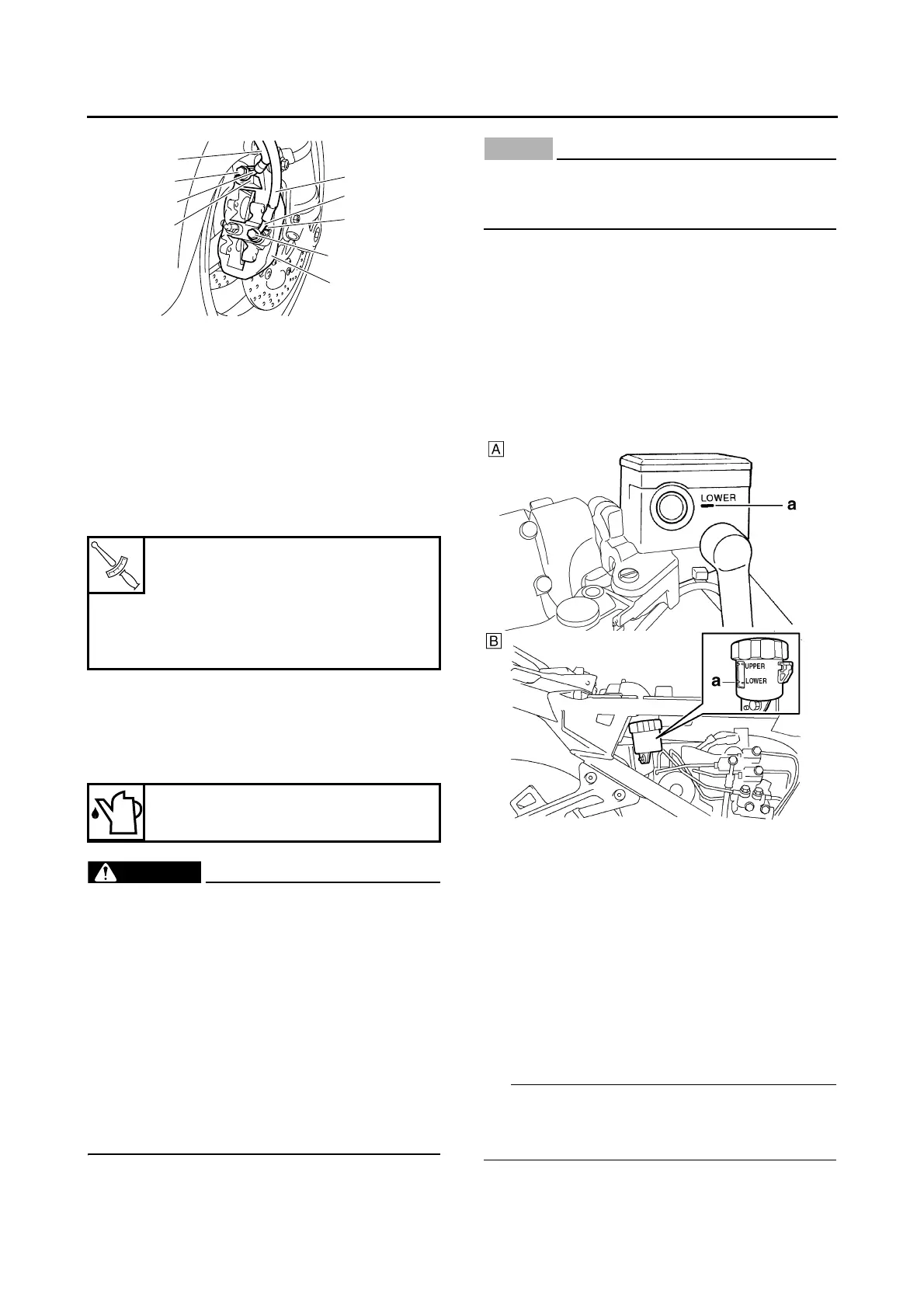

FRONT BRAKE
4-47
2. Remove:
• Brake caliper
3. Install:
• Brake pads
• Brake pad springs
• Brake pad bolts
• Brake caliper
• Brake hose holder
Refer to “REPLACING THE FRONT BRAKE
PADS” on page 4-44.
4. Fill:
• Brake master cylinder reservoir
• Brake fluid reservoir
(with the specified amount of the specified
brake fluid)
WARNING
EW3P61008
• Use only the designated brake fluid. Other
brake fluids may cause the rubber seals to
deteriorate, causing leakage and poor
brake performance.
• Refill with the same type of brake fluid that
is already in the system. Mixing brake fluids
may result in a harmful chemical reaction,
leading to poor brake performance.
• When refilling, be careful that water does
not enter the brake master cylinder reser-
voir and brake fluid reservoir. Water will
significantly lower the boiling point of the
brake fluid and could cause vapor lock.
NOTICE
ECA13540
Brake fluid may damage painted surfaces
and plastic parts. Therefore, always clean up
any spilt brake fluid immediately.
5. Bleed:
• Brake system
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM (ABS)” on page 3-14.
6. Check:
• Brake fluid level
Below the minimum level mark “a” → Add the
specified brake fluid to the proper level.
Refer to “CHECKING THE BRAKE FLUID
LEVEL” on page 3-14.
7. Check:
• Brake lever and brake pedal operation
Soft or spongy feeling → Bleed the brake sys-
tem.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM (ABS)” on page 3-14.
EAS22490
REMOVING THE FRONT BRAKE MASTER
CYLINDER
TIP
Before removing the front brake master cylinder,
drain the brake fluid from the entire brake sys-
tem.
1. Remove:
• Brake hose union bolt “1”
T
R
.
.
Brake pad bolt
17 Nm (1.7 m·kg, 12 ft·lb)
Brake caliper bolt
40 Nm (4.0 m·kg, 29 ft·lb)
Brake hose holder bolt
7 Nm (0.7 m·kg, 5.1 ft·lb)
Specified brake fluid
DOT 4
4
a
3
a
b
4
1
b
2
A. Front brake
B. Unified brake system
