REAR WHEEL
4-36
EAS22170

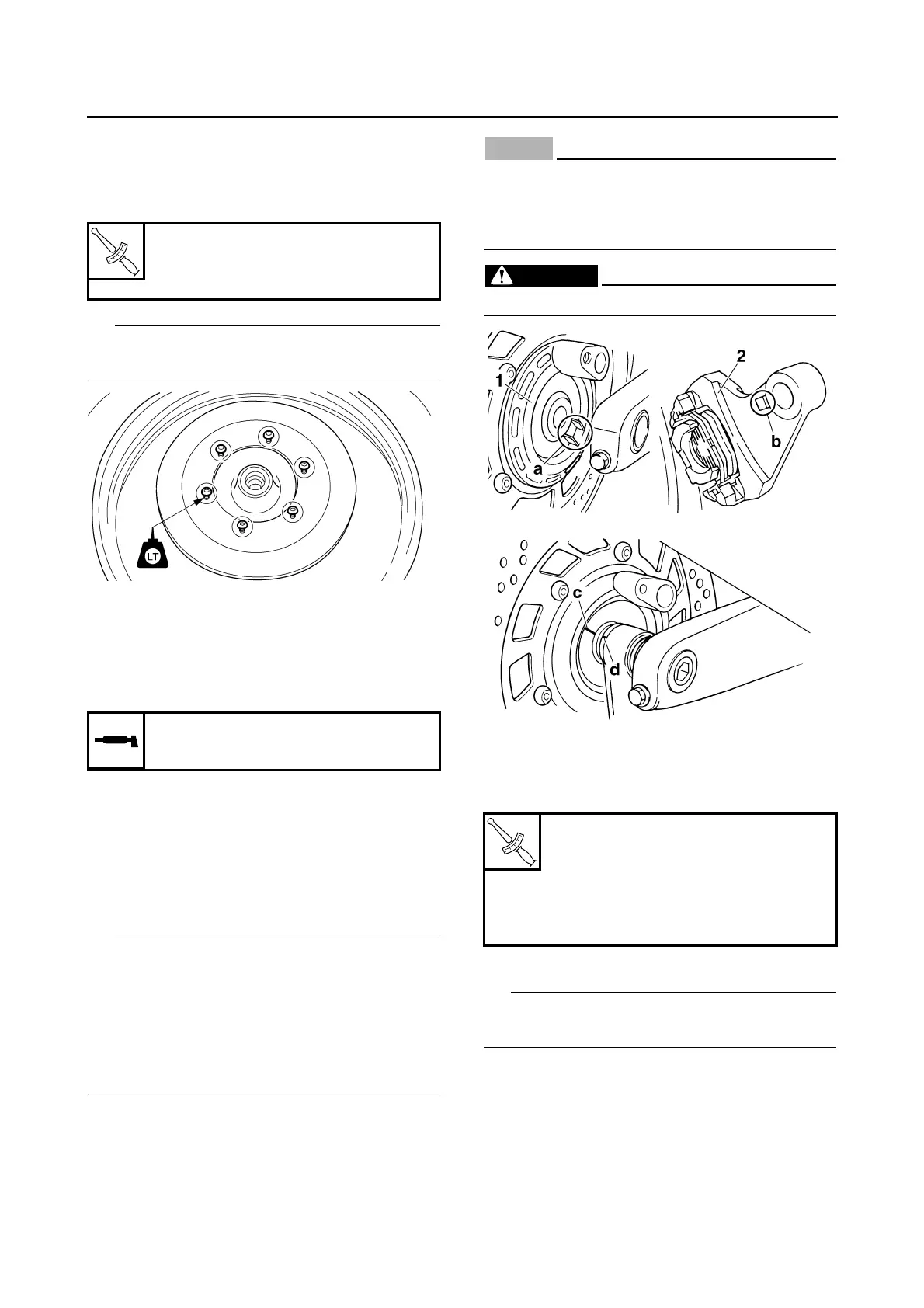

INSTALLING THE REAR WHEEL (REAR
BRAKE DISC)
1. Install:
• Rear brake disc
Tighten the brake disc bolts in stages and in a
crisscross pattern.
2. Check:
• Rear brake disc
Refer to “CHECKING THE REAR BRAKE
DISC” on page 4-56.
3. Lubricate:
• Oil seal lips
4. Install:
• Rear wheel sensor housing
• Rear wheel
• Rear brake caliper
• Rear wheel axle
• Brake torque rod
• Rear wheel axle nut
• Align the slot “a” of the rear wheel sensor hous-
ing “1” with the projection “b” of the rear brake
caliper bracket “2”, and then assemble them.
• After assembling the rear wheel sensor hous-
ing and the rear brake caliper bracket, make
sure that the projection “c” on the housing is
aligned with the projection “d” on the bracket.
ECA14470
Make sure there are no foreign materials in
the wheel hub. Foreign materials cause dam-
age to the inner sensor rotor and wheel sen-
sor.
EWA13500
Make sure the brake hose is routed properly.
5. Tighten:
• Brake torque rod nuts
• Rear wheel axle nut
• Rear wheel axle pinch bolt
6. Measure:
Measure the distance “a” only if the wheel bear-
ings, wheel sensor rotor, or both were replaced.
• Distance “a”
(between the wheel sensor rotor “1” and
wheel sensor housing “2”)
Out of specification → Reinstall the bearing
or replace the wheel sensor rotor.
Rear brake disc bolt
18 Nm (1.8 m·kg, 13 ft·lb)
LOCTITE®
Recommended lubricant
Lithium-soap-based grease
Brake torque rod nut
30 Nm (3.0 m·kg, 22 ft·lb)
Rear wheel axle nut
125 Nm (12.5 m·kg, 90 ft·lb)
Rear wheel axle pinch bolt
23 Nm (2.3 m·kg, 17 ft·lb)
