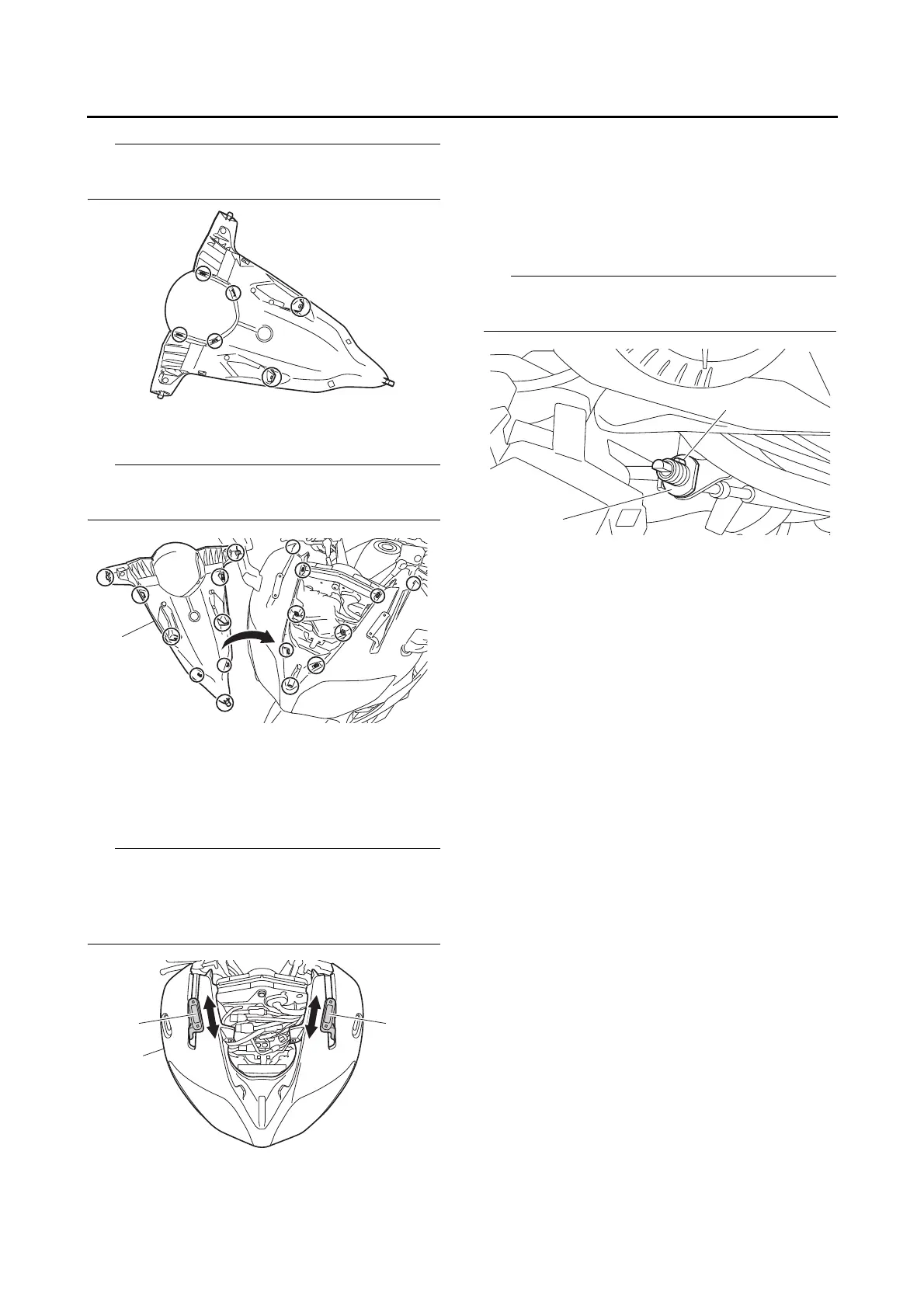

Yamaha FJR1300A(D) - Installing the Front Cowling Assembly; Installing the Headlight Beam Adjusting Knob Joints

GENERAL CHASSIS
4-13
TIP
Fit the projections on the upper center cover into
the holes in the lower center cover.
2. Install:
• Center cover assembly “1”
TIP
Fit the projections on the lower center cover into
the holes in the front cowling.
EAS1MC1031
INSTALLING THE FRONT COWLING
ASSEMBLY
1. Install:
• Front cowling assembly “1”
TIP
After installing the front cowling assembly, oper-
ate the windshield drive unit and check that the
windshield drive unit arms “a” do not contact the
front cowling when they move up and down.
EAS1MC1080
INSTALLING THE HEADLIGHT BEAM
ADJUSTING KNOB JOINTS
The following procedure applies to both of the
headlight beam adjusting knob joints.
1. Install:
• Headlight beam adjusting knob joint “1”
TIP
Face the projection “a” on the headlight beam
adjusting knob joint forward.
1
1
a
a
1
a
