GENERAL CHASSIS
4-14

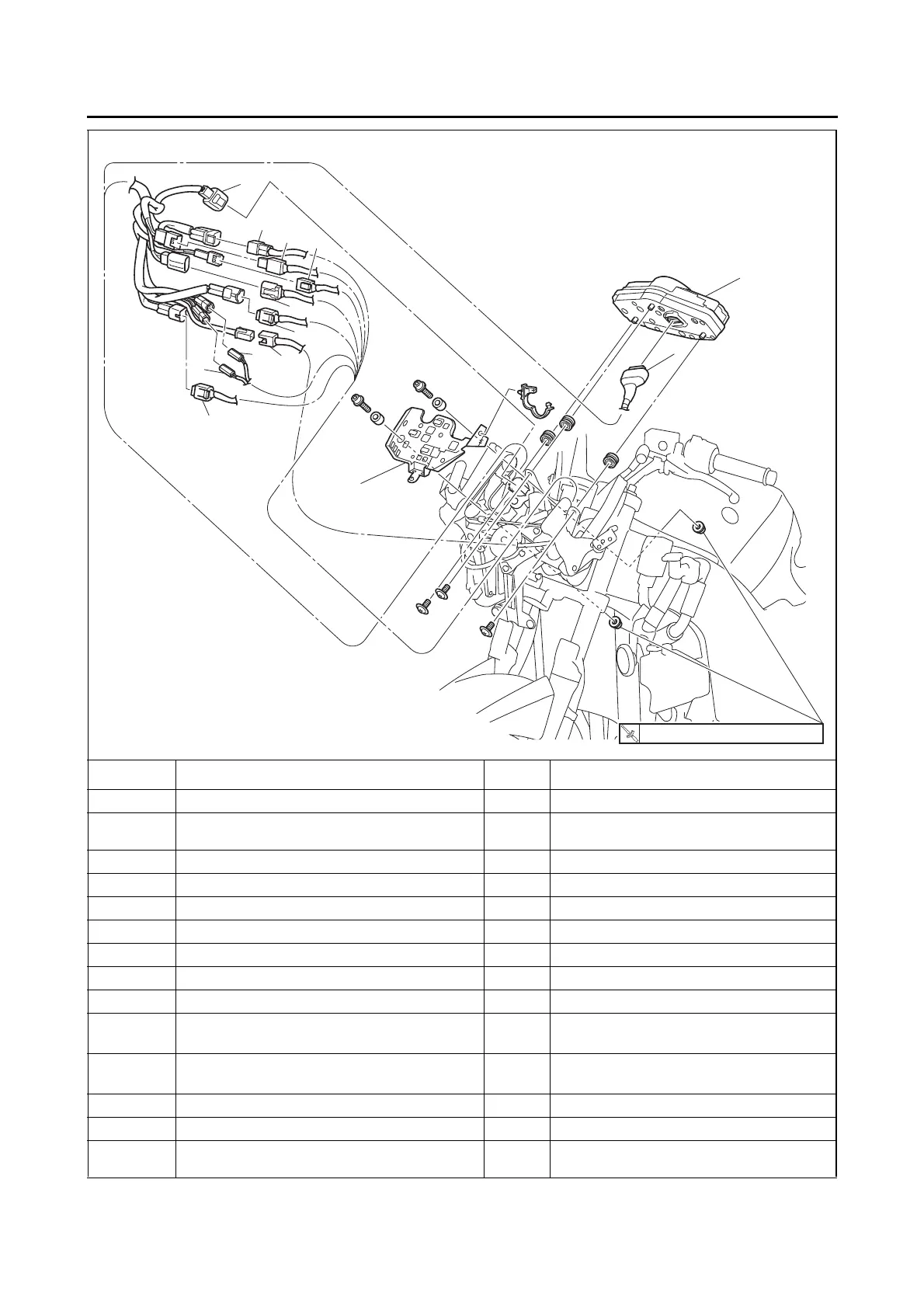

Removing the meter assembly and electrical components board
Order Job/Parts to remove Q’ty Remarks
Side cowlings Refer to “Removing the side cowlings”.
Front cowling assembly
Refer to “Removing the front cowling assem-
bly”.
1 Meter assembly coupler 1 Disconnect.
2 Meter assembly 1
3 Right handlebar switch coupler 2 Disconnect.
4 Left handlebar switch coupler 2 Disconnect.
5 Front brake light switch coupler 1 Disconnect.
6 Windshield drive unit sub-lead coupler 1 Disconnect.
7 Air temperature sensor coupler 1 Disconnect.
8 Right grip warmer coupler 1
Disconnect.
Gray coupler.
9 Left grip warmer coupler 1
Disconnect.
Black coupler.
10 Clutch switch coupler 1 Disconnect.
11 Electrical components board 1
For installation, reverse the removal proce-
dure.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
.
R
.
7
1
11
9
8
10
2
3
3
4
5
4
6
To Next Page
