GENERAL CHASSIS
4-15

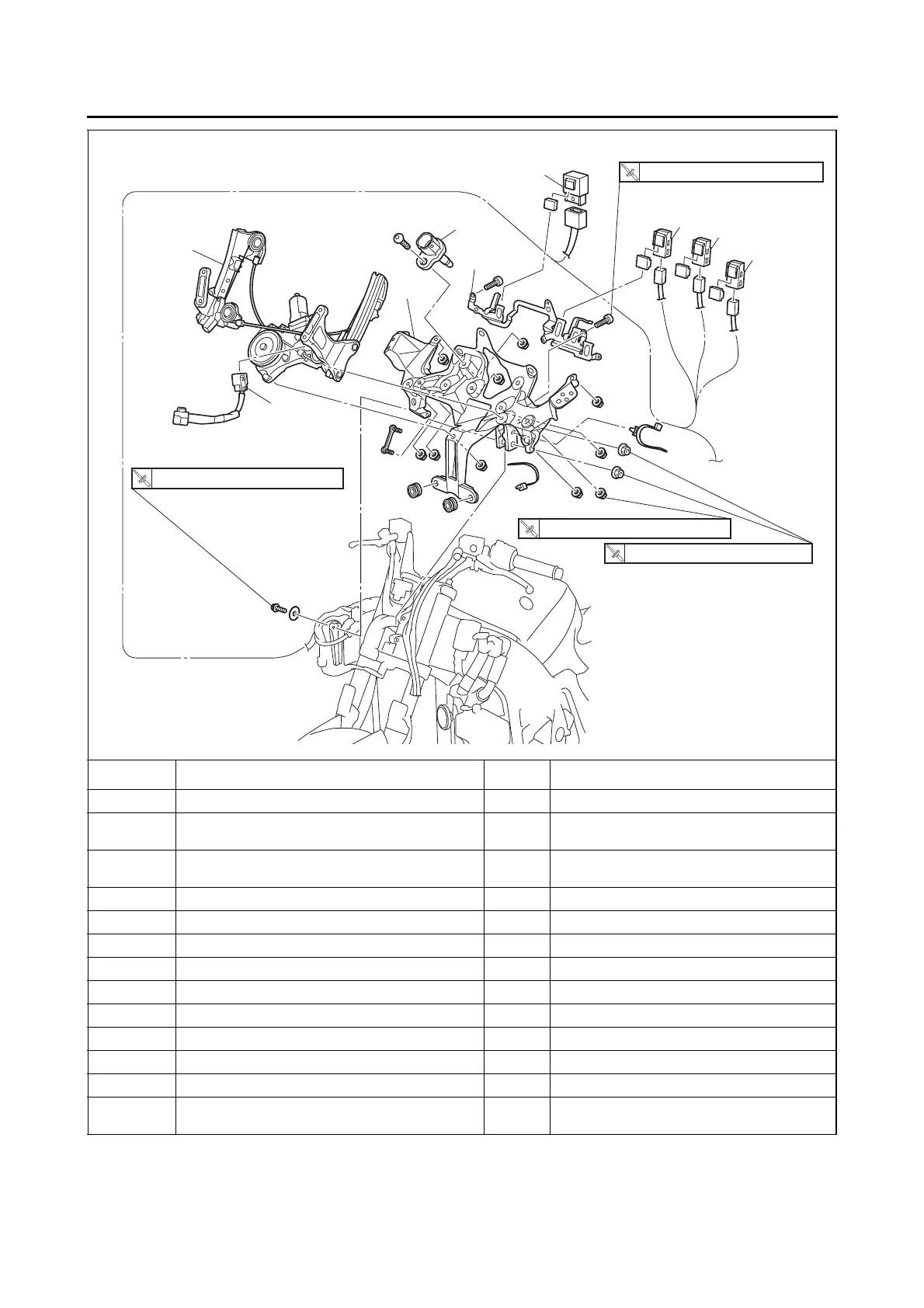

Removing the windshield drive unit
Order Job/Parts to remove Q’ty Remarks
Side cowlings Refer to “Removing the side cowlings”.
Front cowling assembly
Refer to “Removing the front cowling assem-
bly”.
Electrical components board
Refer to “Removing the meter assembly and
electrical components board”.
1 Windshield drive unit relay (up) 1
2 Windshield drive unit relay (down) 1
3 Headlight relay (dimmer) 1
4 Relay unit 1
5 Relay bracket 1
6 Air temperature sensor 1
7 Windshield drive unit sub-lead 1
8 Windshield drive unit 1
9 Windshield drive unit bracket 1
For installation, reverse the removal proce-
dure.
32 Nm (3.2 m
•
kg, 23 ft
•
Ib)
T
.R
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
.R.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
.R
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
.R
.
6
5
8
4
3
2
1
9
7
To Next Page
