MIDDLE GEAR
5-68

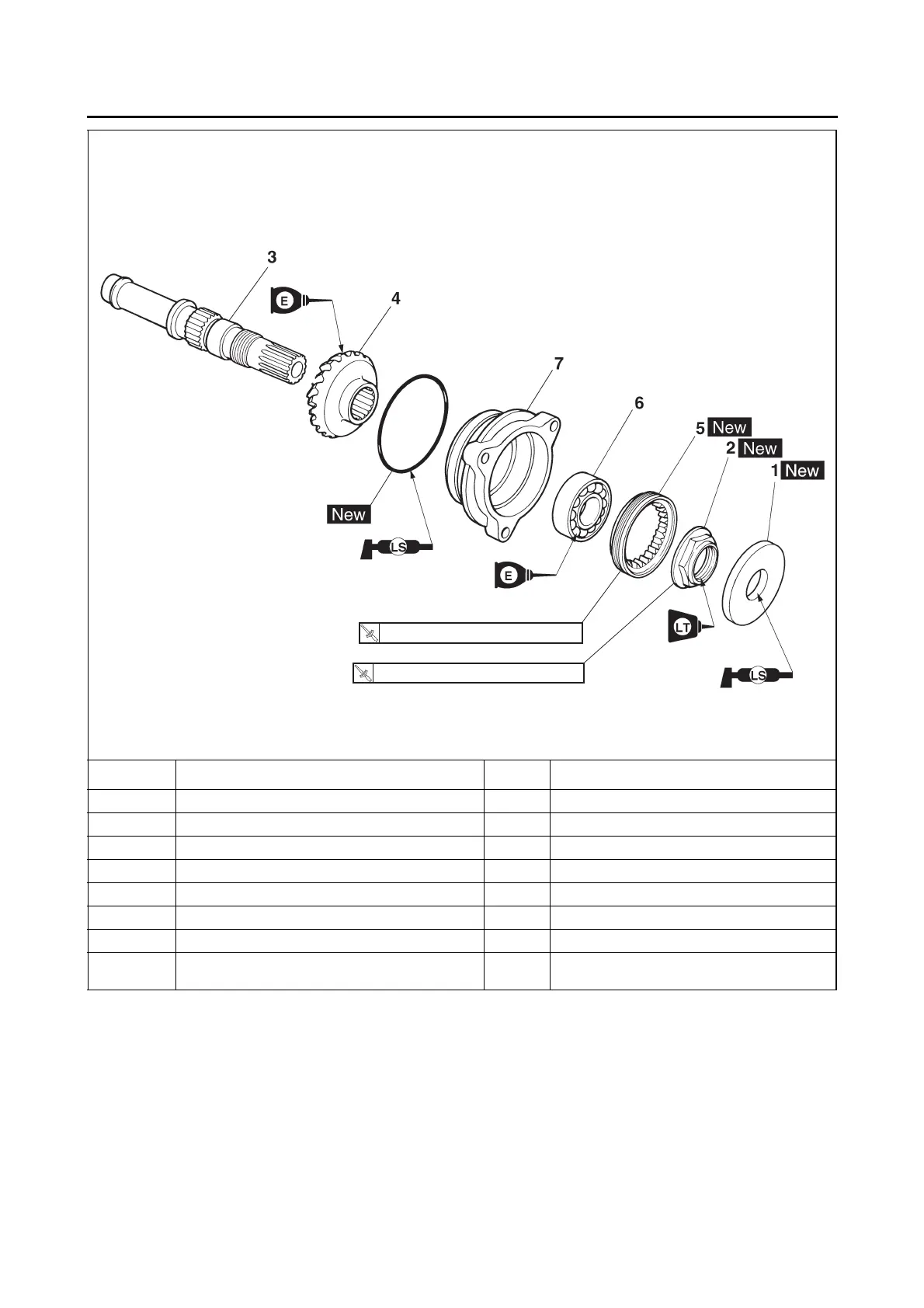

Disassembling the middle driven shaft assembly
Order Job/Parts to remove Q’ty Remarks
1 Oil seal 1
2 Middle driven pinion gear nut 1
3 Middle driven shaft 1
4 Middle driven pinion gear 1
5 Bearing retainer 1
6 Bearing 1
7 Middle driven shaft bearing housing 1
For assembly, reverse the disassembly pro-
cedure.
110 Nm (11.0 m
•
kg, 80 ft
•
lb)
T
.
R.
180 Nm (18.0 m
•
kg, 130 ft
•
lb)
T
.
R.
