PERIODIC MAINTENANCE
3-25

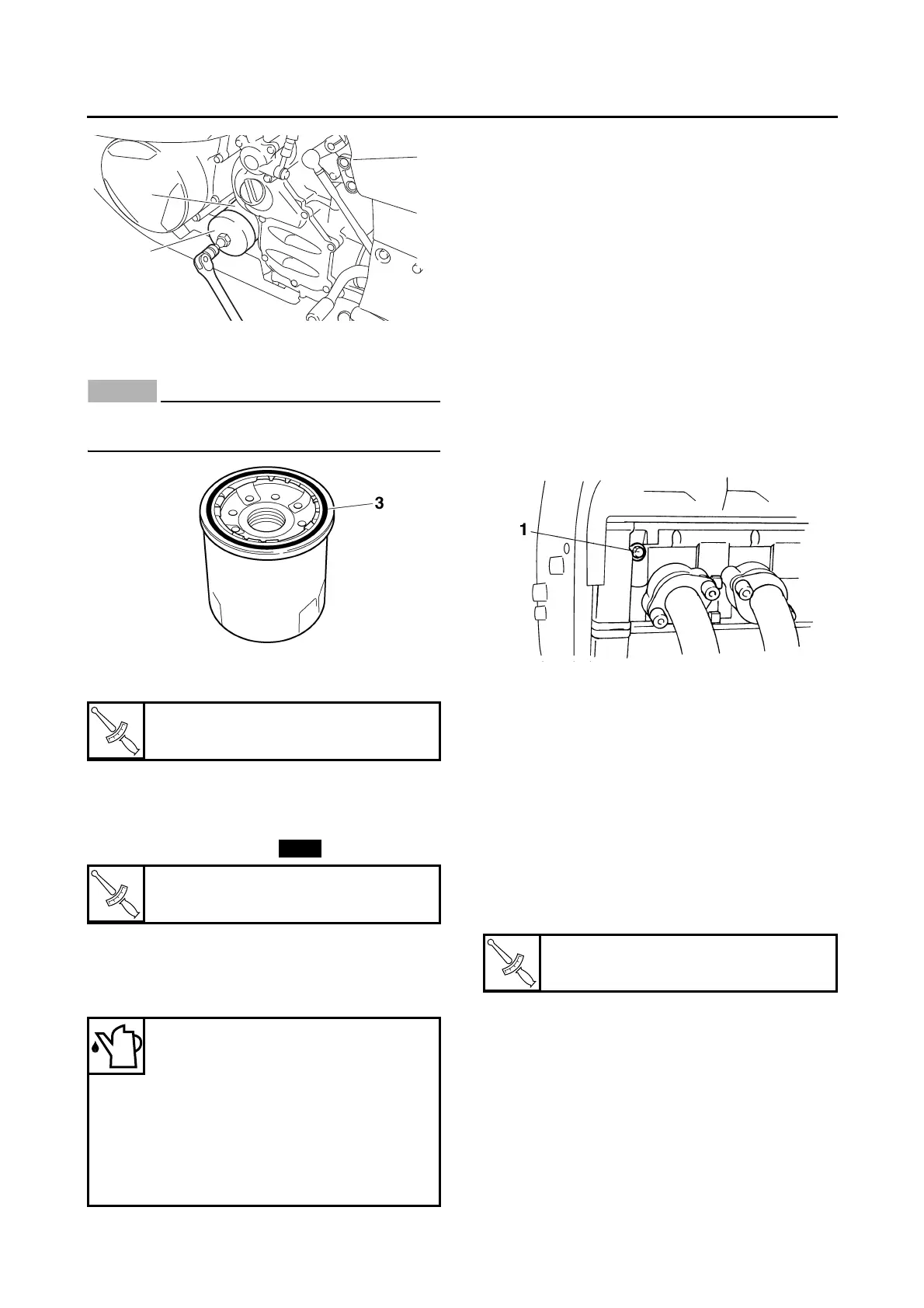

b. Lubricate the O-ring “3” of a new oil filter car-
tridge with a thin coat of engine oil.
ECA13390
Make sure the O-ring “3” is positioned cor-
rectly in the groove of the oil filter cartridge.
c. Tighten the new oil filter cartridge to specifi-
cation with the oil filter wrench.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲
6. Install:
• Engine oil drain bolt
(along with the gasket )
7. Fill:
• Crankcase
(with the specified amount of the recom-
mended engine oil)
8. Install:
• Engine oil filler cap
9. Start the engine, warm it up for several min-
utes, and then turn it off.
10.Check:
• Engine
(for engine oil leaks)
11.Check:
• Engine oil level
Refer to “CHECKING THE ENGINE OIL
LEVEL” on page 3-24.
12.Check:
• Engine oil pressure
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Remove the right side cowling.
Refer to “GENERAL CHASSIS” on page 4-1.
b. Slightly loosen the engine oil check bolt “1”.
c. Start the engine and keep it idling until engine
oil starts to seep from the engine oil check
bolt. If no engine oil comes out after one
minute, turn the engine off so that it will not
seize.
d. Check the engine oil passages, the oil filter
cartridge and the oil pump for damage or
leakage.
Refer to “OIL PUMP” on page 5-60.
e. Start the engine after solving the problem(s)
and check the engine oil pressure again.
f. Tighten the engine oil check bolt to specifica-
tion.
g. Install the right side cowling.
Refer to “GENERAL CHASSIS” on page 4-1.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
13.Reset the maintenance counter for the en-
gine oil.
Refer to “MULTI-FUNCTION METER UNIT”
on page 1-35.
Oil filter cartridge
17 Nm (1.7 m·kg, 12 ft·lb)
Engine oil drain bolt
43 Nm (4.3 m·kg, 31 ft·lb)
Engine oil quantity
Total amount
4.90 L (5.18 US qt, 4.31 Imp.qt)
Without oil filter cartridge re-
placement
3.80 L (4.02 US qt, 3.34 Imp.qt)
With oil filter cartridge replace-
ment
4.00 L (4.23 US qt, 3.52 Imp.qt)
Engine oil check bolt
15 Nm (1.5 m·kg, 11 ft·lb)
