Yamaha FJR1300A(D) - Page 260

FRONT FORK
4-83

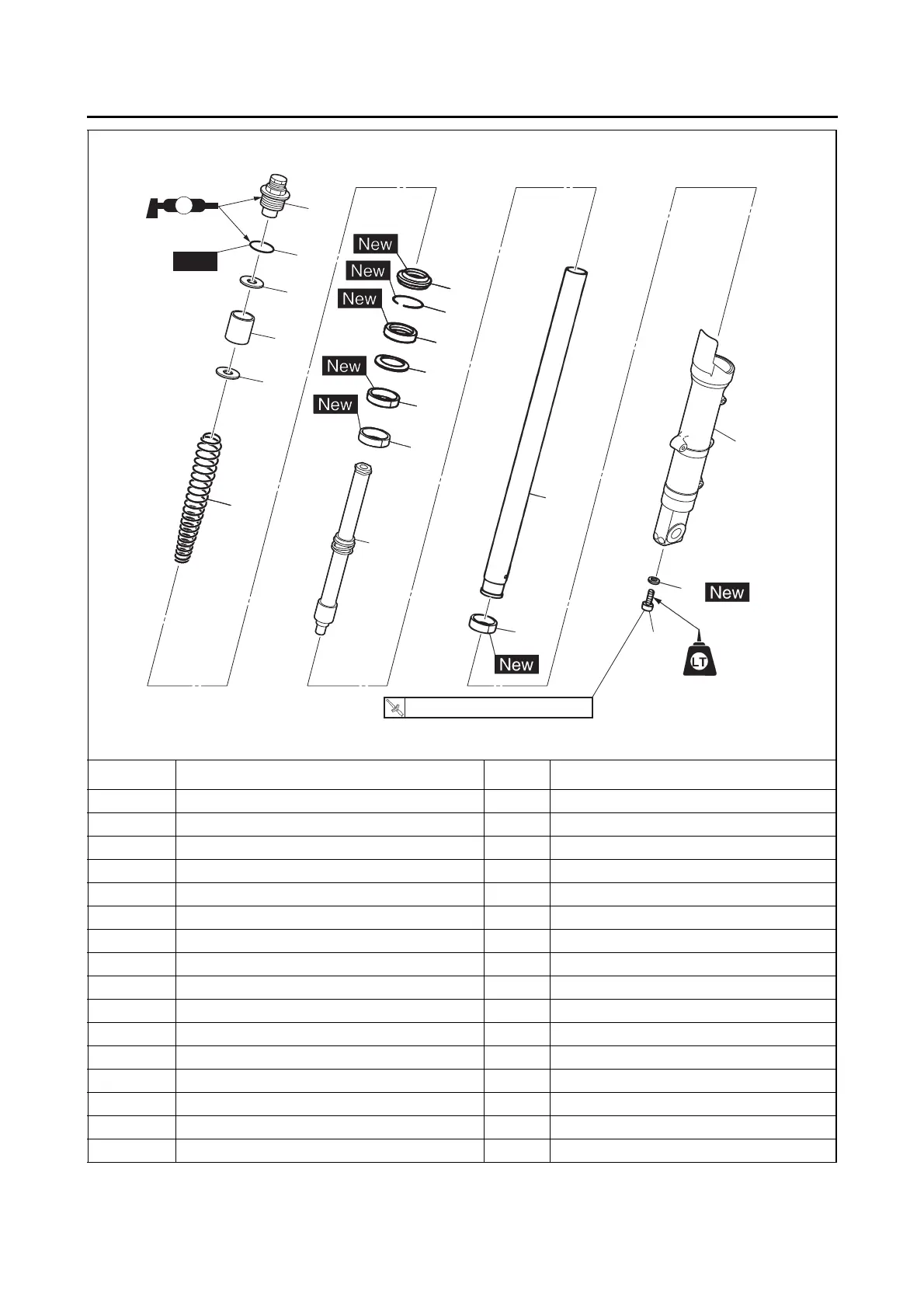

Disassembling the left front fork leg
Order Job/Parts to remove Q’ty Remarks
1 Cap bolt 1
2O-ring 1
3Washer 2
4 Spacer 1
5 Fork spring 1
6 Dust seal 1
7 Oil seal clip 1
8 Oil seal 1
9Washer 1
10 Damper rod assembly bolt 1
11 Copper washer 1
12 Damper rod assembly 1
13 Inner tube 1
14 Outer tube bushing 1 1 D = 52 mm (2.05 in), l = 12 mm (0.47 in)
15 Outer tube bushing 2 1 D = 51 mm (2.01 in), l = 15 mm (0.59 in)
16 Inner tube bushing 1
New
LS
17
16
15
14
13
12
10
11
9
8
7
6
5
4
3
3
2
1
35 Nm (3.5 m
•
kg, 25 ft
•
Ib)
T
.R
.
