Yamaha FJR1300A(D) - Page 258

HANDLEBARS
4-81

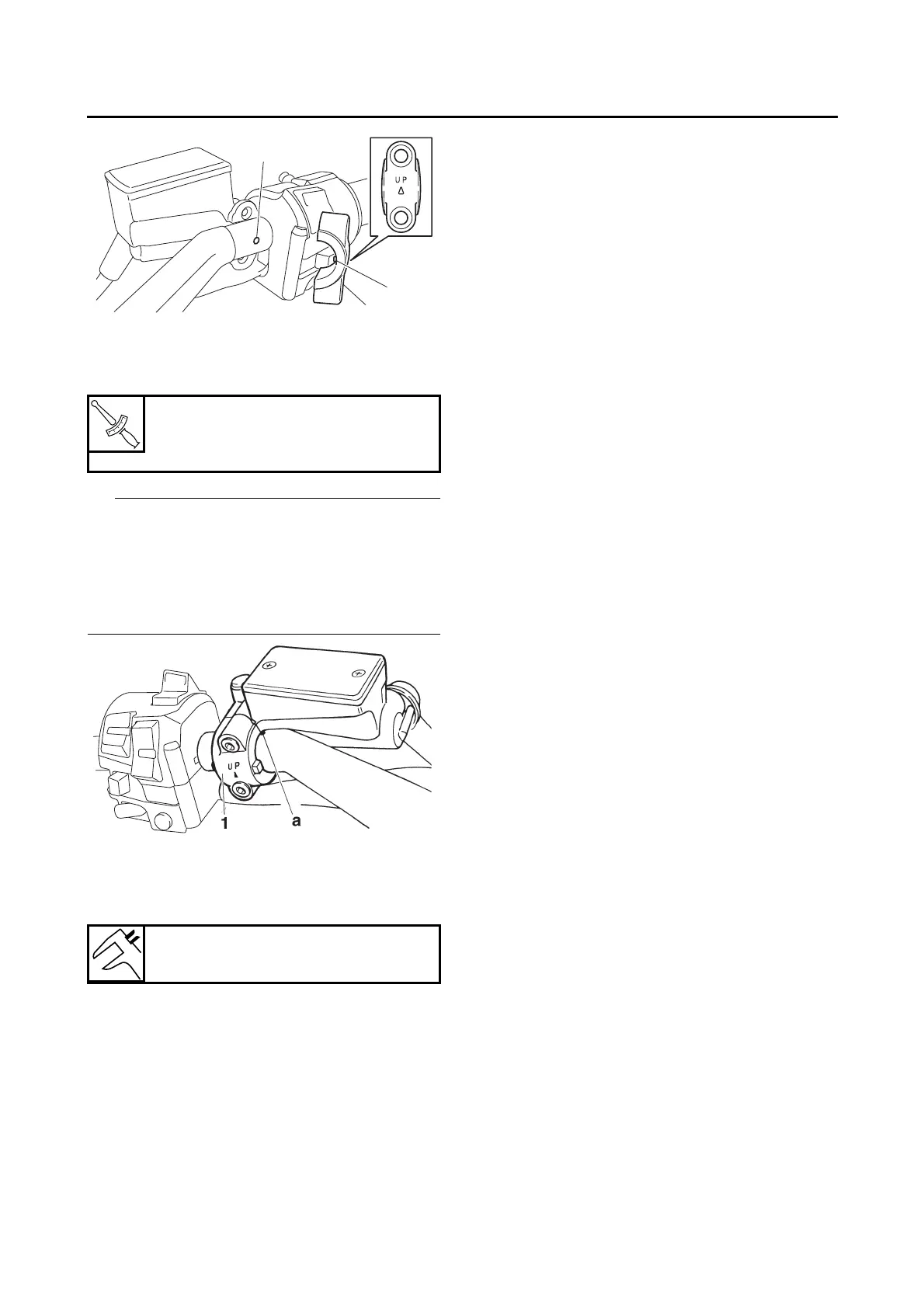

10.Install:
• Clutch master cylinder assembly
• Clutch master cylinder holder “1”
TIP
• Install the clutch master cylinder holder with
the “UP” mark facing up.
• Align the mating surfaces of the clutch master
cylinder holder with the punch mark “a” on the
left handlebar.
• First, tighten the upper bolt, then the lower bolt.
11.Adjust:
• Throttle grip free play
Refer to “CHECKING THE THROTTLE GRIP
OPERATION” on page 3-31.
T
R
.
.
Clutch master cylinder holder
bolt
10 Nm (1.0 m·kg, 7.2 ft·lb)
Throttle grip free play
3.0–5.0 mm (0.12–0.20 in)
b
a
1
