FRONT FORK
4-93

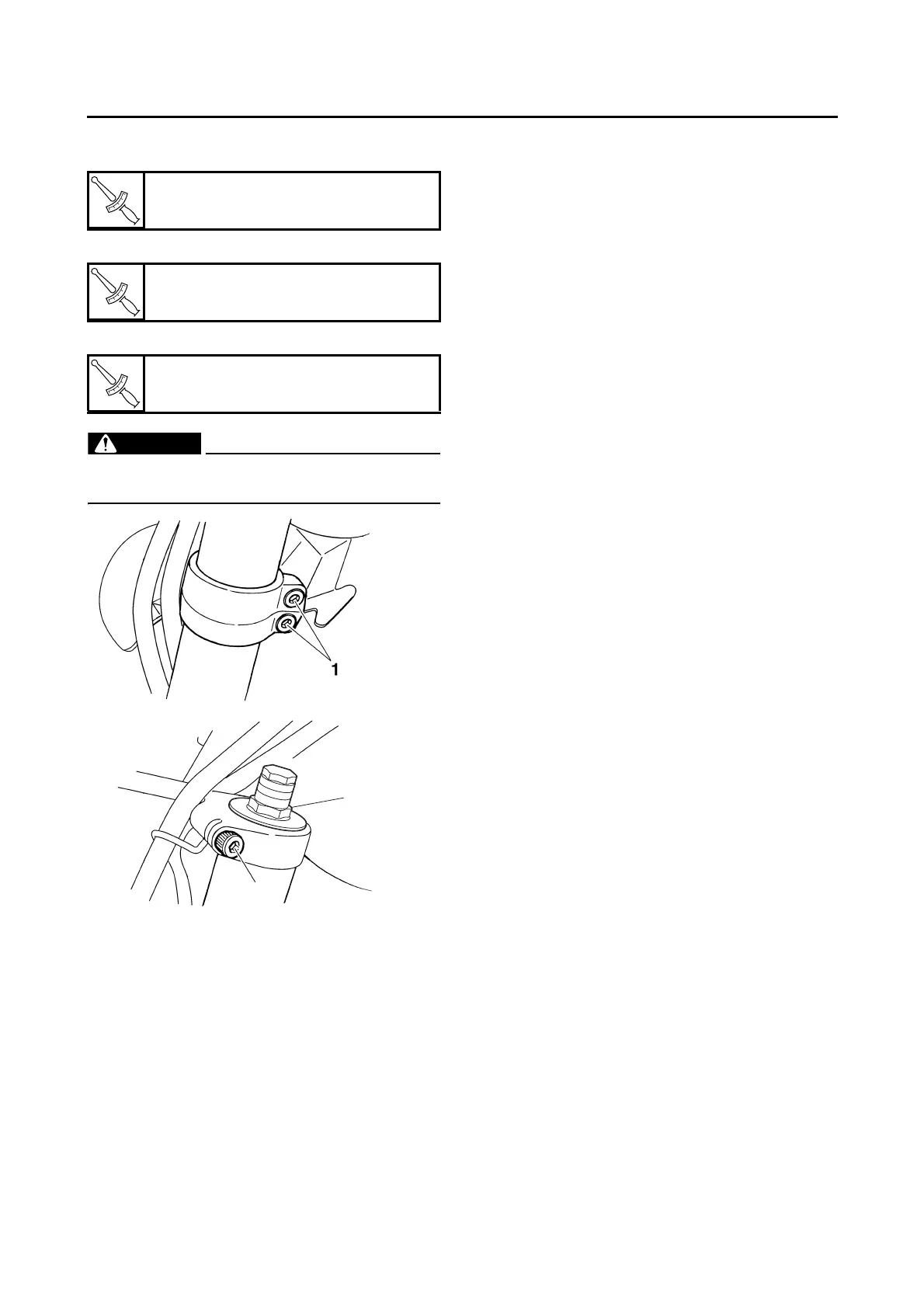

2. Tighten:
• Lower bracket pinch bolts “1”
• Cap bolt “2”
• Upper bracket pinch bolt “3”
WARNING
EWA13680
Make sure the brake hoses are routed prop-
erly.
3. Adjust:
• Spring preload
• Rebound damping (right side only)
• Compression damping (right side only)
Refer to “ADJUSTING THE FRONT FORK
LEGS” on page 3-21.
T
R
.
.
Lower bracket pinch bolt
23 Nm (2.3 m·kg, 17 ft·lb)
T
R
.
.
Cap bolt
25 Nm (2.5 m·kg, 18 ft·lb)
T
R
.
.
Upper bracket pinch bolt
26 Nm (2.6 m·kg, 19 ft·lb)
2
3
