GENERAL CHASSIS
4-17

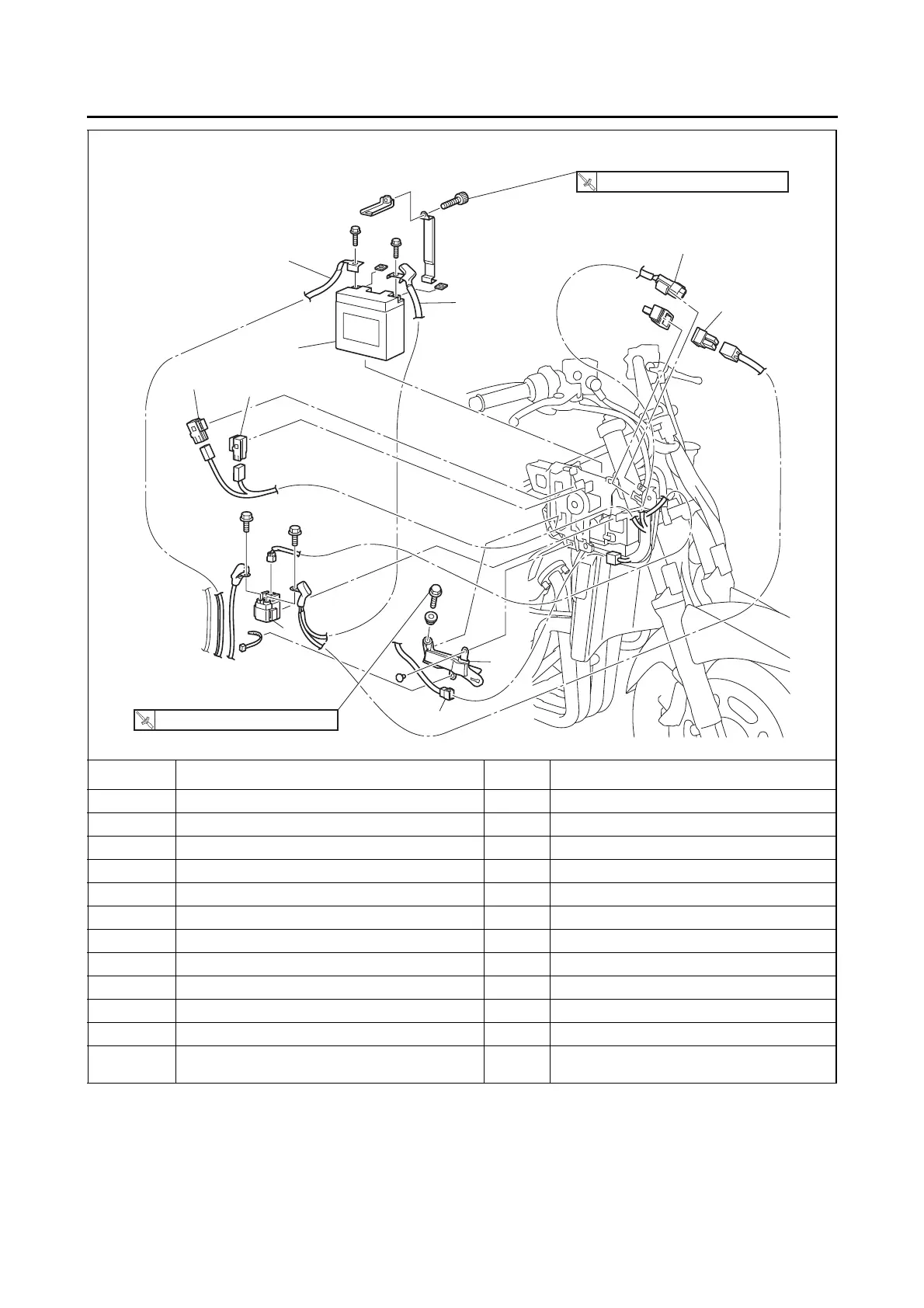

Removing the electrical components tray 1/2
Order Job/Parts to remove Q’ty Remarks
Right side cowling Refer to “Removing the side cowlings”.
1 Negative battery lead 1 Disconnect.
2 Positive battery lead 1 Disconnect.
3Battery 1
4 Main fuse 1
5 ABS test coupler 1
6Starter relay 1
7 Radiator fan motor relay 1
8 Headlight relay (on/off) 1
9 Right radiator fan motor coupler 1 Disconnect.
10 Air guide 1
For installation, reverse the removal proce-
dure.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T.
R
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
.R
.
3
7
6
9
10
1
2
4
5
8
To Next Page
