Yamaha FJR1300A(D) - Page 195

GENERAL CHASSIS
4-18

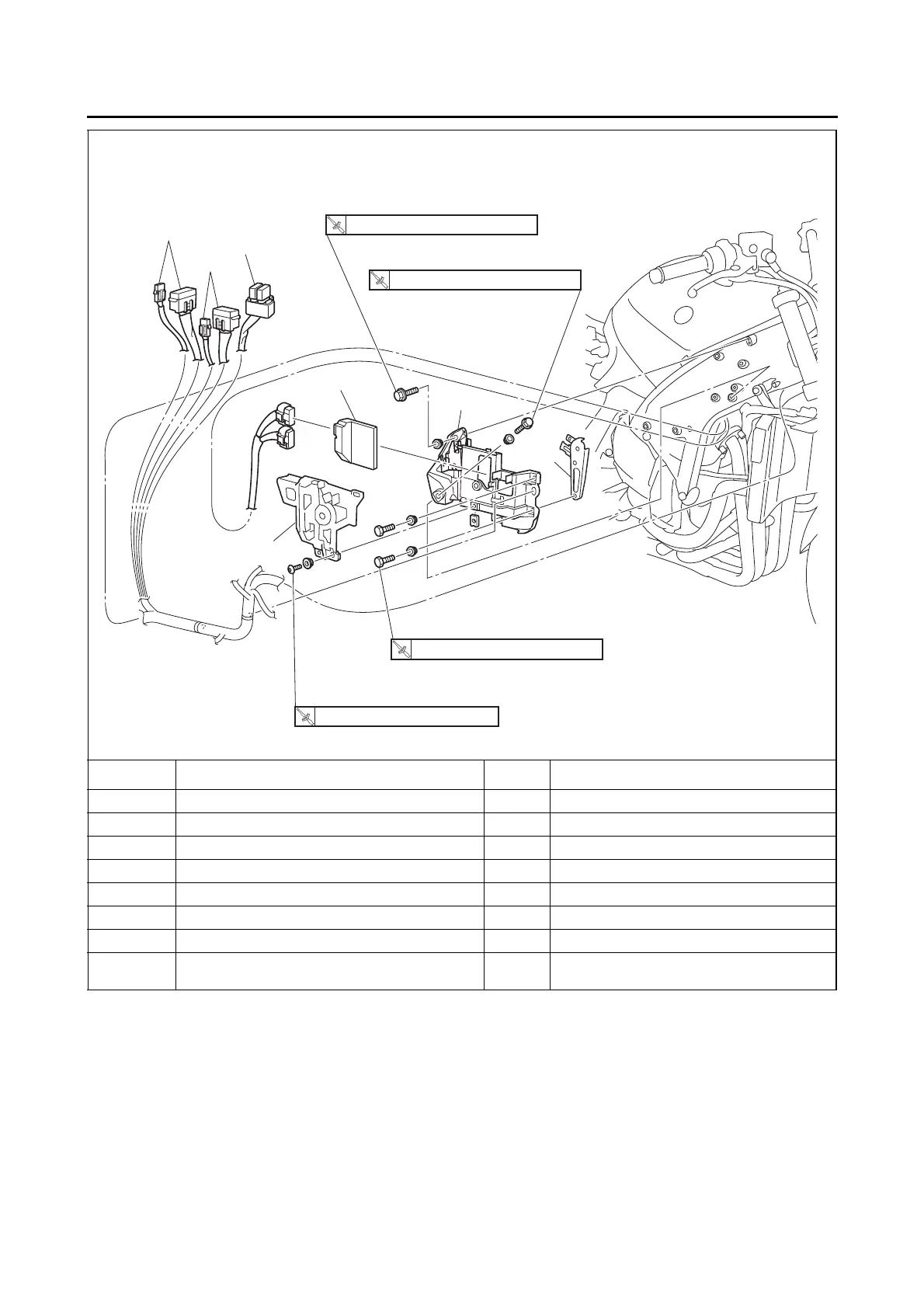

Removing the electrical components tray 2/2
Order Job/Parts to remove Q’ty Remarks
1 ECU cover 1
2 Fuse box 1/Windshield drive system fuse 1/1
3 Fuse box 2/Hazard lighting fuse 1/1
4 Cruise control system fuse/Brake light fuse 1/1
5 ECU (engine control unit) 1
6 Electrical components tray 1
7 Electrical components tray bracket 1
For installation, reverse the removal proce-
dure.
5
4
2
3
6
1
7
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
.
R.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
.
R.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T.
R
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
.
R
.
