PERIODIC MAINTENANCE
3-28

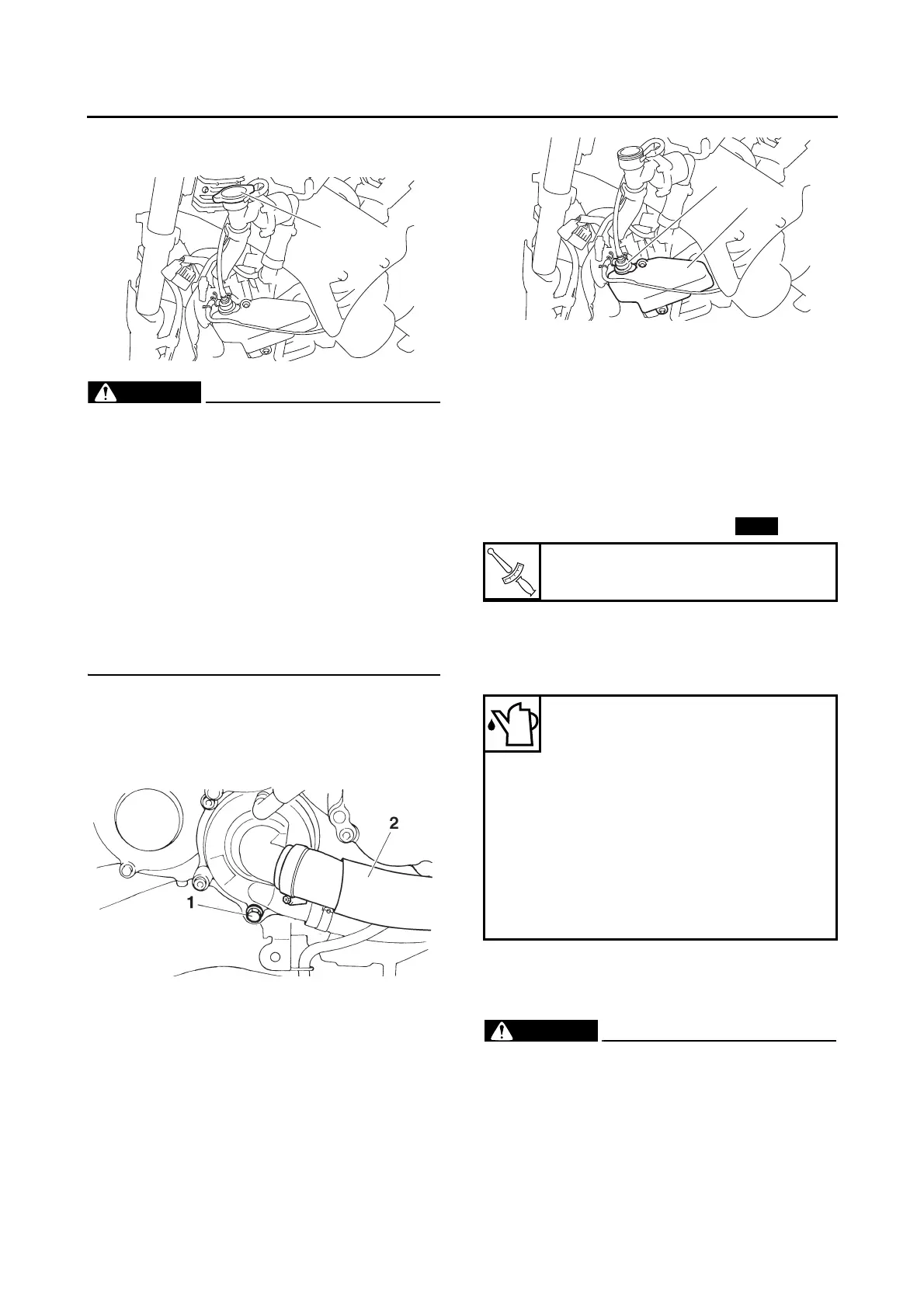

2. Remove:
• Radiator cap “1”
EWA13030
A hot radiator is under pressure. Therefore,
do not remove the radiator cap when the en-
gine is hot. Scalding hot fluid and steam may
be blown out, which could cause serious in-
jury. When the engine has cooled, open the
radiator cap as follows:
Place a thick rag or a towel over the radiator
cap and slowly turn the radiator cap counter-
clockwise toward the detent to allow any re-
sidual pressure to escape. When the hissing
sound has stopped, press down on the radi-
ator cap and turn it counterclockwise to re-
move.
3. Remove:
• Coolant drain bolt (water pump) “1”
(along with the copper washer)
4. Disconnect:
• Radiator outlet hose “2”
5. Drain:
• Coolant
(from the engine and radiator)
6. Remove:
• Coolant reservoir “1”
• Coolant reservoir cap “2”
7. Drain:
• Coolant
(from the coolant reservoir)
8. Install:
• Coolant reservoir
9. Connect:
• Radiator outlet hose
10.Install:
• Coolant drain bolt (water pump)
(along with the copper washer )
11.Fill:
• Cooling system
(with the specified amount of the recom-
mended coolant)
Handling notes for coolant
Coolant is potentially harmful and should be
handled with special care.
EWA13040
• If coolant splashes in your eyes, thorough-
ly wash them with water and consult a doc-
tor.
• If coolant splashes on your clothes, quickly
wash it away with water and then with soap
and water.
Coolant drain bolt (water pump)
10 Nm (1.0 m·kg, 7.2 ft·lb)
Recommended antifreeze
High-quality ethylene glycol anti-
freeze containing corrosion in-
hibitors for aluminum engines
Mixing ratio
1:1 (antifreeze:water)
Radiator capacity (including all
routes)
2.60 L (2.75 US qt, 2.29 Imp.qt)
Coolant reservoir capacity (up
to the maximum level mark)
0.25 L (0.26 US qt, 0.22 Imp.qt)
