Yamaha FJR1300A(D) - Page 182

GENERAL CHASSIS
4-5

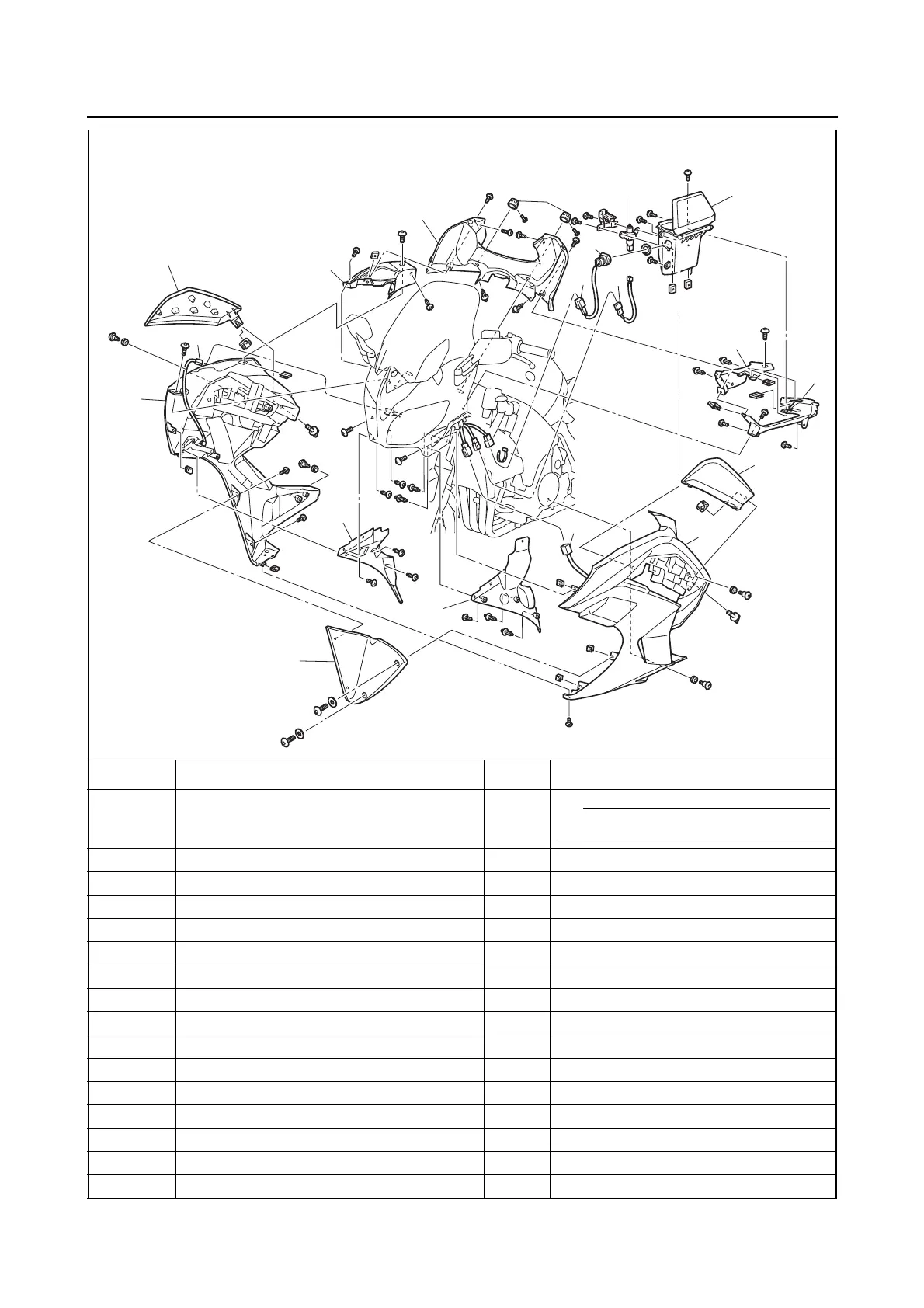

Removing the side cowlings
Order Job/Parts to remove Q’ty Remarks
TIP
Open the accessory box lid.
1 Headlight beam adjusting knob 2
2 Front cowling inner panel 1
3 Right upper inner panel 1
4 Right lower inner panel 1
5 Right side panel 1
6 Right side cowling 1
7 Front right turn signal light coupler 1 Disconnect.
8 Bottom cowling 1
9 Left lower inner panel 1
10 Left side panel 1
11 Left side cowling 1
12 Front left turn signal light coupler 1 Disconnect.
13 Accessory box solenoid sub-lead coupler 1 Disconnect.
14 Auxiliary DC jack coupler 1 Disconnect.
15 Left upper inner panel 1 1
5
3
6
7
4
8
9
11
12
10
19
15
16
1
17
2
13
18
14
