Yamaha FJR1300A(D) - Page 219

FRONT BRAKE
4-42

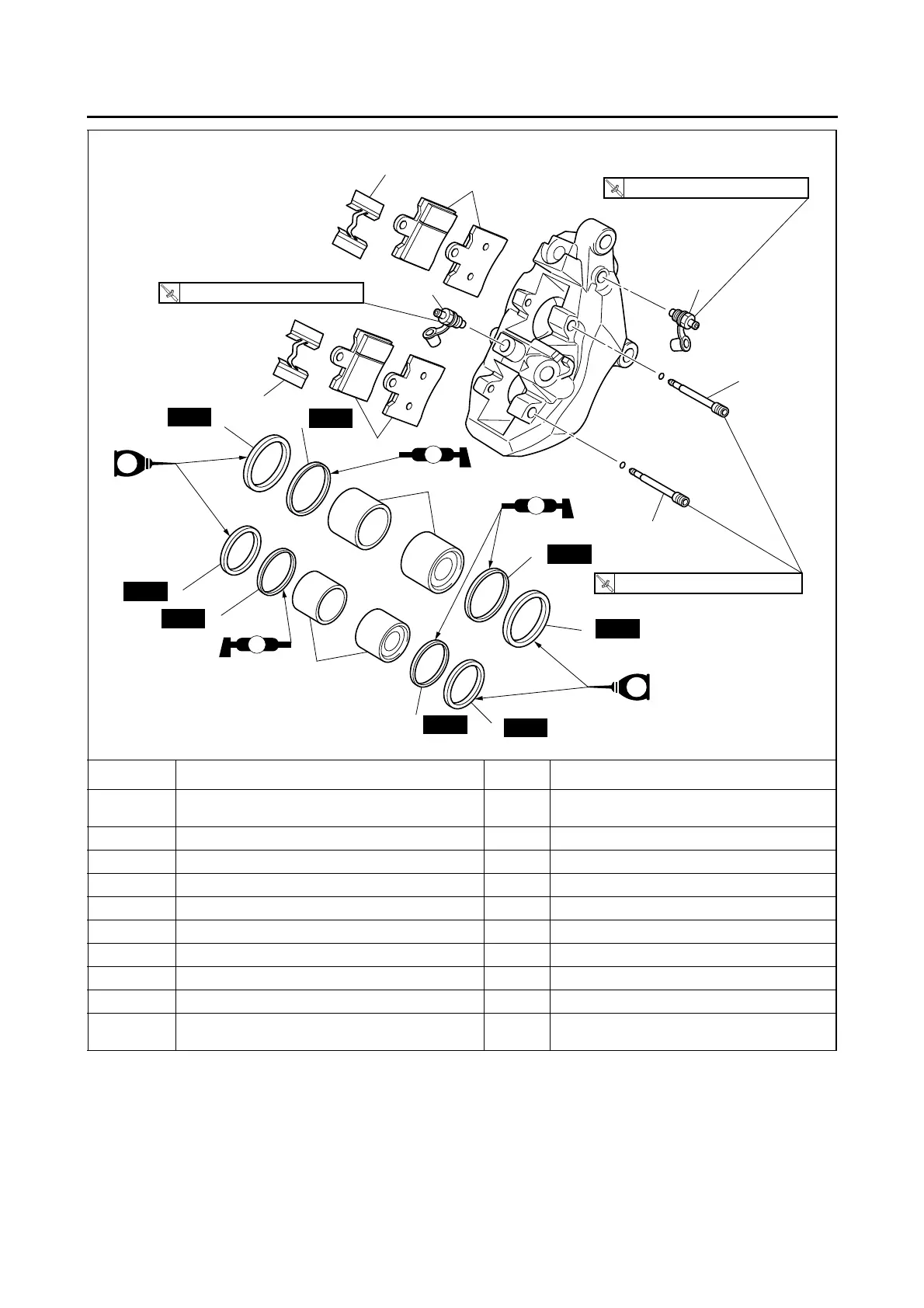

Disassembling the front brake calipers
Order Job/Parts to remove Q’ty Remarks
The following procedure applies to both of
the front brake calipers.
1 Brake pad bolt 2
2 Brake pad spring 2
3 Front brake pad 4
4 Brake caliper piston 4
5 Brake caliper piston dust seal 4
6 Brake caliper piston seal 4
7 Bleed screw 1
8 Bleed screw 1 Right side only.
For assembly, reverse the disassembly pro-
cedure.
