REAR BRAKE
4-54

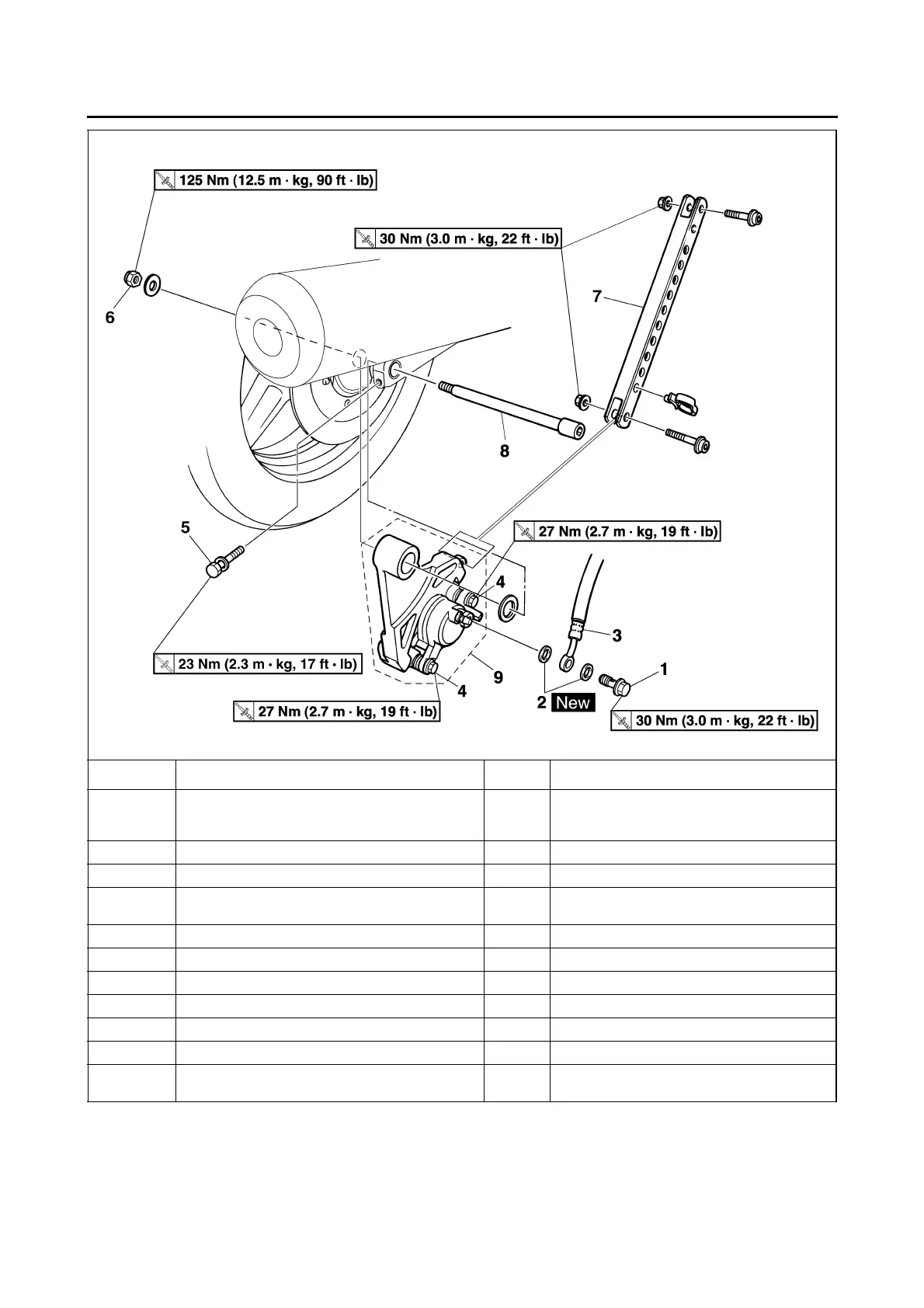

Removing the rear brake caliper
Order Job/Parts to remove Q’ty Remarks
Brake fluid
Drain.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM (ABS)” on page 3-14.
1 Brake hose union bolt 1
2 Copper washer 2
3
Brake hose (proportioning valve to rear brake
caliper)
1
4 Rear brake caliper bolt 2 Loosen.
5 Rear wheel axle pinch bolt 1 Loosen.
6 Rear wheel axle nut 1
7 Brake torque rod 1
8 Rear wheel axle 1
9 Rear brake caliper assembly 1
For installation, reverse the removal proce-
dure.
To Next Page
