ABS (ANTI-LOCK BRAKE SYSTEM)
4-67

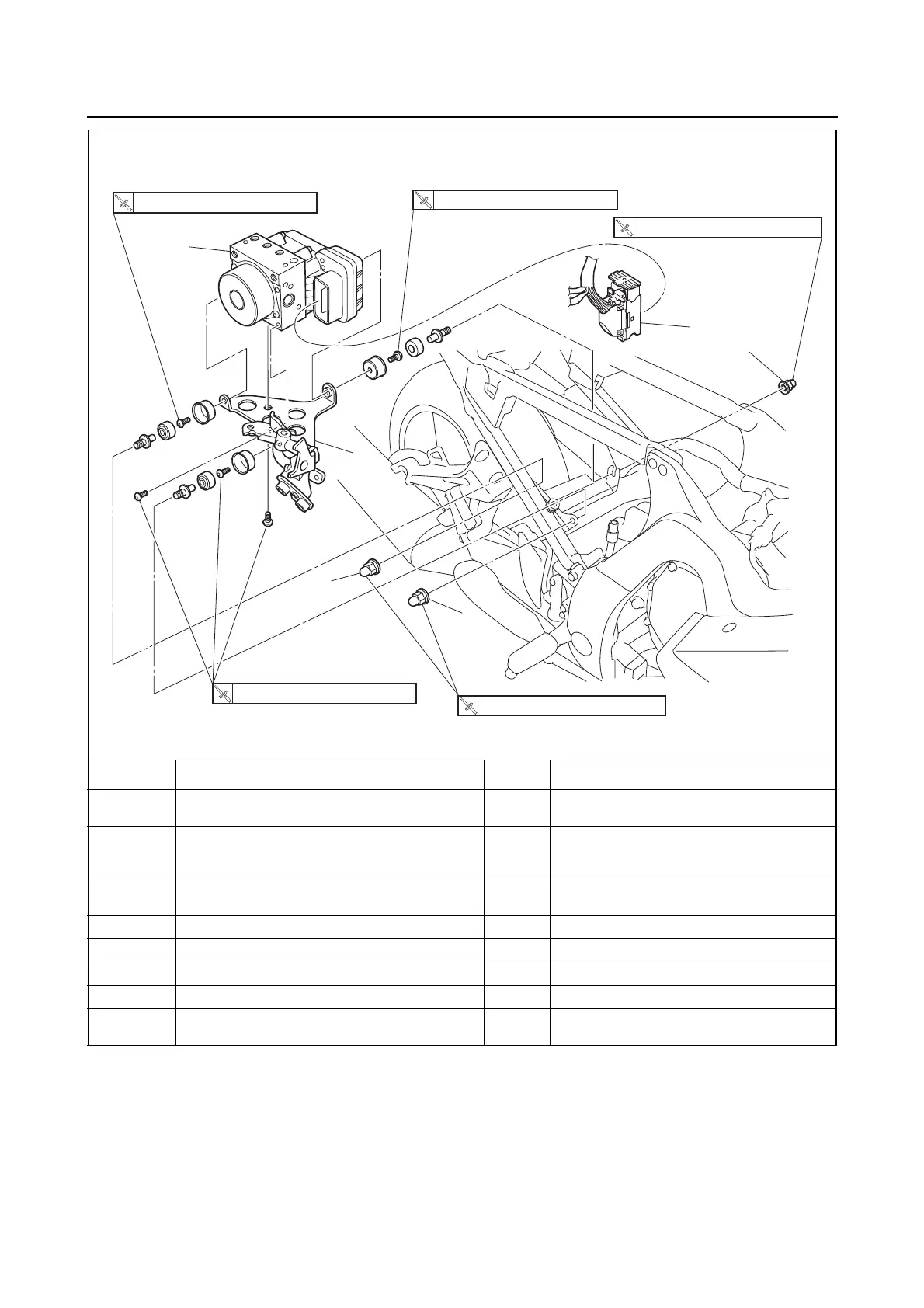

Removing the hydraulic unit assembly
Order Job/Parts to remove Q’ty Remarks
Rear cowlings/Side covers/Air shroud
Refer to “GENERAL CHASSIS” on page
4-1.
Brake fluid
Drain.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM (ABS)” on page 3-14.
Rear fender/Metering valve/Proportioning
valve/Brake pipes
Refer to “ABS (ANTI-LOCK BRAKE SYS-
TEM)” on page 4-63.
1 ABS ECU coupler 1 Disconnect.
2 Cap nut 3
3 Hydraulic unit assembly bracket 1
4 Hydraulic unit assembly 1
For installation, reverse the removal proce-
dure.
