ABS (ANTI-LOCK BRAKE SYSTEM)
4-74

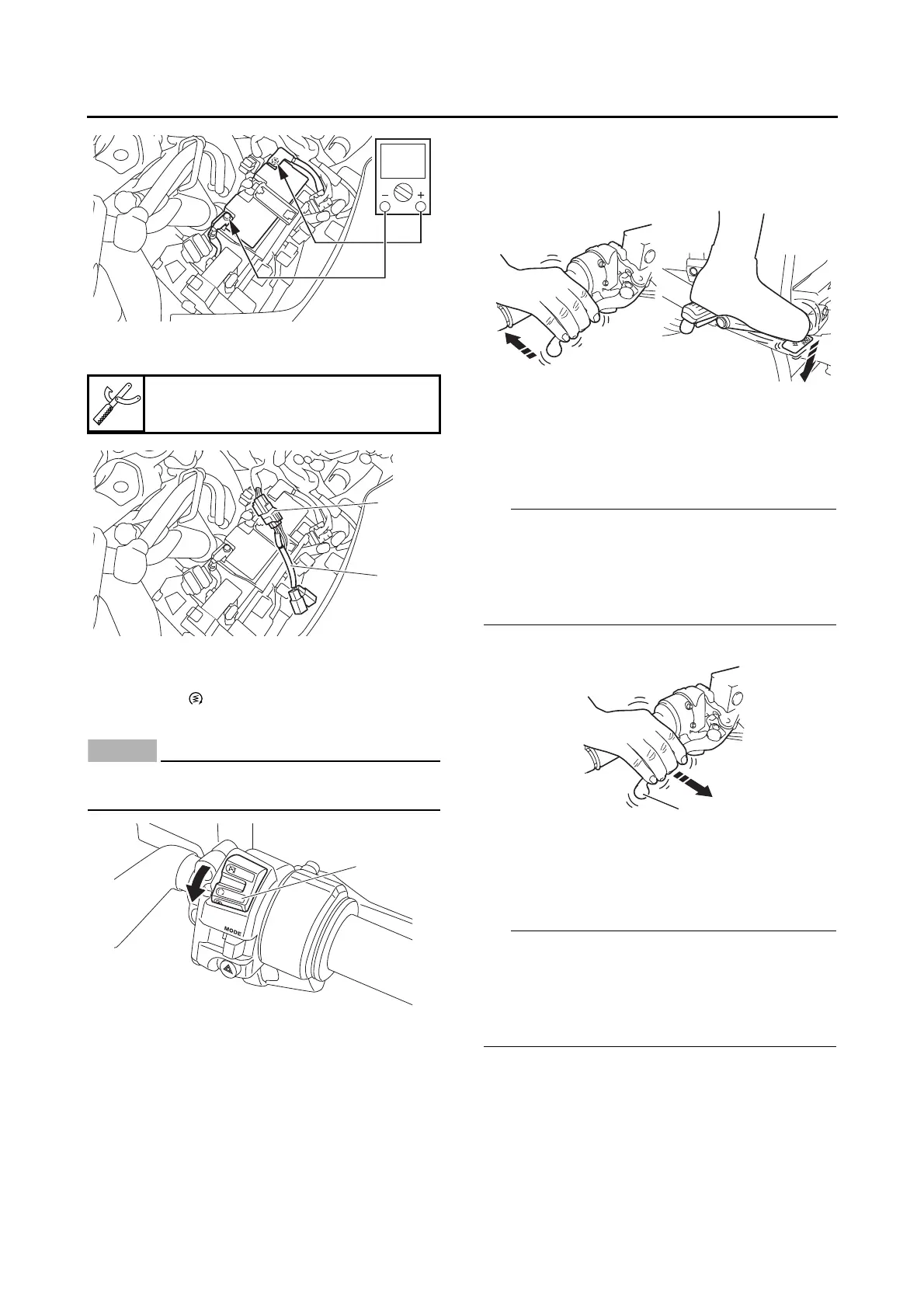

5. Connect the test coupler adapter “1” to the
ABS test coupler “2”.
6. Extend the sidestand.
7. Turn the main switch to “ON”.
8. Push the “ ” side of the start/engine stop
switch “1” for at least 4 seconds.
ECA14790
Do not operate the brake lever or the brake
pedal.
9. After releasing the start/engine stop switch,
operate the brake lever and the brake pedal
simultaneously.
10.A reaction-force pulsating action is generated
in the brake lever “1” 0.5 second after the
brake lever and the brake pedal are operated
simultaneously and continues for approxi-
mately 1.5 seconds.
• The reaction-force pulsating action consists of
quick pulses.
• Be sure to continue operating the brake lever
and brake pedal even after the pulsating action
has stopped.
11.After the pulsating action has stopped in the
brake lever, it is generated in the brake pedal
“1” 0.5 second later and continues for approx-
imately 2 seconds.
• The reaction-force pulsating action consists of
quick pulses.
• Be sure to continue operating the brake lever
and brake pedal even after the pulsating action
has stopped.
Test coupler adapter
90890-03149
1
To Next Page
