Yamaha FJR1300A(D) - Page 267

FRONT FORK
4-90

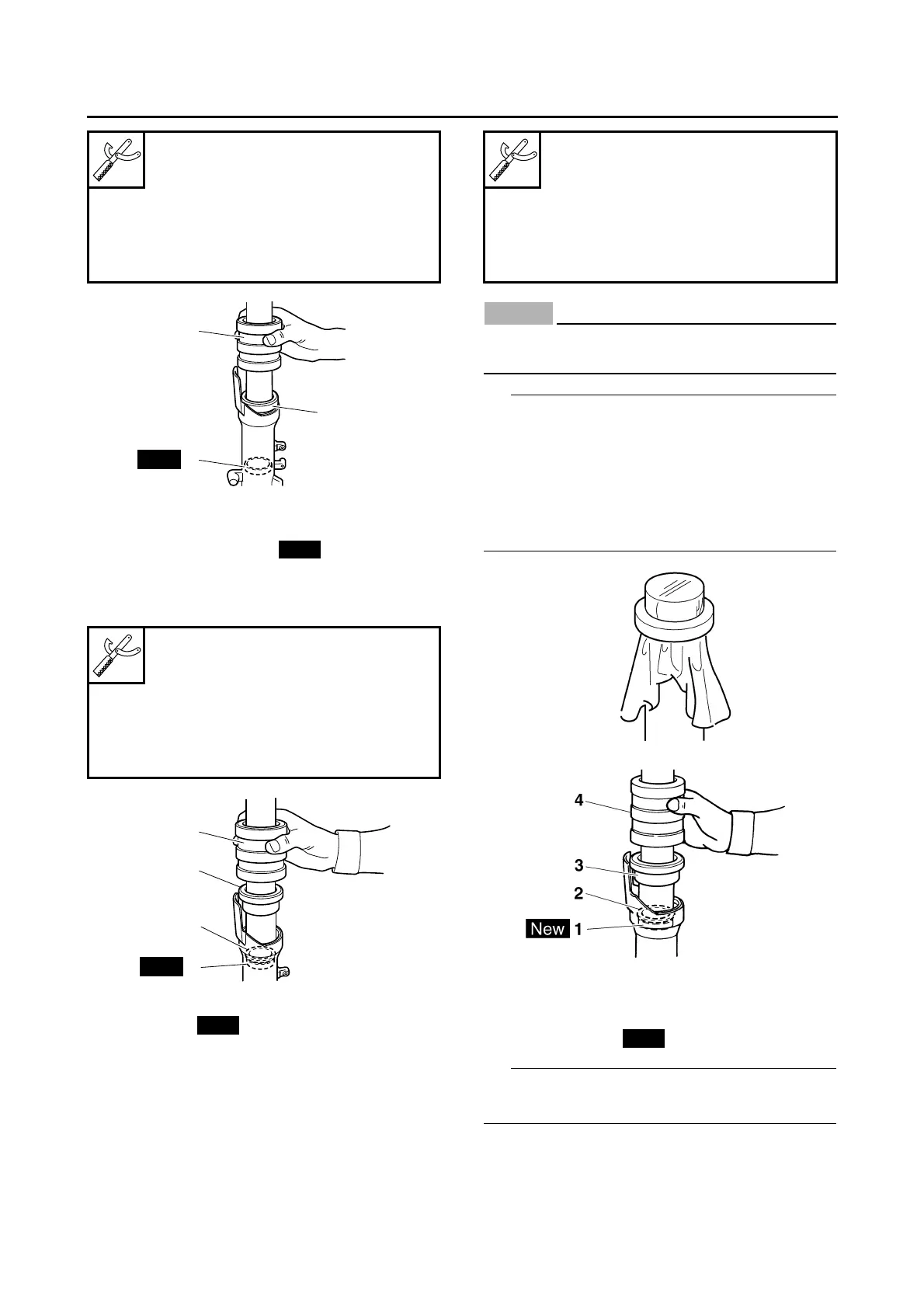

5. Install:
• Outer tube bushing 1 (D = 52 mm (2.05 in), l
= 12 mm (0.47 in)) “1”
• Washer “2”
(with the slide metal installer “3” and fork seal
driver (weight) “4”)
6. Install:
• Oil seal “1”
• Suitable washer “2” (ex: 4SV-23115-00)
(with the slide metal installer “3” and fork seal
driver (weight) “4”)
NOTICE
ECA14220
Make sure the numbered side of the oil seal
faces up.
TIP
• Before installing the oil seal, lubricate its lips
with lithium-soap-based grease.
• Lubricate the outer surface of the inner tube
with fork oil.
• Before installing the oil seal, cover the top of
the front fork leg with a plastic bag to protect
the oil seal during installation.
7. Remove:
• Suitable washer
8. Install:
• Oil seal clip “1”
TIP
Adjust the oil seal clip so that it fits into the outer
tube’s groove.
Slide metal installer
90890-01508
YM-01508
Fork seal driver
90890-01502
Fork seal driver (48)
YM-A0948
Slide metal installer
90890-01508
YM-01508
Fork seal driver
90890-01502
Fork seal driver (48)
YM-A0948
3
2
1
New
New
4
3
2
1
New
New
Slide metal installer
90890-01508
YM-01508
Fork seal driver
90890-01502
Fork seal driver (48)
YM-A0948
New
