Example:
If the final gear case is marked “51”, the ring
gear bearing housing is marked “35”, the ring
gear is marked “+ 05”, and “f” is 13.00:
Therefore, the calculated ring gear shim
thickness is 0.41 mm.
Shim sizes are supplied in the following thick-
nesses.
Since the ring gear shims are only available
in 0.10 mm increments, round off the hun-
dredths digit.
In the example above, the calculated ring
gear shim thickness is 0.41 mm. The chart in-
structs you to round off the 1 to 0. Thus, you
should use a 0.40 mm ring gear shim.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲

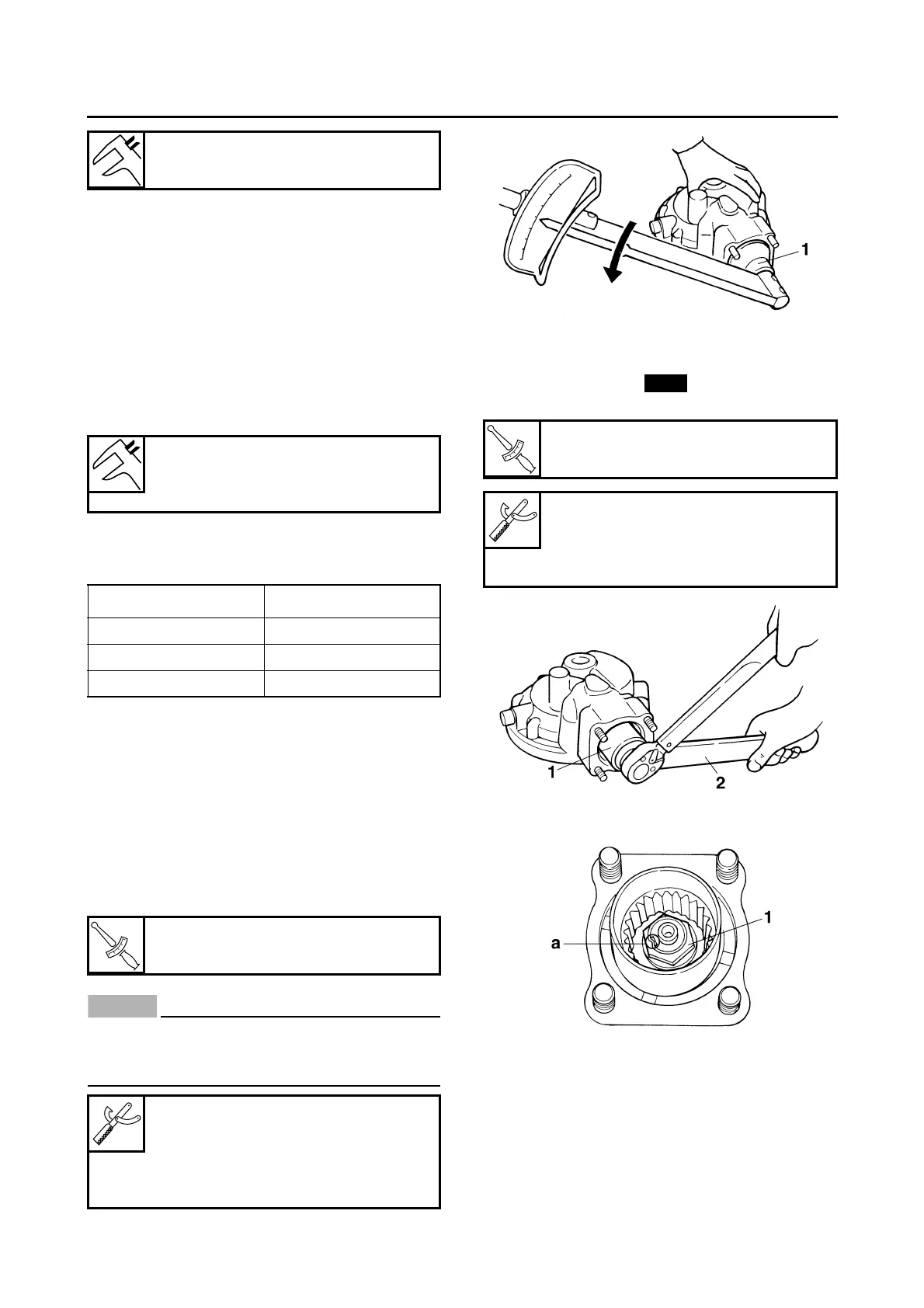

2. Install:
• Shims (as calculated)
• Final drive pinion gear
• Bearing retainer
(with the bearing retainer wrench “1”)
NOTICE
ECA14350
The bearing retainer has left-hand threads.
To tighten the bearing retainer, turn it coun-
terclockwise.
3. Install:
• Coupling gear “1”
• Coupling gear nut
(with the coupling gear/middle shaft tool “2”)
4. Stake the coupling gear nut “1” at a cutout “a”
in the final drive pinion gear.
5. Install:
• Ring gear bearing housing
(along with the ring gear, but without the
thrust washer)
Ring gear bearing thickness
13.00 mm (0.51 in)
B = 45.51 + 3.35 - 35.45 - 13
=0.41
Ring gear shims
Thickness (mm)
0.25 0.30 0.40 0.50
Hundredth Rounded value
0, 1, 2 0
3, 4, 5, 6, 7 5
8, 9 10
T
R
.
.
Bearing retainer
110 Nm (11.0 m·kg, 80 ft·lb)
Bearing retainer wrench
90890-04050
Pinion bearing retainer & remov-
er
YM-04050
T
R
.
.
Coupling gear nut
110 Nm (11.0 m·kg, 80 ft·lb)
Coupling gear/middle shaft tool
90890-01229
Gear holder
YM-01229
New
