ELECTRIC STARTER
5-40

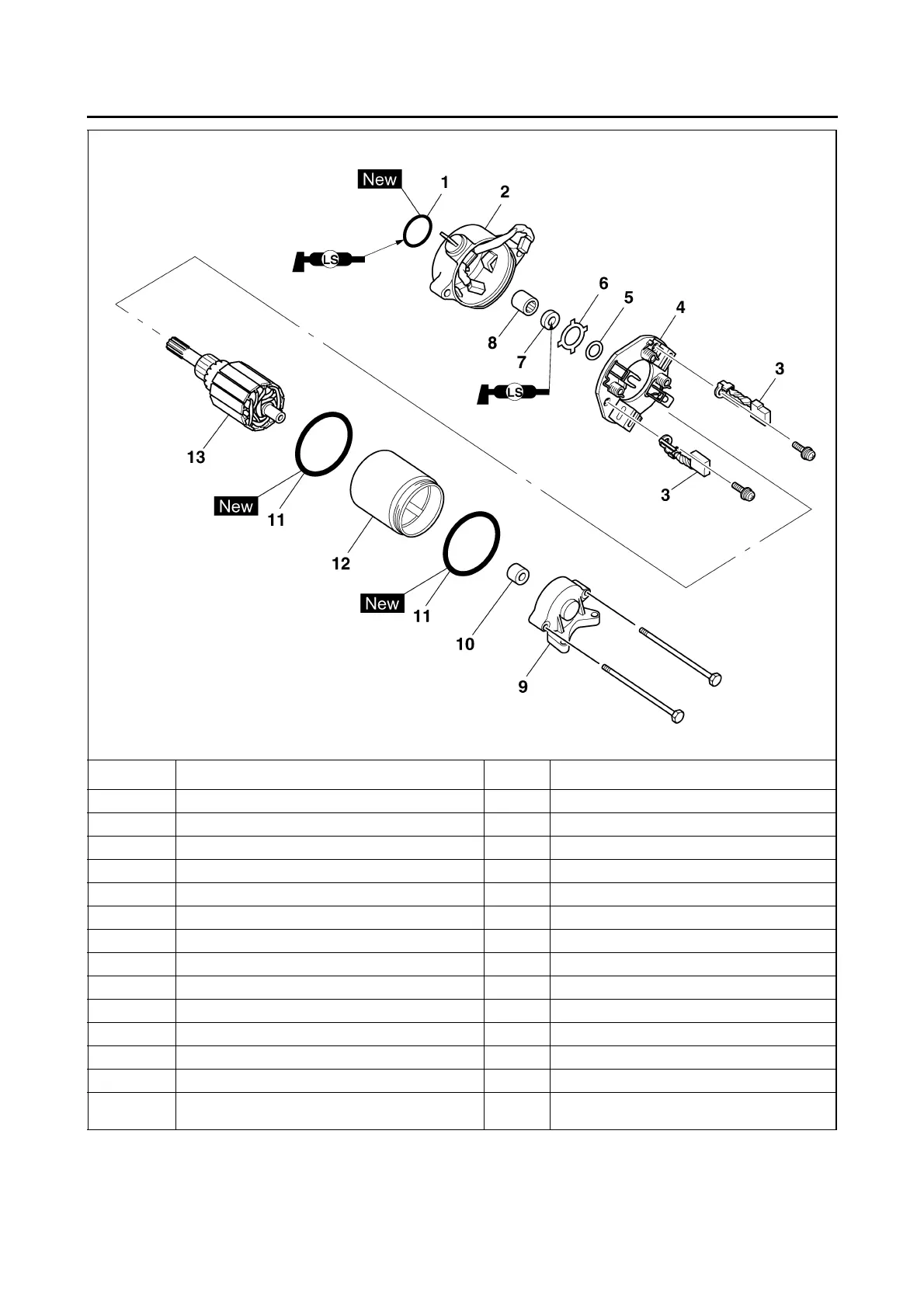

Disassembling the starter motor
Order Job/Parts to remove Q’ty Remarks
1O-ring 1
2 Starter motor front cover 1
3 Brush 2
4 Brush seat (along with brushes) 1
5Washer 1
6 Lock washer 1
7 Oil seal 1
8 Bearing 1
9 Starter motor rear cover 1
10 Collar 1
11 O-ring 2
12 Starter motor yoke 1
13 Armature assembly 1
For assembly, reverse the disassembly pro-
cedure.
