Yamaha FJR1300A(D) - Page 345

CLUTCH
5-44

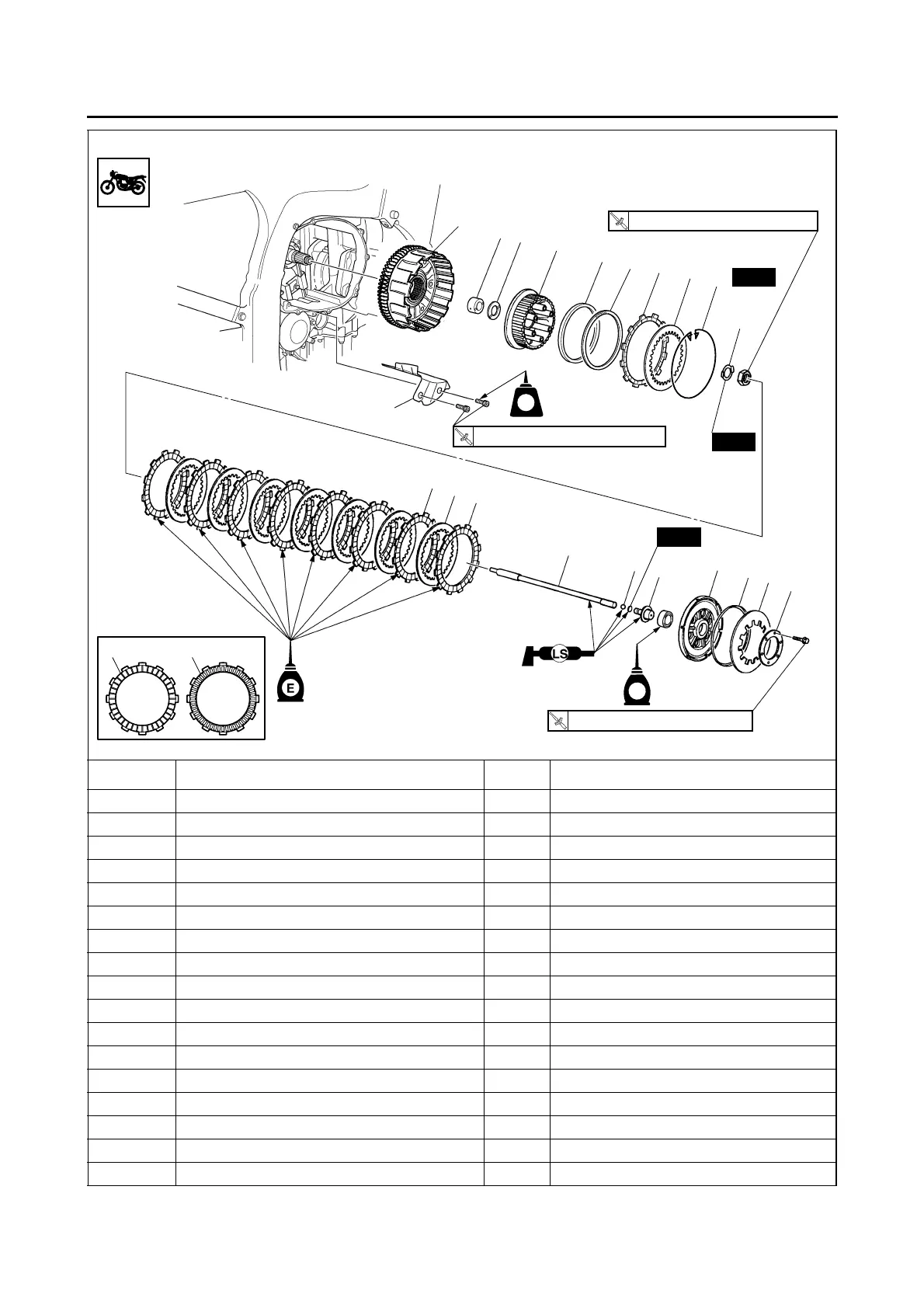

Removing the clutch
Order Job/Parts to remove Q’ty Remarks
Rear balancer Refer to “BALANCERS” on page 5-106.
1 Oil guide plate 1
2 Clutch spring plate retainer 1
3 Clutch spring plate 1
4 Clutch spring plate seat 1
5 Pressure plate 1
6 Short clutch push rod 1
7Ball 1
8 Long clutch push rod 1
9 Friction plate 1 1 Inside diameter: 124 mm (4.88 in)
10 Clutch plate 7
11 Friction plate 2 7 Inside diameter: 124 mm (4.88 in)
12 Lock washer 1
13 Wire circlip 1
14 Clutch plate 1
15 Friction plate 3 1 Inside diameter: 135 mm (5.31 in)
16 Clutch damper spring 1
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
(6)
New
New
New
LT
T
R
.
.
90 Nm (9.0 m
•
kg, 65 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
8 Nm (0.8 m
•
kg, 5.8 ft
•
Ib)
E
9,15 11
