CLUTCH
5-46

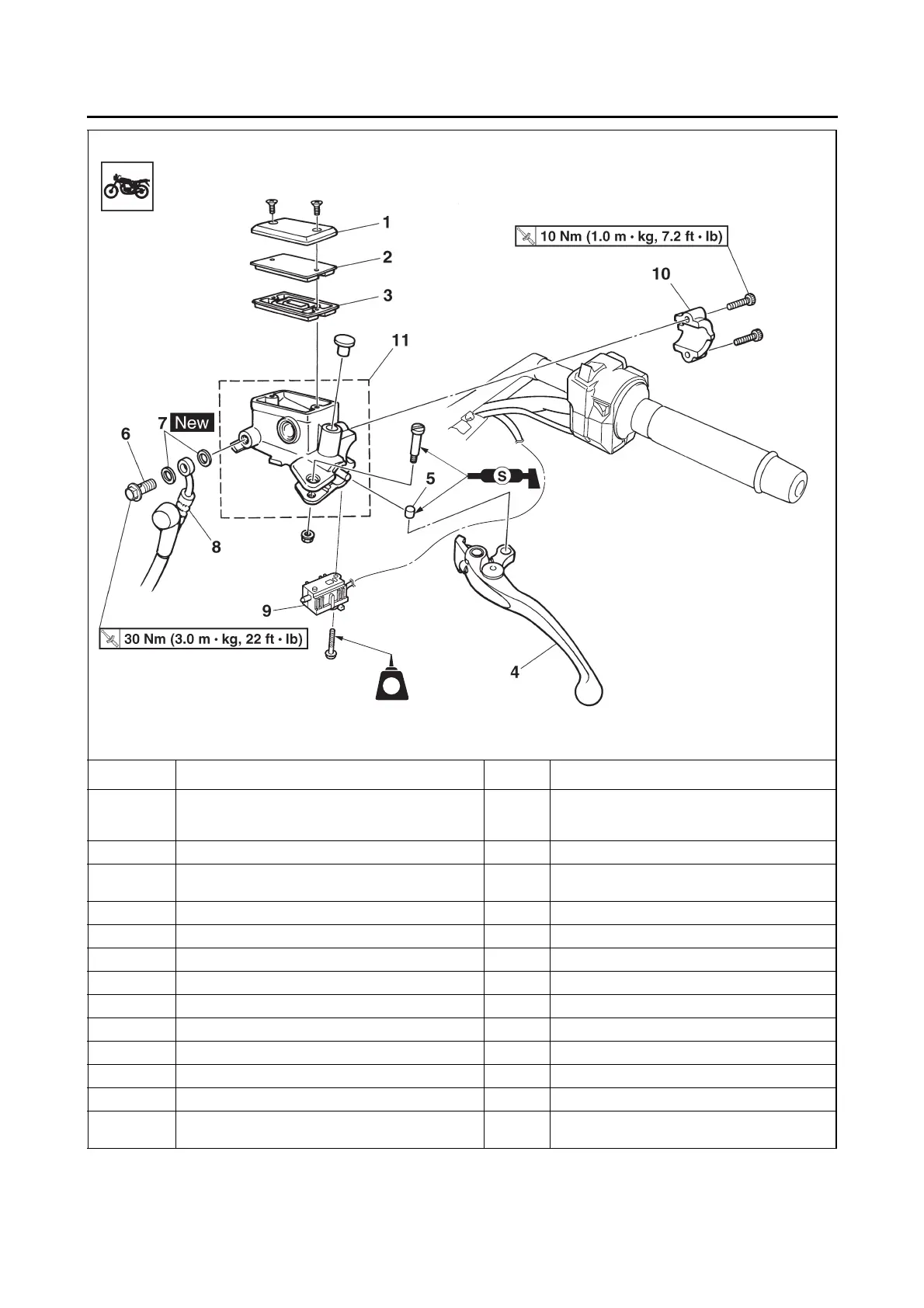

Removing the clutch master cylinder
Order Job/Parts to remove Q’ty Remarks
Clutch fluid
Drain.
Refer to “BLEEDING THE HYDRAULIC
CLUTCH SYSTEM” on page 3-12.
1 Clutch master cylinder reservoir cap 1
2
Clutch master cylinder reservoir diaphragm
holder
1
3 Clutch master cylinder reservoir diaphragm 1
4 Clutch lever 1
5 Clutch master cylinder push rod pin 1
6 Clutch hose union bolt 1
7 Copper washer 2
8 Clutch hose 1 Disconnect.
9 Clutch switch 1
10 Clutch master cylinder holder 1
11 Clutch master cylinder 1
For installation, reverse the removal proce-
dure.
