CLUTCH
5-48

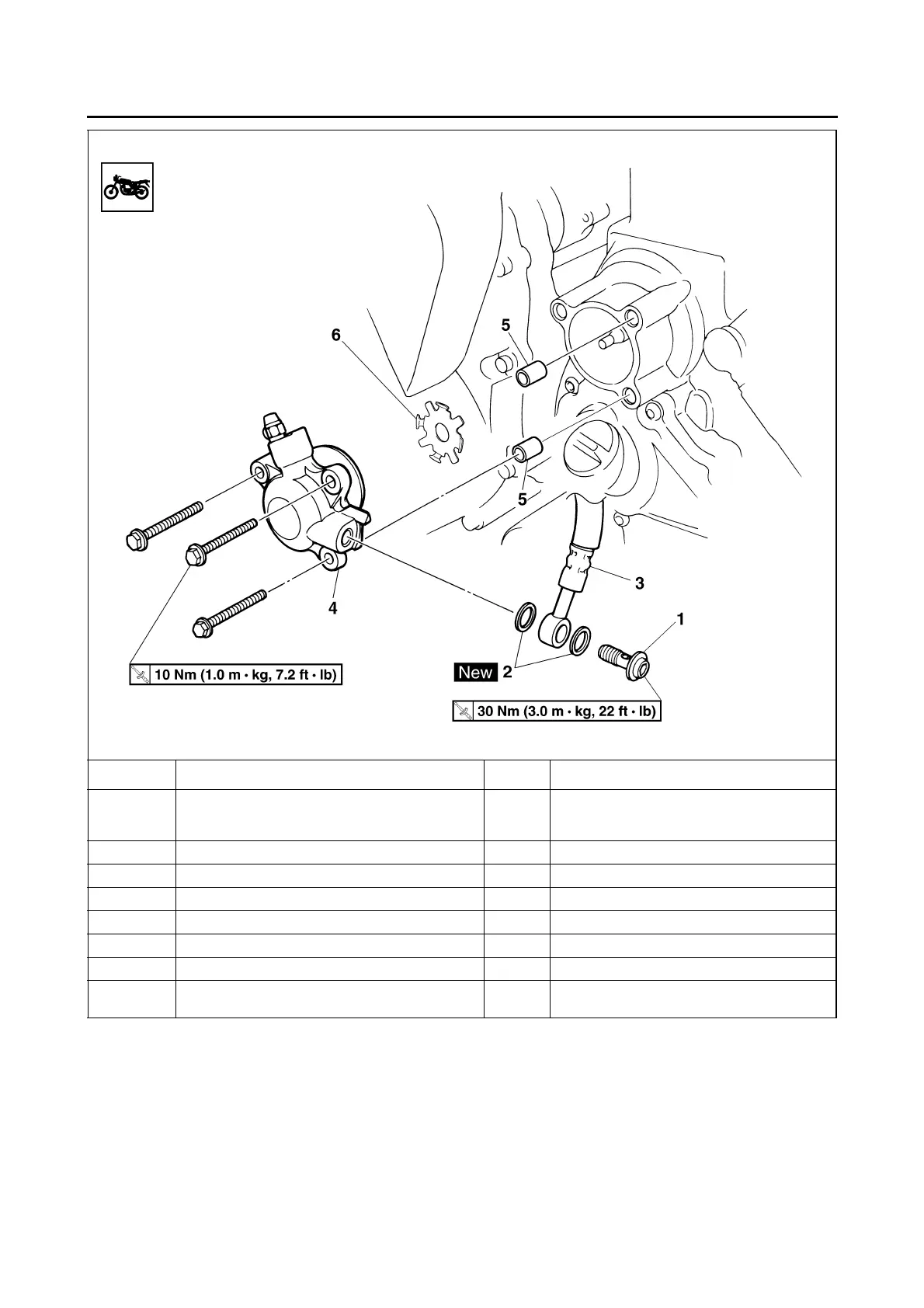

Removing the clutch release cylinder
Order Job/Parts to remove Q’ty Remarks
Clutch fluid
Drain.
Refer to “BLEEDING THE HYDRAULIC
CLUTCH SYSTEM” on page 3-12.
1 Clutch hose union bolt 1
2 Copper washer 2
3 Clutch hose 1 Disconnect.
4 Clutch release cylinder 1
5 Dowel pin 2
6Plate 1
For installation, reverse the removal proce-
dure.
