OIL PUMP
5-62

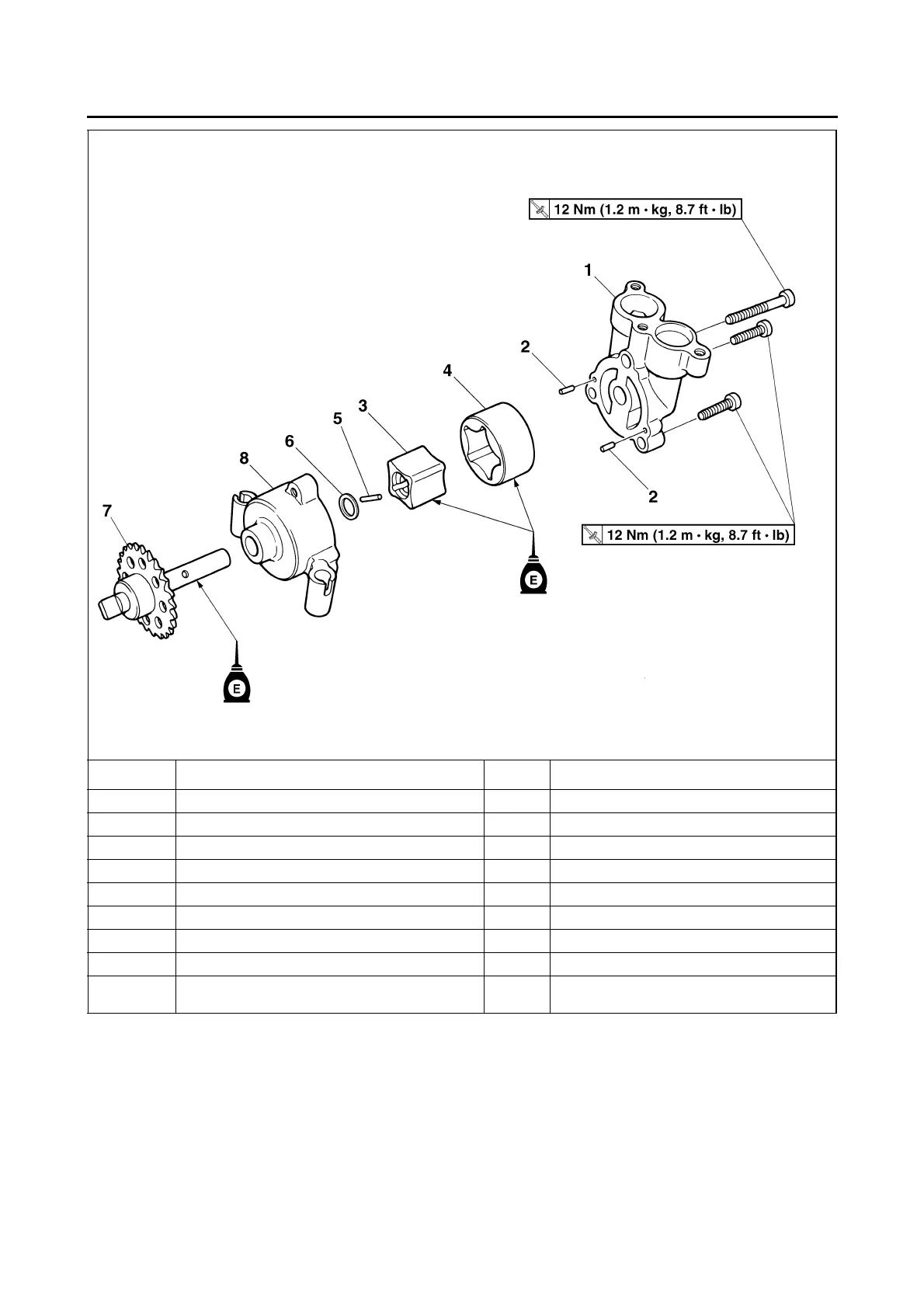

Disassembling the oil pump
Order Job/Parts to remove Q’ty Remarks
1 Oil pump housing cover 1
2Pin 2
3 Oil pump inner rotor 1
4 Oil pump outer rotor 1
5Pin 1
6Washer 1
7 Oil pump driven sprocket 1
8 Oil pump housing 1
For assembly, reverse the disassembly pro-
cedure.
