MIDDLE GEAR
5-66
14 Middle drive shaft assembly 1
15 Spacer 1
16 Middle driven gear 1
17 Bearing retainer 1
18 Bearing 1
19 Middle drive pinion gear shim
Refer to “ALIGNING THE MIDDLE GEAR”
on page 5-74.
20 Bearing 1
For installation, reverse the removal proce-
dure.

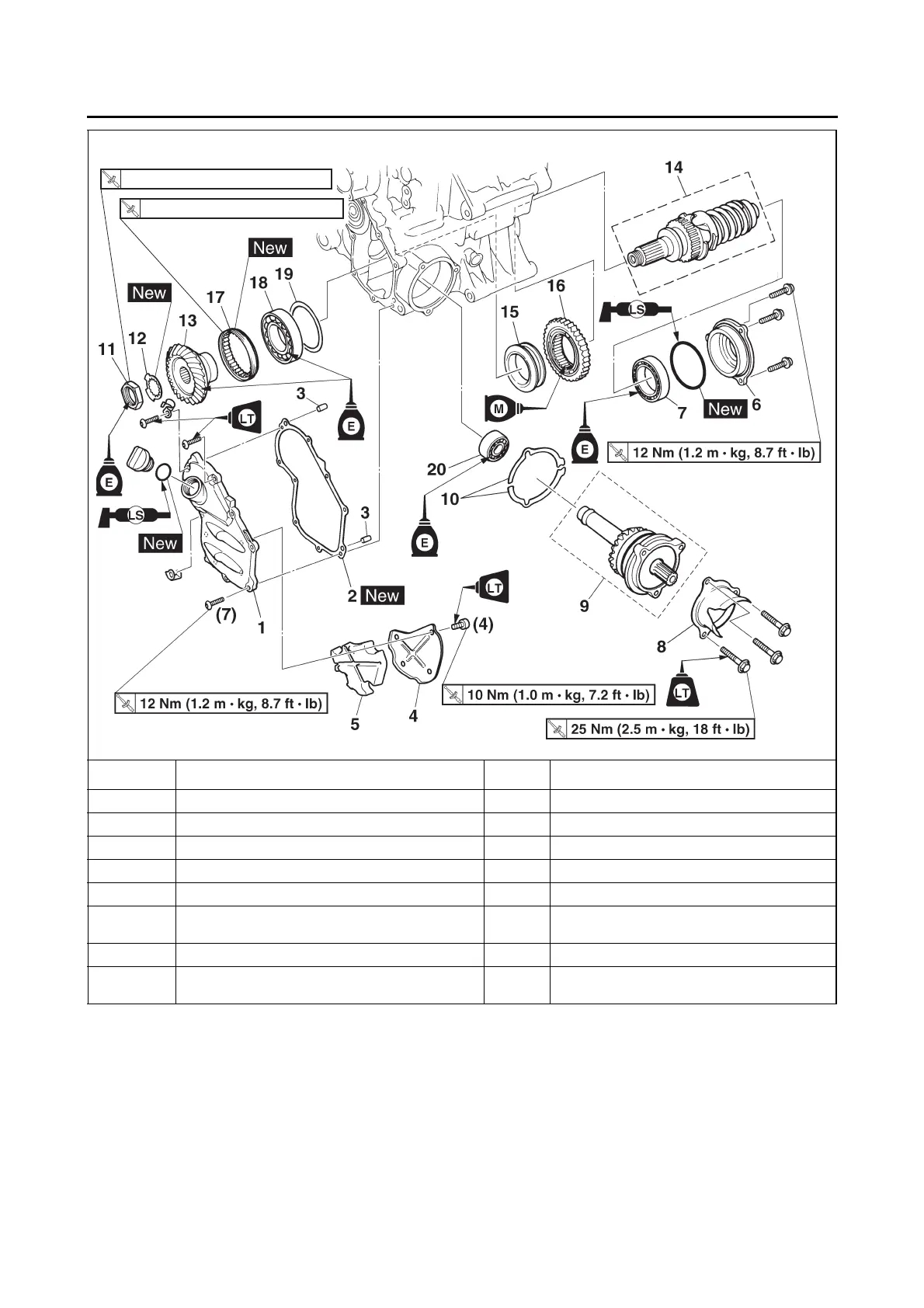

Removing the middle gear
Order Job/Parts to remove Q’ty Remarks
110 Nm (11.0 m
•
kg, 80 ft
•
lb)
T
.R.
160 Nm (16.0 m
•
kg, 115 ft
•
lb)
T
.R.
