Yamaha FJR1300A(D) - Page 401

TRANSMISSION
5-100

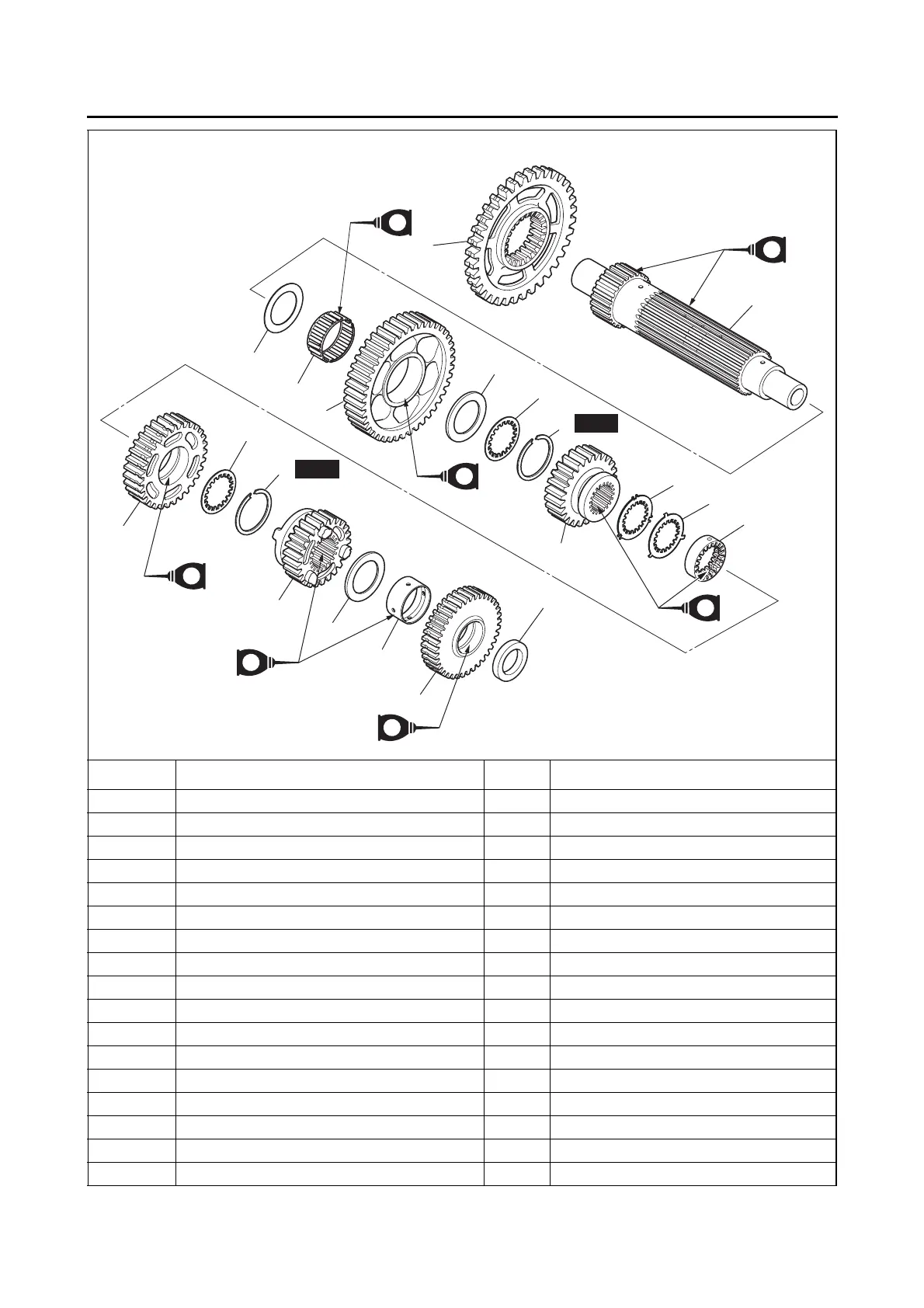

Disassembling the drive axle assembly
Order Job/Parts to remove Q’ty Remarks
1 Middle drive gear 1
2Washer 1
3 2nd wheel gear 1
4Collar 1
5Washer 1
6 5th wheel gear 1
7 Circlip 2
8 Toothed washer 2
9 3rd wheel gear 1
10 Toothed spacer 1
11 Toothed lock washer 1
12 Toothed lock washer retainer 1
13 4th wheel gear 1
14 Washer 1
15 1st wheel gear 1
16 Bearing 1
17 Washer 1
1
18
17
16
15
14
8
7
12
11
10
2
3
4
6
7
8
9
13
E
M
M
M
M
M
M
5
New
New
