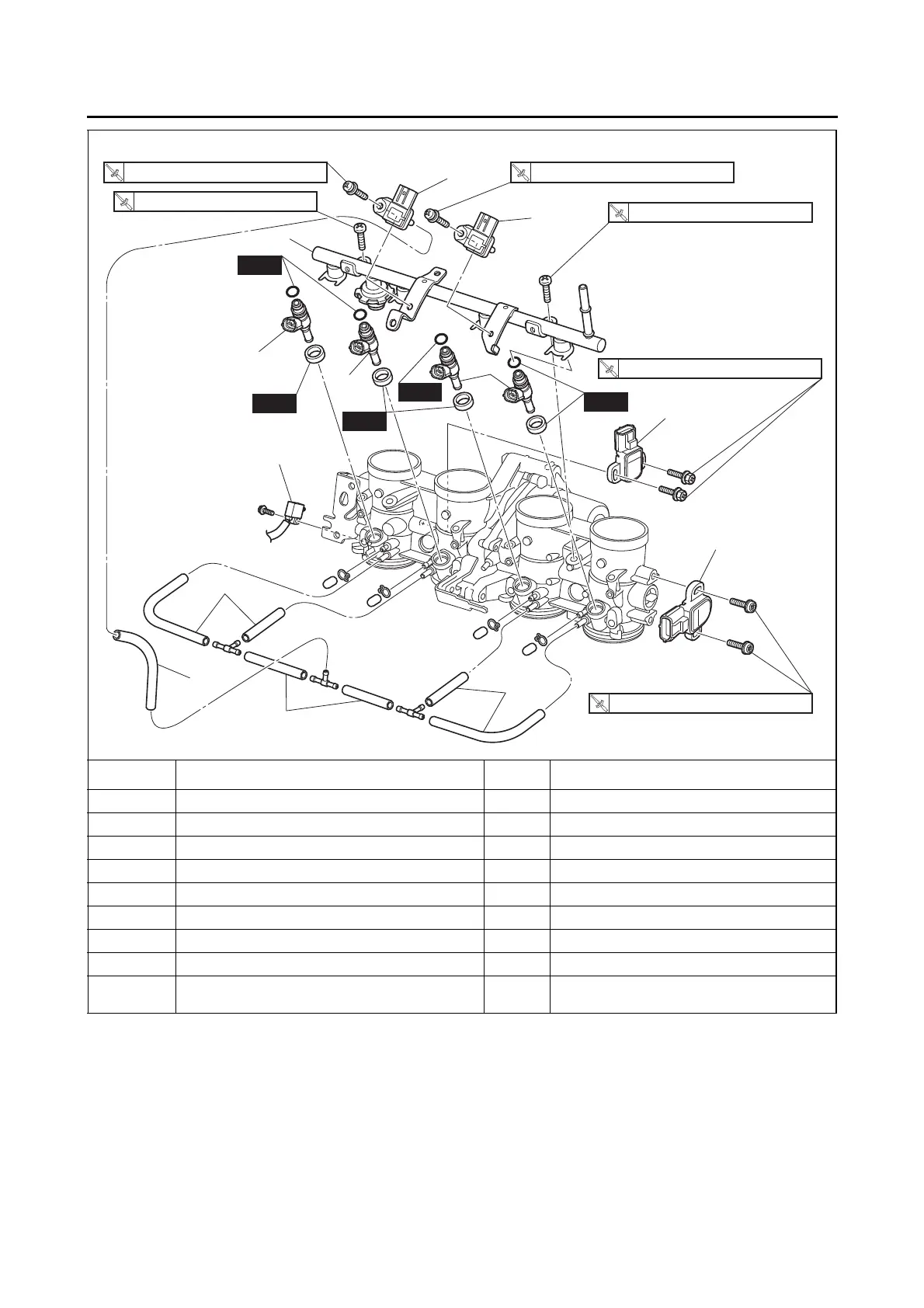

THROTTLE BODIES
7-6
Removing the injectors
Order Job/Parts to remove Q’ty Remarks
1 Negative pressure hose 7
2 Atmospheric pressure sensor 1
3 Intake air pressure sensor 1
4Fuel rail 1
5Injector 4
6 Throttle position sensor 1
7 Accelerator position sensor 1
8 Grip cancel switch 1
For installation, reverse the removal proce-
dure.
New
New
New
New
New
2
3
1
1
1
1
4
5
5
5
7
6
8
