ABS (ANTI-LOCK BRAKE SYSTEM)
8-157

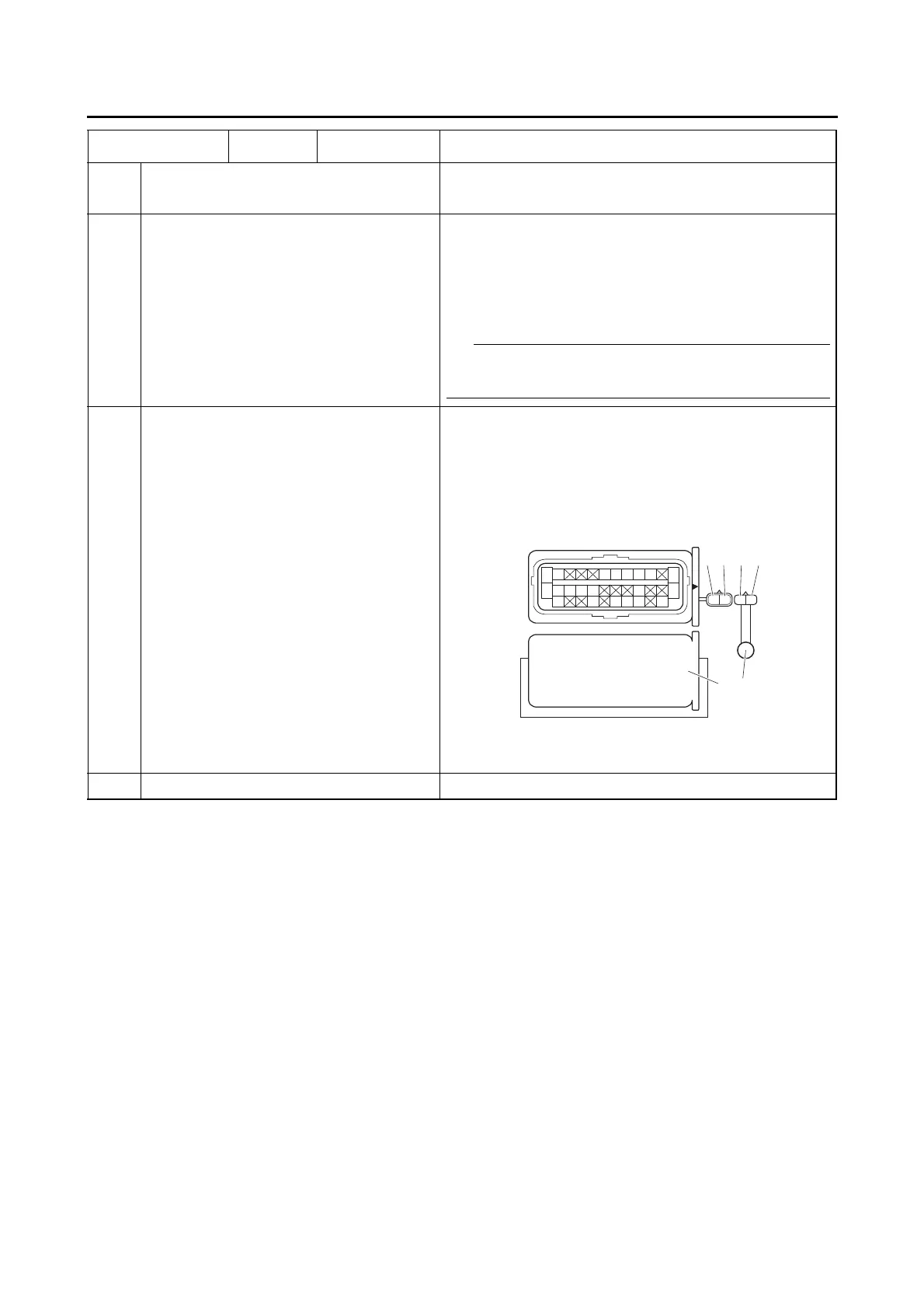

Fault code No. ABS_64 Symptom Rear wheel sensor power is abnormal.
Order Item/components and probable
cause
Check or maintenance job
1 Short circuit in wire harness. • Check that there is no short circuit between the
gray terminal “1” and the white terminal “2”.
• Check that there is no short circuit between the
frame ground and the white terminal “2”.
• If there is a short circuit, the wire harness is de-
fective. Replace the wire harness.
TIP
Disconnect the ABS ECU coupler before checking
the wire harness.
2 Short circuit in rear wheel sensor
lead.
• Check that there is no short circuit between the
white terminal “3” and the gray terminal “4”.
• Check that there is no short circuit between the
frame ground and the white terminal “3”.
• If there is a short circuit, the rear wheel sensor is
defective. Replace the rear wheel sensor.
5. ABS ECU
6. Rear wheel sensor
3 Hydraulic unit internal malfunction. Replace the hydraulic unit assembly.
W GyGy
W
WB G/W L/WW/Y
L/BB/W
Gy W G/R
L/R
Y W/LG/Y Sb Br/W
B/W
B/G
R
R/L
L/Y
65
2 3 41
