4-55
FRONT FORK
CHAS
NOTE:

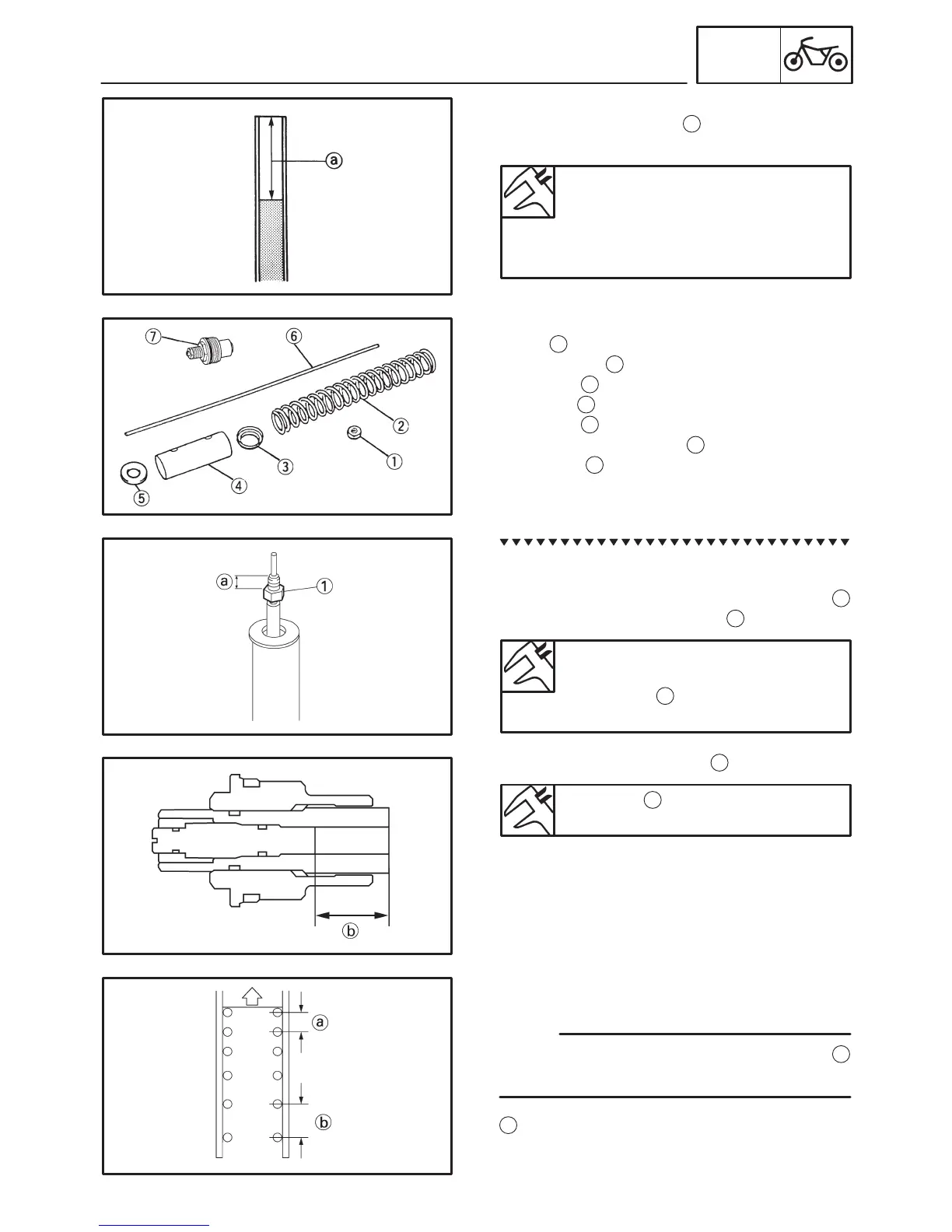

14. Measure:
S front fork leg oil level
a
Out of specification ! Correct.
Front fork leg oil level (from the
top of the inner tube, with the inner
tube fully compressed, and without
the spring)
106 mm (4.17 in)
15. Install:
S nut
1
S fork spring
2
S washer
3
S spacer
4
S washer
5
S damper adjusting rod
6
S cap bolt
7
a. Remove the rod puller and rod puller attach-
ment.
b. Install the damper adjusting rod locknut
1
and position it as specified
a
.
Damper adjusting rod nut position
(from the top of the rod to the top
of the nut)
a
11 mm (0.43 in)
c. Set the cap bolt distance
b
to specification.
Distance
b
25 mm (0.98 in)
d. Install the damper adjusting rod, fork spring,
washer (lower), spacer and washer (upper).
Install the fork spring with the smaller pinch
a
facing up.
b
Larger pitch
To Next Page
