4-56
FRONT FORK
CHAS
WARNING
NOTE:
23 Nm (2.3 mSkg, 17 ftSlb)
26 Nm (2.6 mSkg, 19 ftSlb)
23 Nm (2.3 mSkg, 17 ftSlb)
e. Install the cap bolt and finger tighten it.
S Before installing the cap bolt, apply grease
onto the O-ring.
S Always use a new cap bolt O-ring.
f. Hold the cap bolt and tighten the nut to speci-
fication.
Nut
15 Nm (1.5 mSkg, 11 ftSlb)
EAS00662
INSTALLING THE FRONT FORK LEGS
The following procedure applies to both of the
front fork legs.
1. Install:
S handlebar (temporarily)
2. Install:
S front fork leg
Temporarily tighten the upper and under
bracket pinch bolts.
Make sure the inner fork tube is flush with the
top of the handlebar.
3. Remove:
S handlebar

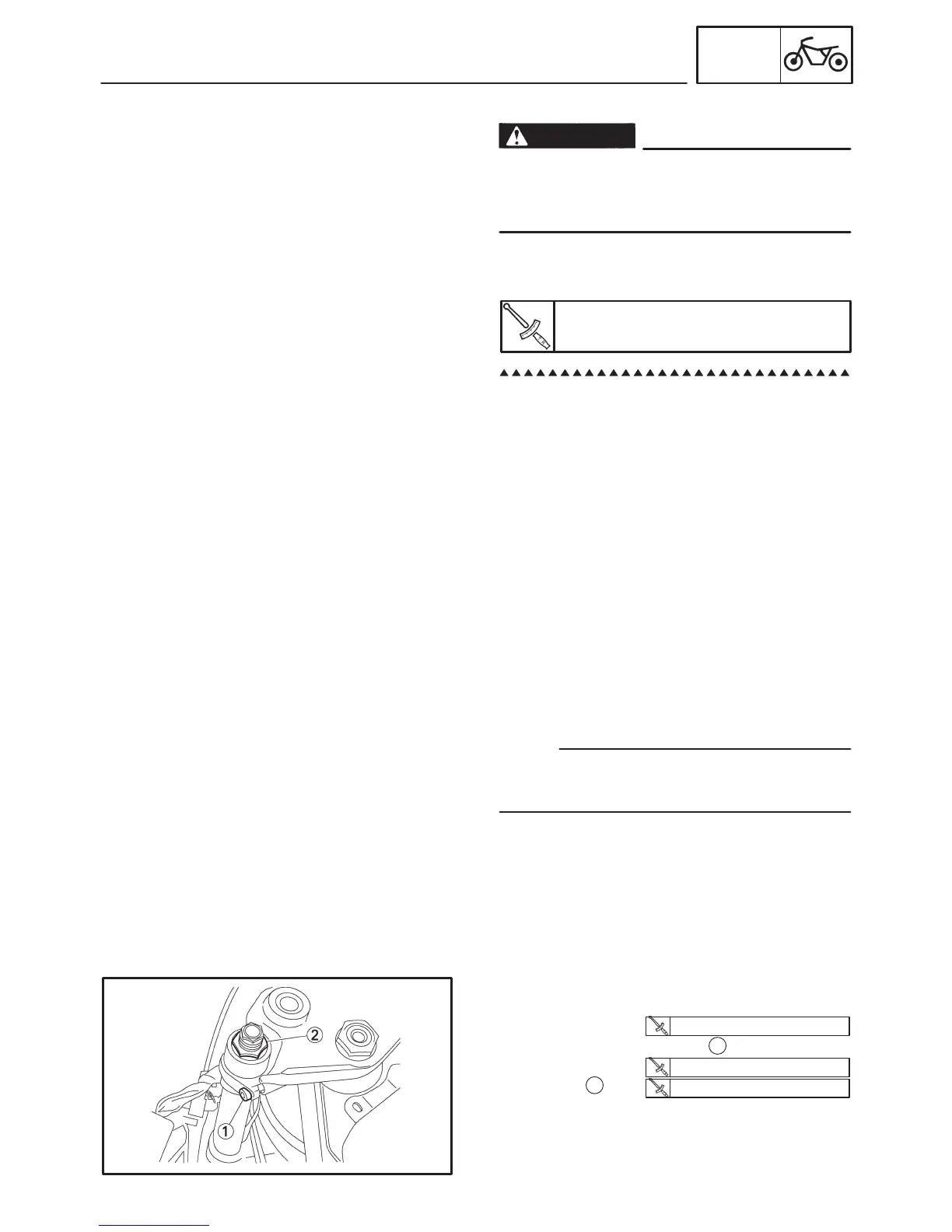

4. Tighten:
S under bracket pinch bolt
S upper bracket pinch bolt
1
S cap bolt
2
To Next Page
