4-61
HANDLEBARS
CHAS
11 Nm (1.1 mSkg, 8.0 ftSlb)
NOTE:
33 Nm (3.3 mSkg, 24 ftSlb)
13 Nm (1.3 mSkg, 9.4 ftSlb)
NOTE:
WARNING
23 Nm (2.3 mSkg, 17 ftSlb)

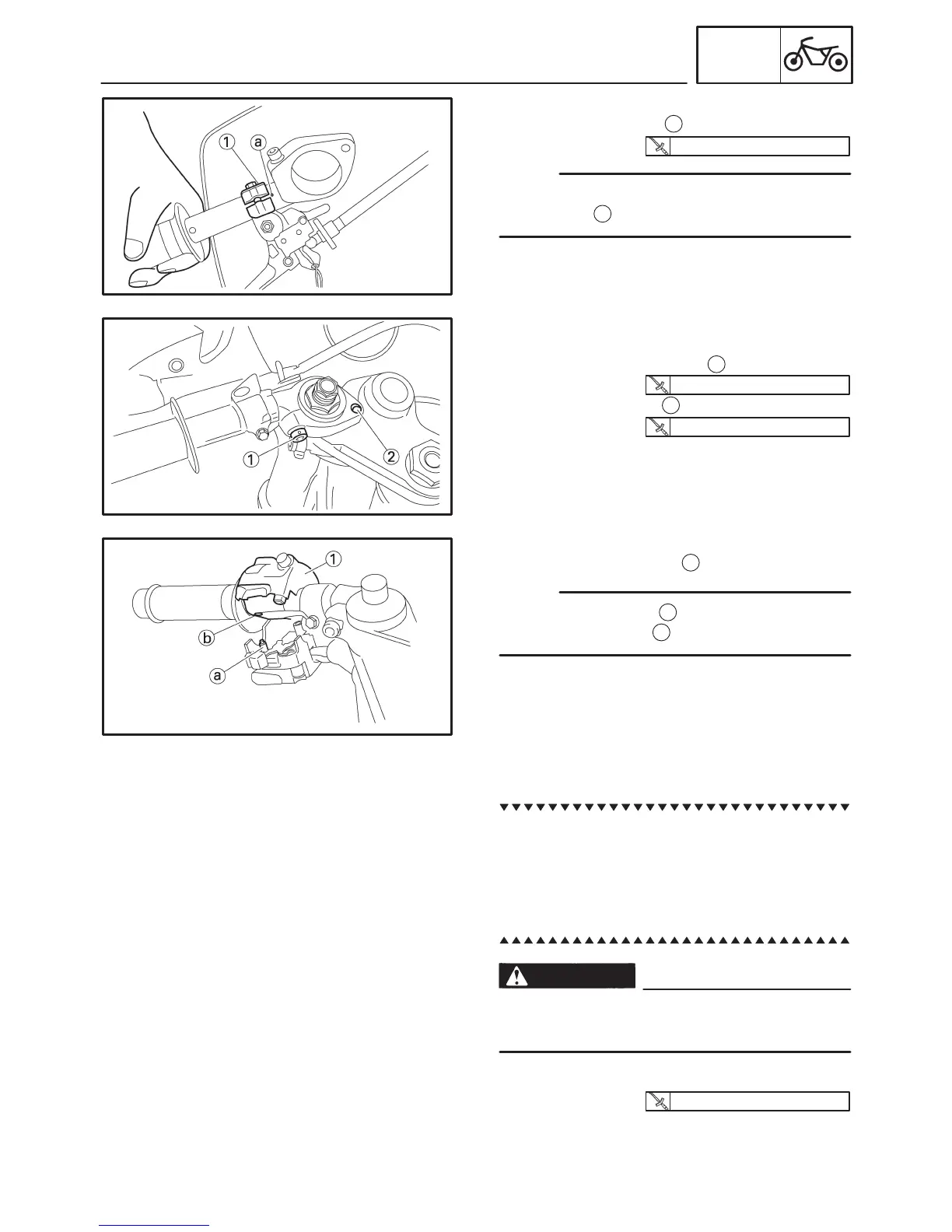

5. Install:
S clutch lever holder
1
Align the slit on the clutch lever holder with the
punch mark
a
on the left handlebar.
6. Install:
S left handlebar
S left handlebar pinch bolt
1
S left handlebar bolt
2
7. Install:
S left handlebar switch
1
Align the projection
a
on the left handlebar
switch with the hole
b
on the left handlebar.
8. Install:
S handlebar grip
a. Apply a thin coat of rubber adhesive onto the
end of the left handlebar.
b. Slide the handlebar grip over the end of the
left handlebar.
c. Wipe off any excess rubber adhesive with a
clean rag.
Do not touch the handlebar grip until the
rubber adhesive has fully dried.
9. Install:
S grip ends
