5-33
STARTER CLUTCH AND GENERATOR
ENG
NOTE:
NOTE:
EAS00347
REMOVING THE GENERATOR
1. Remove:
S rider seat and fuel tank
Refer to “SEATS” and “FUEL TANK” in chap-
ter 3.
S buttom cowling
S left side cowling
Refer to “COWLINGS” in chapter 3.
2. Drain:
S coolant
Refer to “CHANGING THE COOLANT” in
chapter 3.
S engine oil
Refer to “CHANGING THE ENGINE OIL” in
chapter 3.
3. Remove:
S generator rotor cover
Loosen each bolt 1/4 of a turn at a time, in
stages and in a crisscross pattern. After all of
the bolts are fully loosened, remove them.

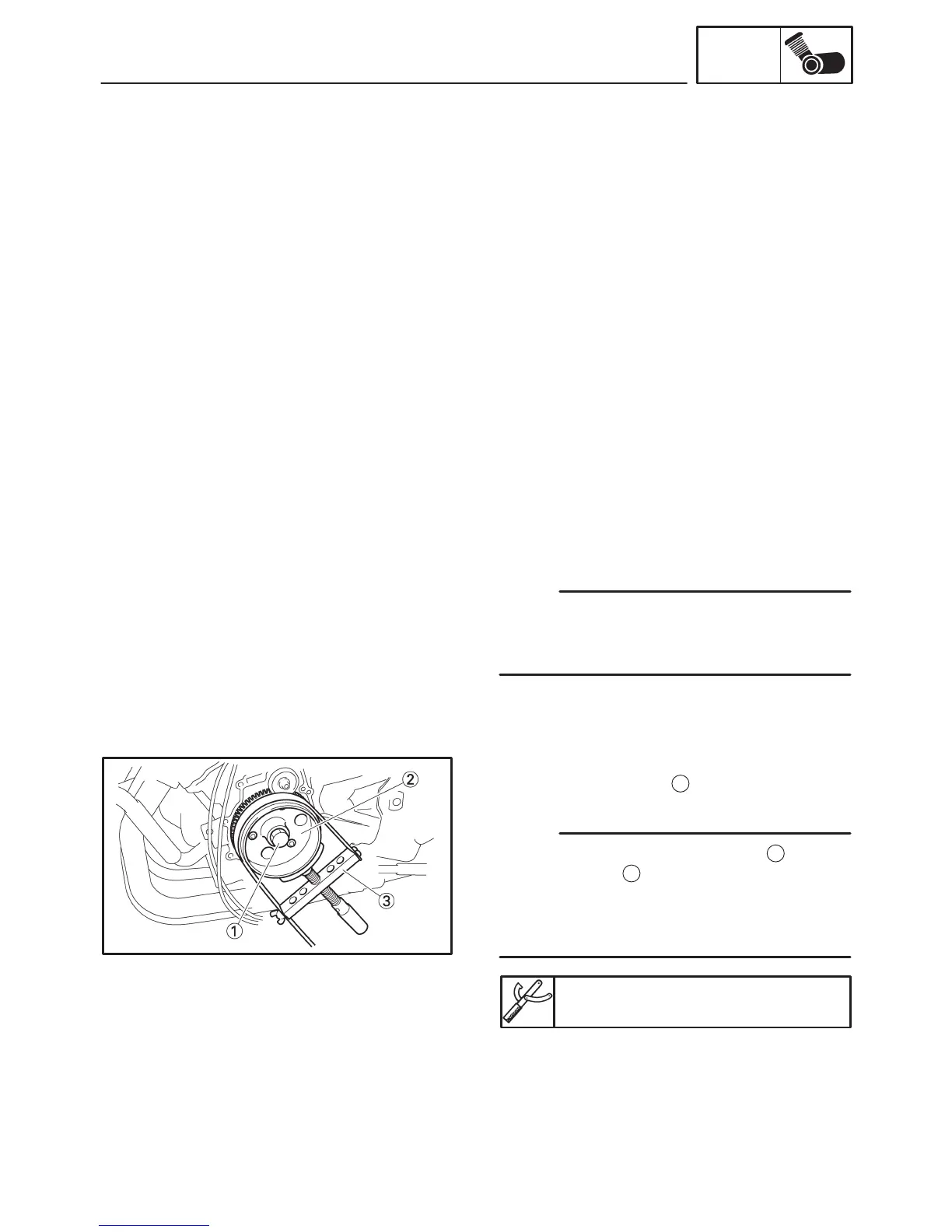

4. Remove:
S generator rotor bolt
1
S washer
S While holding the generator rotor
2
with the
sheave holder
3
, loosen the generator rotor
bolt.
S Do not allow the sheave holder to touch the
projection on the generator rotor.
Sheave holder
90890-01701, YS-01880-A
