5-34
STARTER CLUTCH AND GENERATOR
ENG
CAUTION:
NOTE:
NOTE:

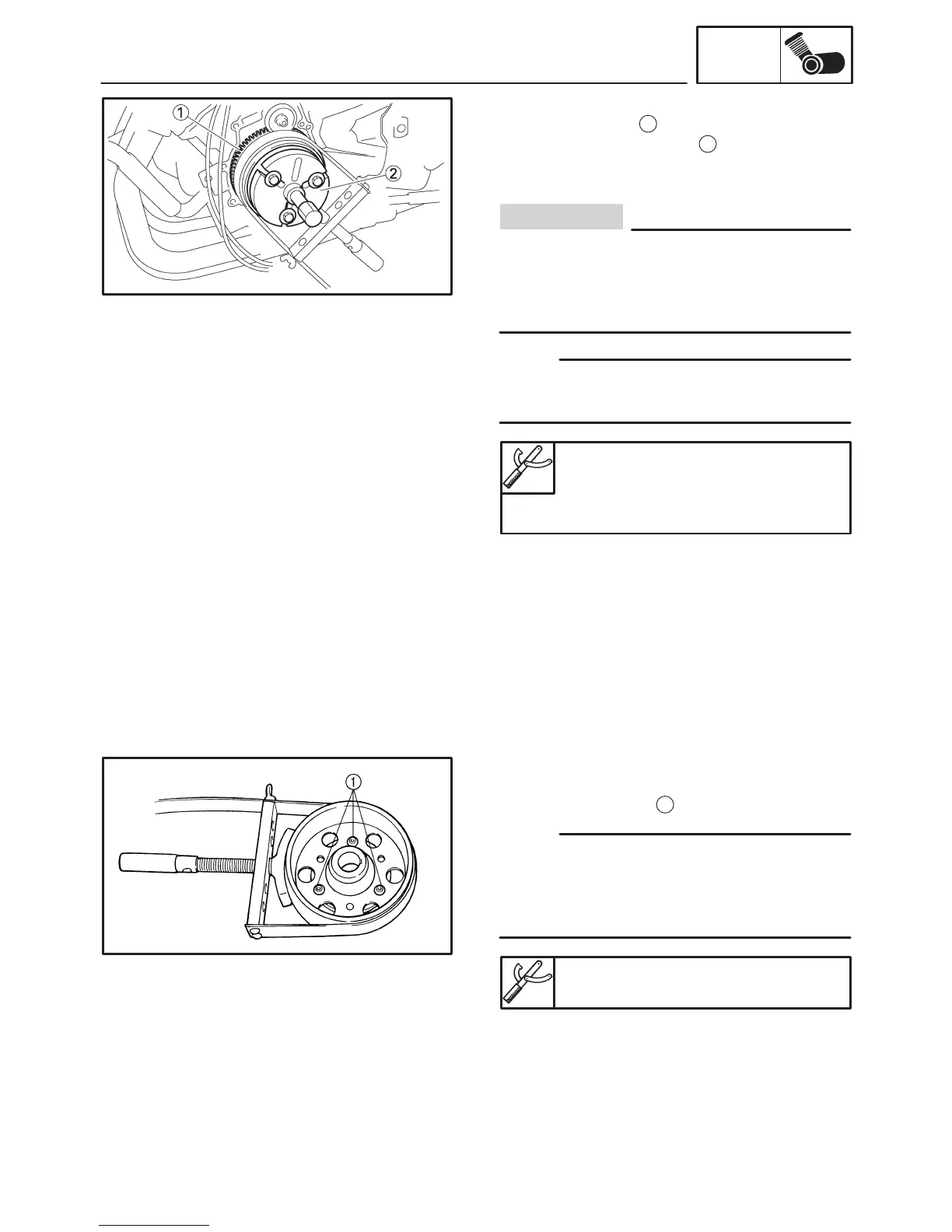

5. Remove:
S generator rotor
1
(with the flywheel puller
2
and flywheel pull-
er attachment)
S woodruff key
To protect the end of the crankshaft, place
an appropriate sized socket between the fly-
wheel puller set’s center bolt and the crank-
shaft.
Make sure the flywheel puller is centered over
the generator rotor.
Flywheel puller
90890-01362, YU-33270
Flywheel puller attachment
90890-04089, YM-33282
REMOVING THE STARTER CLUTCH
1. Remove:
S starter clutch bolt
1
S While holding the generator rotor with the
sheave holder, remove the starter clutch bolt.
S Do not allow the sheave holder to touch the
projection on the generator rotor.
Sheave holder
90890-01701, YS-01880-A
To Next Page
