5-35
STARTER CLUTCH AND GENERATOR
ENG
32 Nm (3.2 mSkg, 23 ftSlb)
LOCTITIE
R
NOTE:
EAS00351

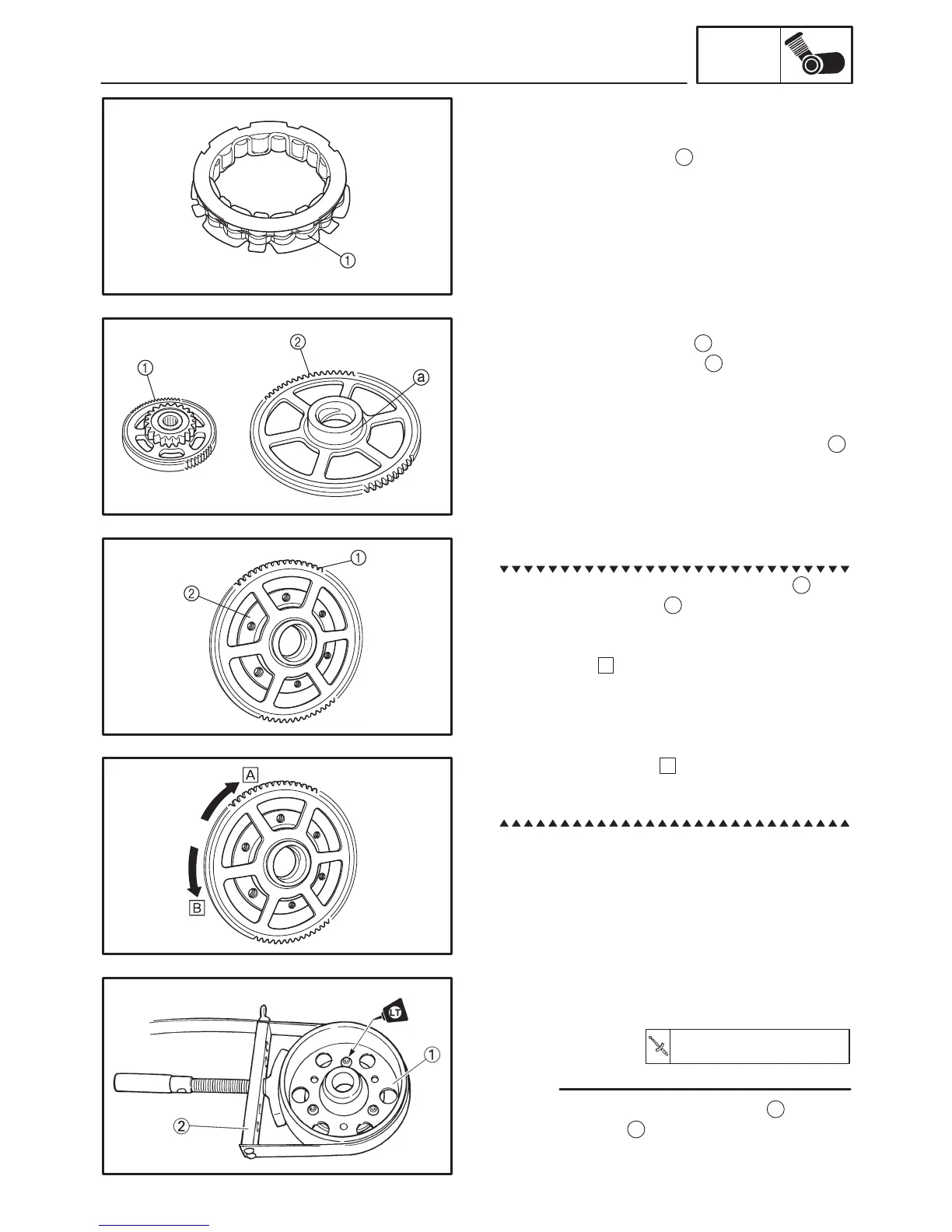

CHECKING THE STARTER CLUTCH
1. Check:
S starter clutch rollers
1
Damage/wear ! Replace.
2. Check:
S starter clutch idle gear
1
S starter clutch drive gear
2
Burrs/chips/roughness/wear ! Replace
the defective part(s).
3. Check:
S starter clutch gear’s contacting surfaces
a
Damage/pitting/wear ! Replace the starter
clutch gear.
4. Check:
S starter clutch operation
a. Install the starter clutch drive gear
1
onto
the starter clutch
2
and hold the starter
clutch.
b. When turning the starter clutch drive gear
clockwise
A
, the starter clutch and the start-
er clutch drive gear should engage, other-
wise the starter clutch is faulty and must be
replaced.
c. When turning the starter clutch drive gear
counterclockwise
B
, it should turn freely,
otherwise the starter clutch is faulty and must
be replaced.
EAS00355
INSTALLING THE STARTER CLUTCH
1. Install:
S starter clutch
S While holding the generator rotor
1
with the
sheave holder
2
, tighten the starter clutch
bolt.
To Next Page
