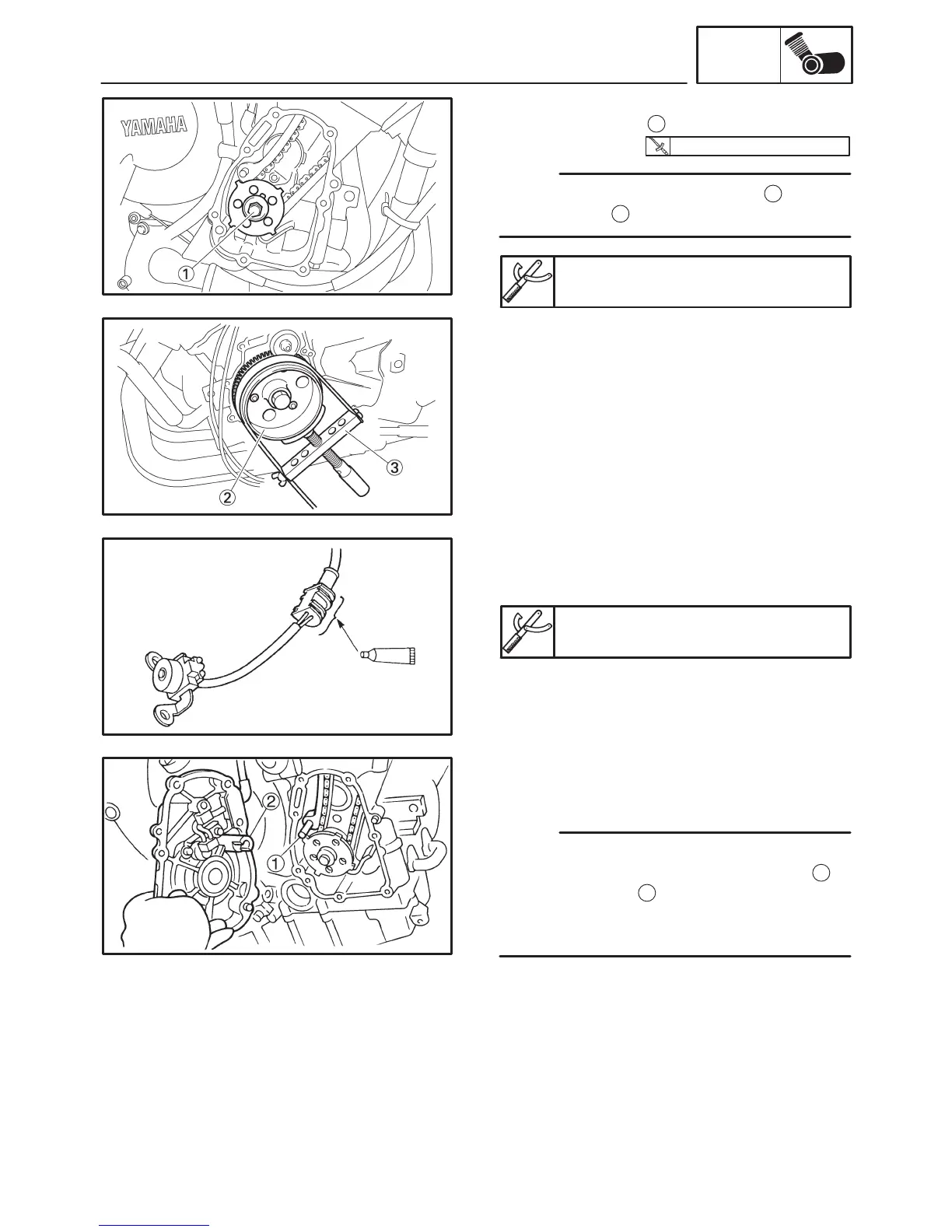

CRANKSHAFT POSITION SENSOR AND PICKUP ROTOR
ENG
35 Nm (3.5 mSkg, 25 ftSlb)
NOTE:
NOTE:
2. Tighten:
S pickup rotor bolt
1
While holding the generator rotor
2
with the
sheave holder
3
, tighten the pickup rotor bolt.
Sheave holder
90890-01701, YS-01880-A
3. Apply:
S sealant
(onto the crankshaft position sensor lead
grommet)
Yamaha bond No.1215
90890-85505, ACC-11001-5-01
4. Install:
S pickup rotor cover
S clutch cable holder
S When installing the pickup rotor cover, align
the timing chain guide (intake side) pin
1
of
the with the hole
2
in the pickup rotor cover.
S Tighten the pickup rotor cover bolts in stages
and in a crisscross pattern.
