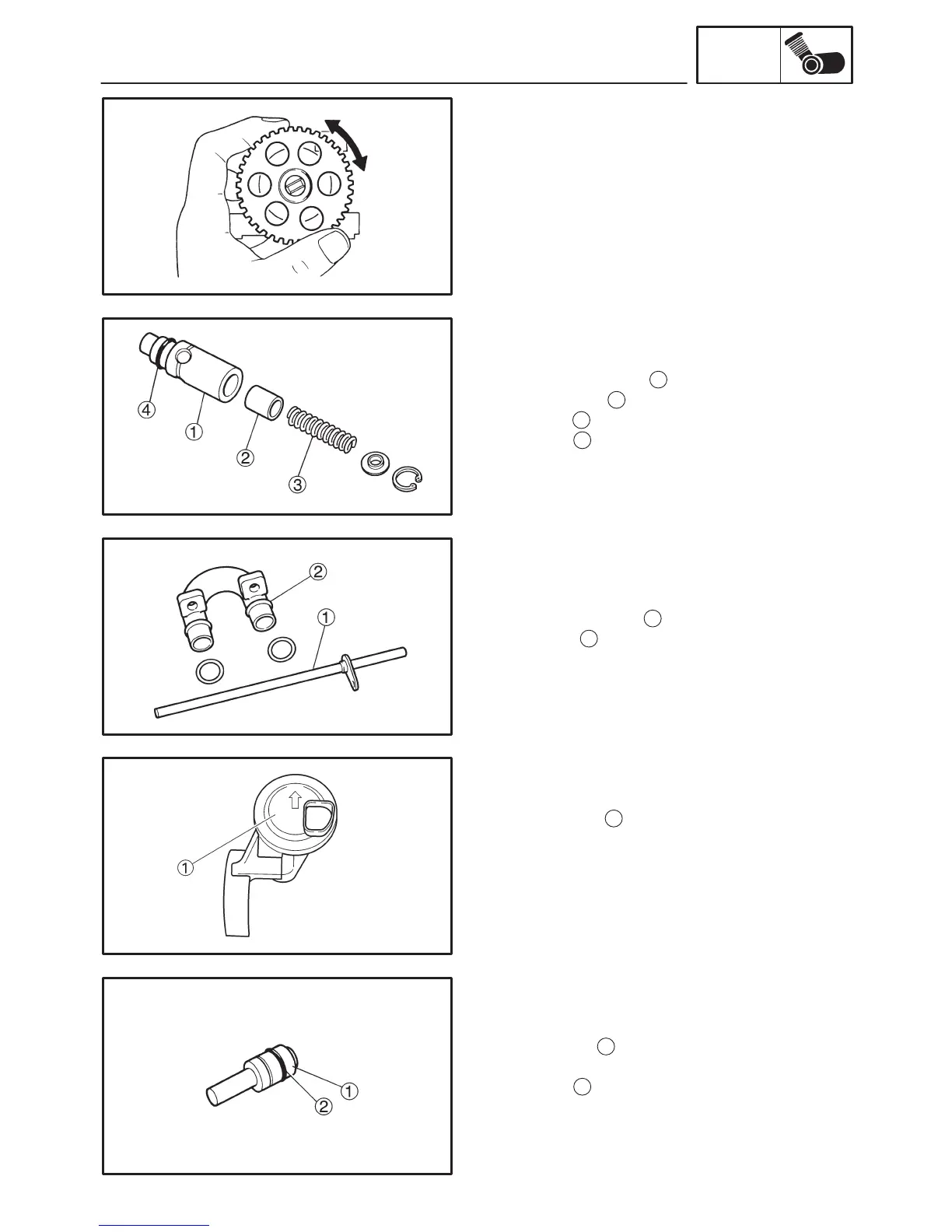

5-58
OIL PAN AND OIL PUMP
ENG
3. Check:
S oil pump operation
Rough movement ! Repeat steps (1) and
(2) or replace the defective part(s).
EAS00365
CHECKING THE RELIEF VALVE
1. Check:
S relief valve body
1
S relief valve
2
S spring
3
S O-ring
4
Damage/wear ! Replace the defective
part(s).
EAS00367
CHECKING THE OIL DELIVERY PIPE AND
OIL PIPE
1. Check:
S oil delivery pipe
1
S oil pipe
2
Damage ! Replace.
Obstruction ! Wash and blow out with com-
pressed air.
EAS00368
CHECKING THE OIL STRAINER
1. Check:
S oil strainer
1
Damage ! Replace.
Contaminants ! Clean with solvent.
EAS00373
CHECKING THE OIL NOZZLES
The following procedure applies to all of the oil
nozzles.
1. Check:
S oil nozzle
1
Damage/wear ! Replace the oil nozzle.
S O-ring
2
Damage/wear ! Replace.
S oil nozzle passage
Obstruction ! Blow out with compressed air.
To Next Page
