5-59
OIL PAN AND OIL PUMP
ENG
12 Nm (1.2 mSkg, 8.7 ftSlb)
NOTE:
12 Nm (1.2 mSkg, 8.7 ftSlb)
CAUTION:
EAS00374

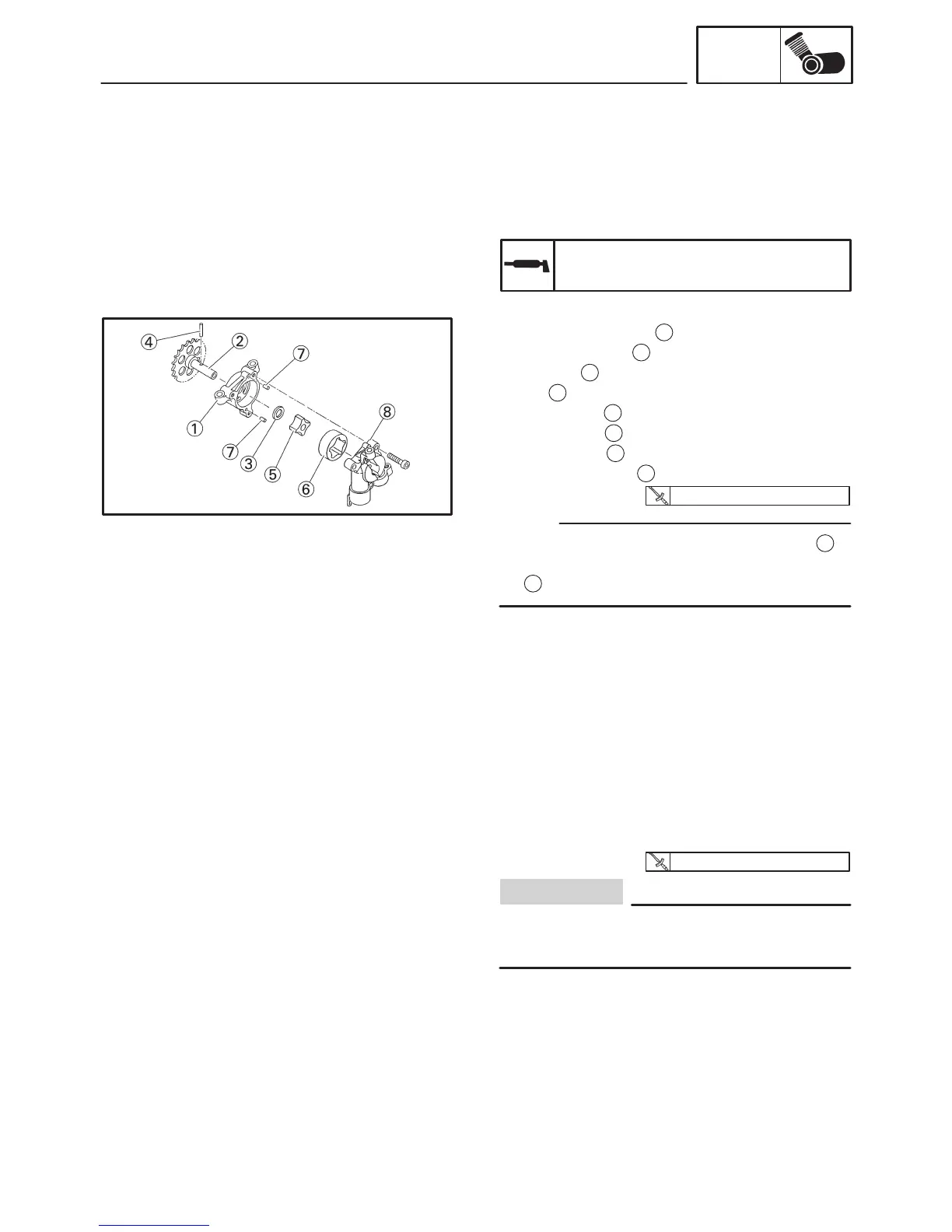

ASSEMBLING THE OIL PUMP
1. Lubricate:
S inner rotor
S outer rotor
S oil pump shaft
(with the recommended lubricant)
Recommended lubricant
Engine oil
2. Install:
S oil pump housing
1
S oil pump shaft
2
S washer
3
S pin
4
S inner rotor
5
S outer rotor
6
S dowel pins
7
S oil pump cover
8
When installing the inner rotor, align the pin
4
in
the oil pump shaft with the groove in the inner ro-
tor
5
.
3. Check:
S oil pump operation
Refer to “CHECKING THE OIL PUMP”.
EAS00376
INSTALLING THE OIL PUMP
1. Install:
S oil pump drive chain
S gear cover
S oil pump
After tightening the bolts, make sure the oil
pump turns smoothly.
To Next Page
