6-14
WATER PUMP
COOL
NOTE:
CAUTION:
Mechanical seal installer
90890-04078, YM-33221
4
Middle driven shaft bearing driver
90890-04058, YM-04058
5
Quick Gasket
ACC-11001-05-01
Yamaha bond #1215
90890-85505
A
Push down.
3. Install:
S rubber damper
New
1
S rubber damper holder
New
2
Before installing the rubber damper, apply tap
water or coolant onto its outer surface.

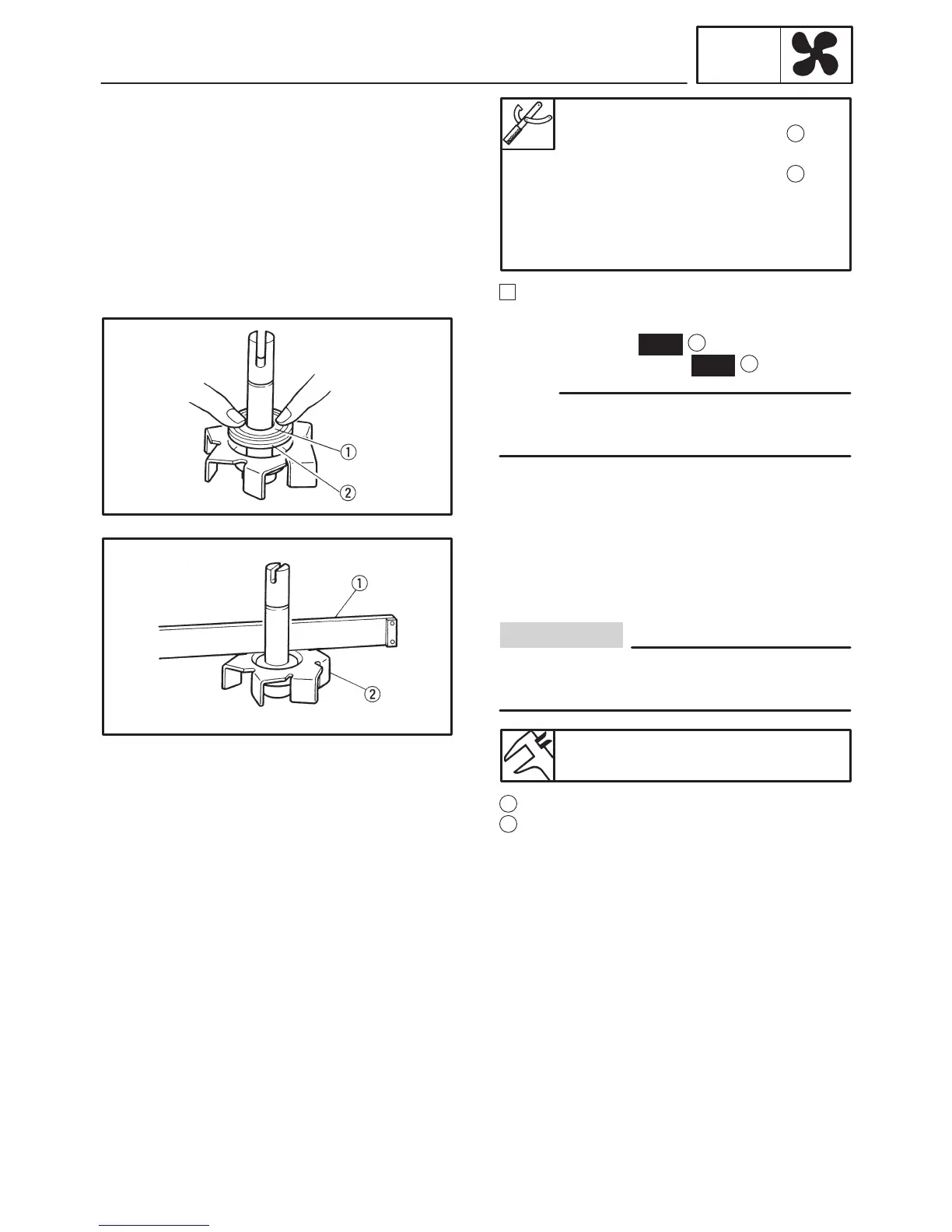

4. Measure:
S impeller shaft tilt
Out of specification ! Repeat steps (3) and
(4).
Make sure the rubber damper and rubber
damper holder are flush with the impeller.
Impeller shaft tilt limit
0.15 mm (0.006 in)
1
Straightedge
2
Impeller
