–22–
IGNITION SYSTEM
ELEC

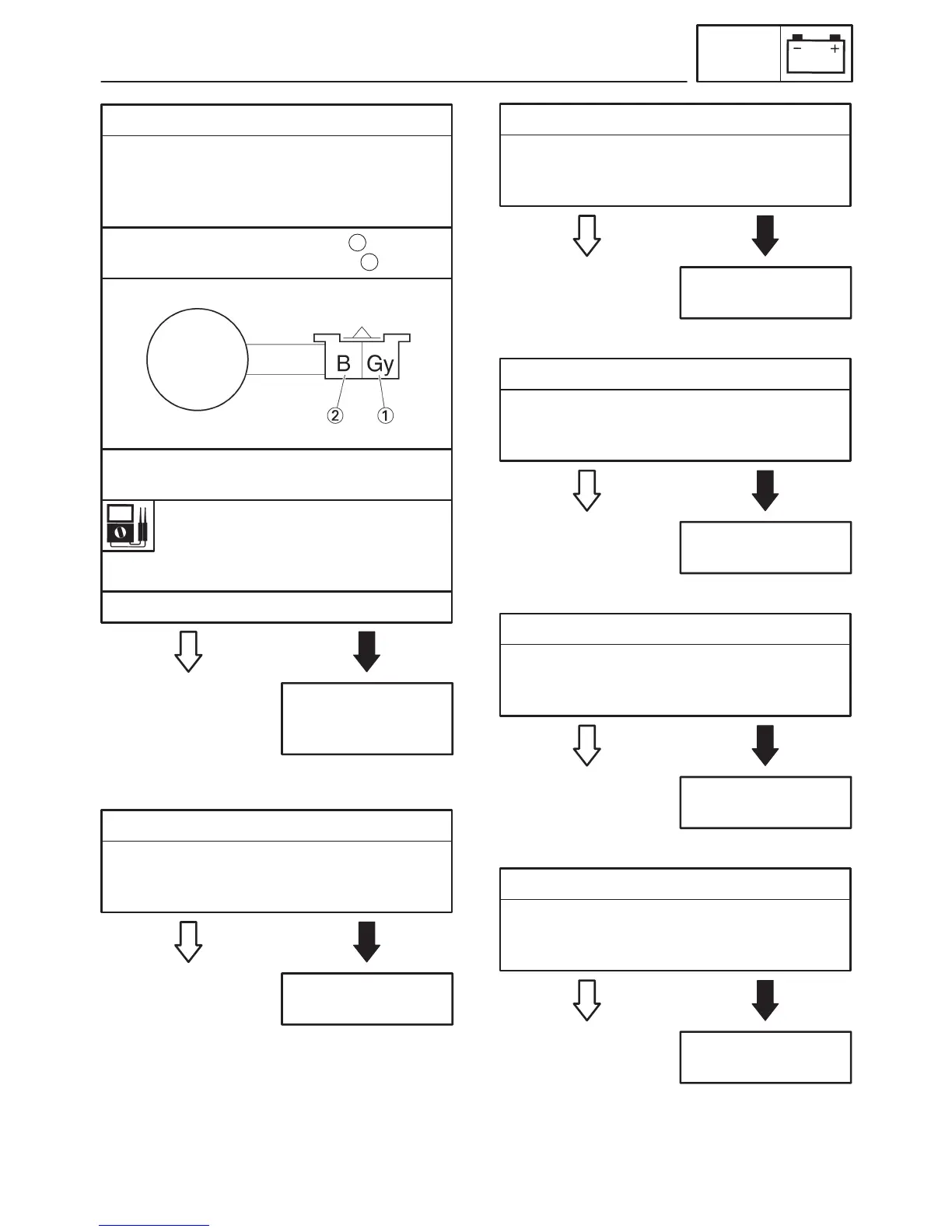

6. Crankshaft position sensor resistance
S Disconnect the crankshaft position sensor
coupler from the wire harness.
S Connect the pocket tester (Ω 100) to the
crankshaft position sensor coupler as shown.
Positive tester probe ! gray
Negative tester probe ! black
1
2
S Measure the crankshaft position sensor
resistance.
Crankshaft position sensor
resistance
248 X 372Ω at 20_C (68_F)
(between gray and black)
S Is the crankshaft position sensor OK?
YES NO
Replace the
crankshaft position
sensor.
EAS00749
7. Main switch
S Check the main switch for continuity.
Refer to “CHECKING THE SWITCHES”.
S Is the main switch OK?
YES NO
Replace the main
switch.
EAS00748
EAS00750
8. Engine stop switch
S Check the engine stop switch for continuity.
Refer to “CHECKING THE SWITCHES”.
S Is the engine stop switch OK?
YES NO
Replace the right
handlebar switch.
EAS00751
9. Neutral switch
S Check the neutral switch for continuity.
Refer to “CHECKING THE SWITCHES”.
S Is the neutral switch OK?
YES NO
Replace the neutral
switch.
EAS00752
10. Sidestand switch
S Check the sidestand switch for continuity.
Refer to “CHECKING THE SWITCHES”.
S Is the sidestand switch OK?
YES NO
Replace the side-
stand switch.
EAS00763
11. Clutch switch
S Check the clutch switch for continuity.
Refer to “CHECKING THE SWITCHES”.
S Is the clutch switch OK?
YES NO
Replace the clutch
switch.
