Yamaha YZF-R6T User Manual

–23–
IGNITION SYSTEM
ELEC
YES NO
Replace the starting
circuit cut-off relay.
When you switch the positive and negative
tester probes, the readings in the above chart
will be reversed.
S Are the tester readings correct?
NOTE:

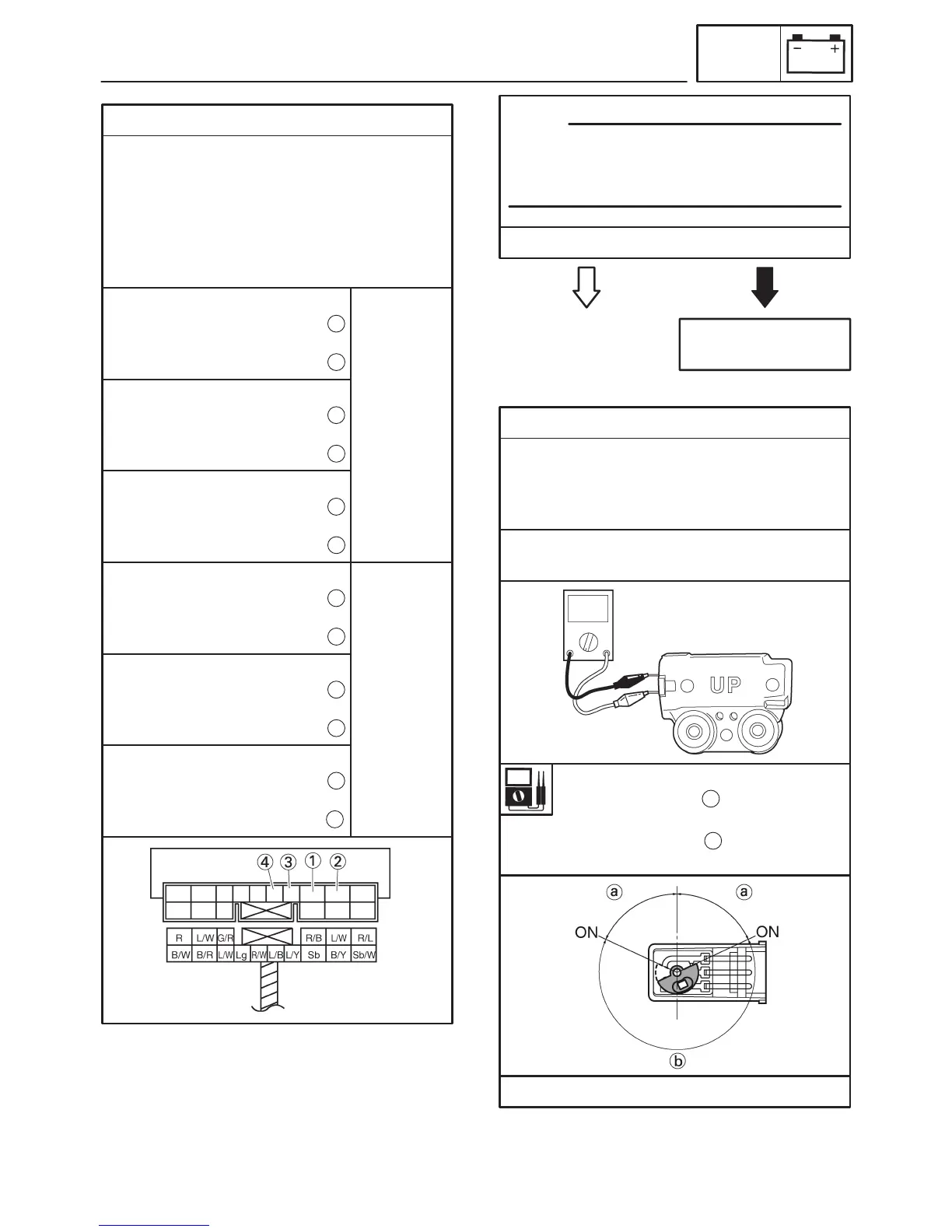

12. Starting circuit cut-off relay
S Disconnect the starting circuit cut-off relay
coupler from the wire harness.
S Connect the pocket tester (Ω 1) to the
starting circuit cut-off relay coupler as
shown.
S Check the starting circuit cut-off relay for
continuity.
Positive tester probe !
sky blue
Negative tester probe !
black/yellow
Positive tester probe !
blue/yellow
Negative tester probe !
blue/black
1
2
3
4
EAS00753
Positive tester probe !
sky blue
Negative tester probe !
blue/yellow
Continuity
1
3
Positive tester probe !
blue/black
Negative tester probe !
black/yellow
4
2
Positive tester probe !
black/yellow
Negative tester probe !
sky blue
2
1
Positive tester probe !
blue/yellow
Negative tester probe !
sky blue
No
continuity
3
1
13. Lean angle cut-off switch voltage
S Remove the lean angle cut-off switch.
S Connect the pocket tester (Ω 1) to the
lean angle cut-off switch terminals as
shown.
Positive tester probe ! blue
Negative tester probe ! yellow/green
Lean angle cut-off switch voltage
Less than 65_ !
Approximately 1 V
More than 65_ !
Approximately 4 V
S Is the lean angle cut-off switch OK?
a
b
