YASKAWA SGD7S series User Manual

6.16 Adjusting the Motor Current Detection Signal Offset
6.16.2 Manual Adjustment
6
Application Functions
6-105
5.

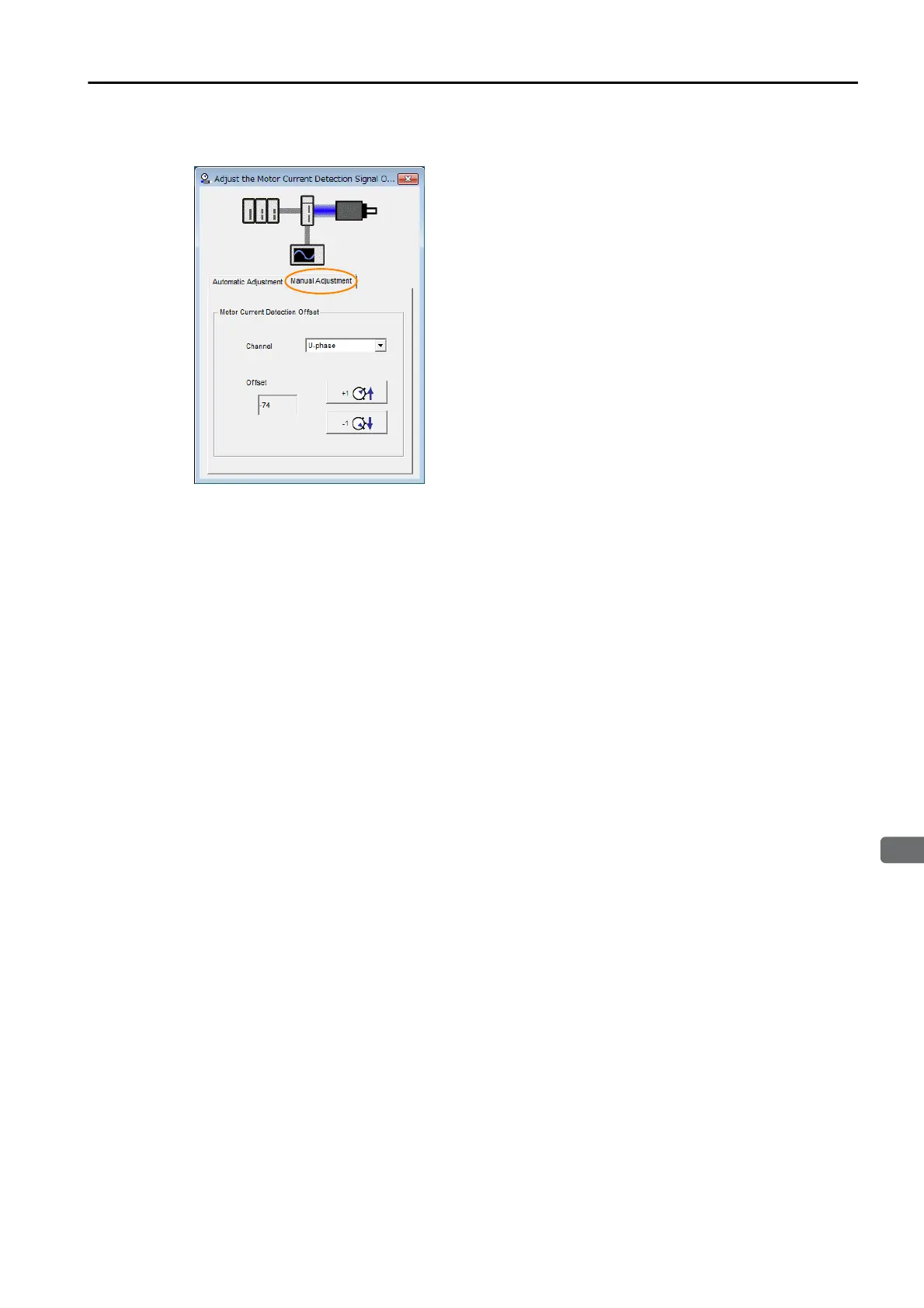

Click the Manual Adjustment Tab in the Adjust the Motor Current Detection Signal Off-
sets Dialog Box.
6. Set the Channel Box in the Motor Current Detection Offset Area to U-phase.
7. Use the +1 and -1 Buttons to adjust the offset for phase U.
Change the offset by about 10 in the direction that reduces the torque ripple.
Adjustment range: -512 to +511
8. Set the Channel Box in the Motor Current Detection Offset Area to V-phase.
9. Use the +1 and -1 Buttons to adjust the offset for phase V.
Change the offset by about 10 in the direction that reduces the torque ripple.
10. Repeat steps 6 to 9 until the torque ripple cannot be decreased any further regardless of
whether you increase or decrease the offsets.
11. Reduce the amount by which you change the offsets each time and repeat steps 6 to 9.
This concludes the procedure to manually adjust the motor current detection signal offset.

YASKAWA SGD7S series Specifications

General

Series	SGD7S
Safety	STO (Safe Torque Off)
Humidity	90% RH or less (non-condensing)
Control Method	PWM Control
Communication	EtherCAT, MECHATROLINK-III, MECHATROLINK-II
Output Power	0.1 kW to 15 kW
Feedback System	Incremental encoder, Absolute encoder
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Overheating, Encoder Error
Ambient Temperature	0 to 55°C
Storage Temperature	-20 to 85°C
Vibration Resistance	5.9 m/s²
Installation	Panel mounted
Certifications	CE, UL, cUL
