YASKAWA SGD7S series User Manual

4.4 Wiring Servomotors
4.4.3 Wiring the SERVOPACK to the Encoder
4
Wiring and Connecting SERVOPACKs
4-27

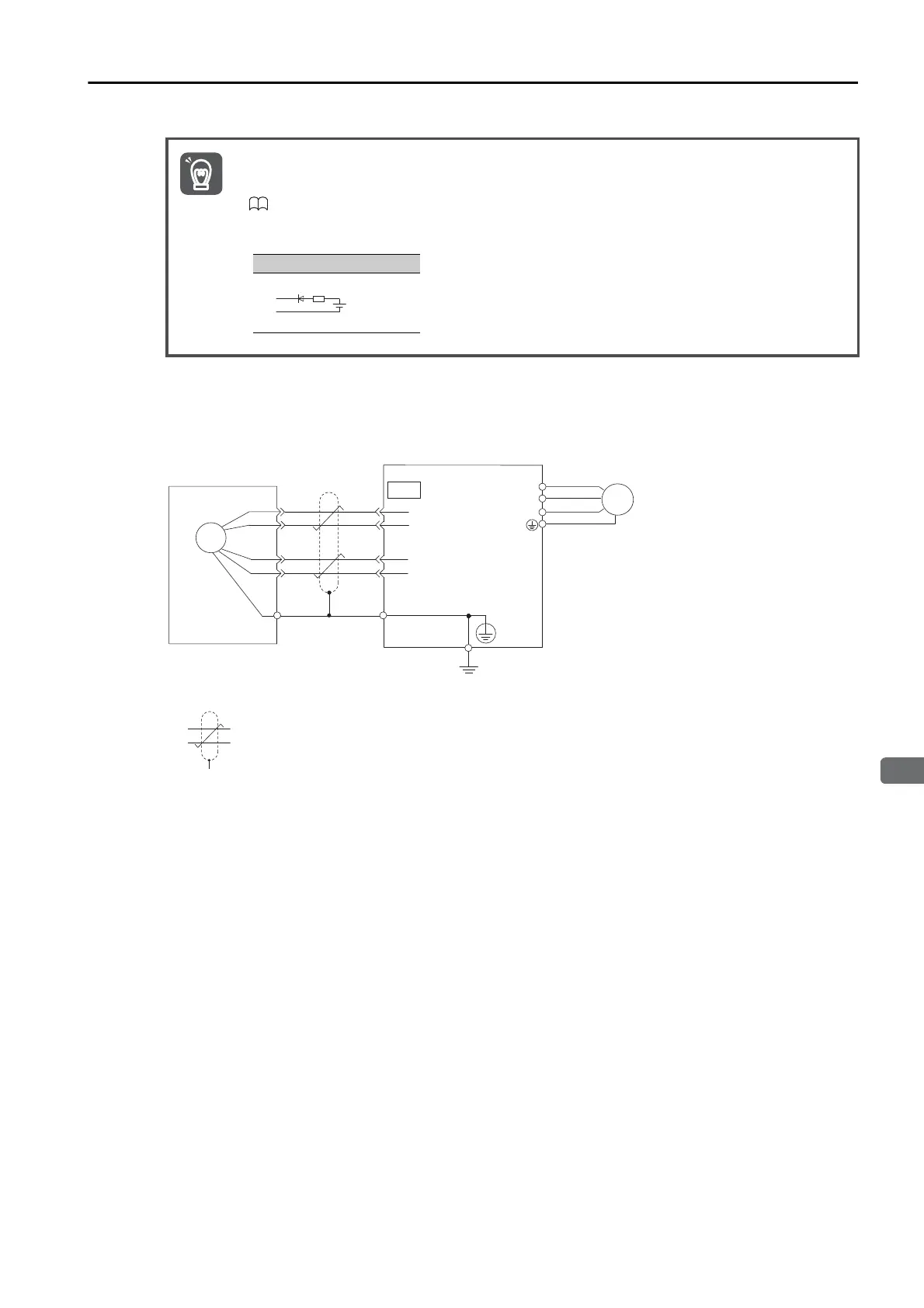

When Using an Incremental Encoder
*1. The incremental encoder pin numbers for wiring the connector depend on the Servomotor that you use.
*2. represents a shielded twisted-pair cable.
• When Installing a Battery on the Encoder Cable
Use the Encoder Cable with a Battery Case that is specified by Yaskawa.
Refer to the following manual for details.
Σ-7-Series Peripheral Device Selection Manual (Manual No.: SIEP S800001 32)
• When Installing a Battery on the Host Controller
Insert a diode near the battery to prevent reverse current flow.
Important
Circuit Example
+
-
Battery
Required Component Specifications
• Schottky Diode
Reverse Voltage: Vr ≥ 40 V
Forward Voltage: Vf ≤ 0.37 V
Reverse current: Ir ≤ 5 μA
Junction temperature: Tj ≥ 125℃
• Resistor
Resistance: 22
Ω
Tolerance: ±5% max.
Rated power: 0.25 W min.
1
2
5
6
CN2
ENC
*2
*1
PS
/PS
PG5V
PG0V
U
V
W
M
Incremental encoder
(Shell)
Connector
shell
SERVOPACK
Shield

YASKAWA SGD7S series Specifications

General

Series	SGD7S
Safety	STO (Safe Torque Off)
Humidity	90% RH or less (non-condensing)
Control Method	PWM Control
Communication	EtherCAT, MECHATROLINK-III, MECHATROLINK-II
Output Power	0.1 kW to 15 kW
Feedback System	Incremental encoder, Absolute encoder
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Overheating, Encoder Error
Ambient Temperature	0 to 55°C
Storage Temperature	-20 to 85°C
Vibration Resistance	5.9 m/s²
Installation	Panel mounted
Certifications	CE, UL, cUL
