YASKAWA SGD7S series User Manual

13.1 Panel Operator
13.1.1 Panel Operator Key Names and Functions
13-3
13
Panel Displays and Panel Operator Procedures
13.1 Panel Operator
13.1.1 Panel Operator Key Names and Functions

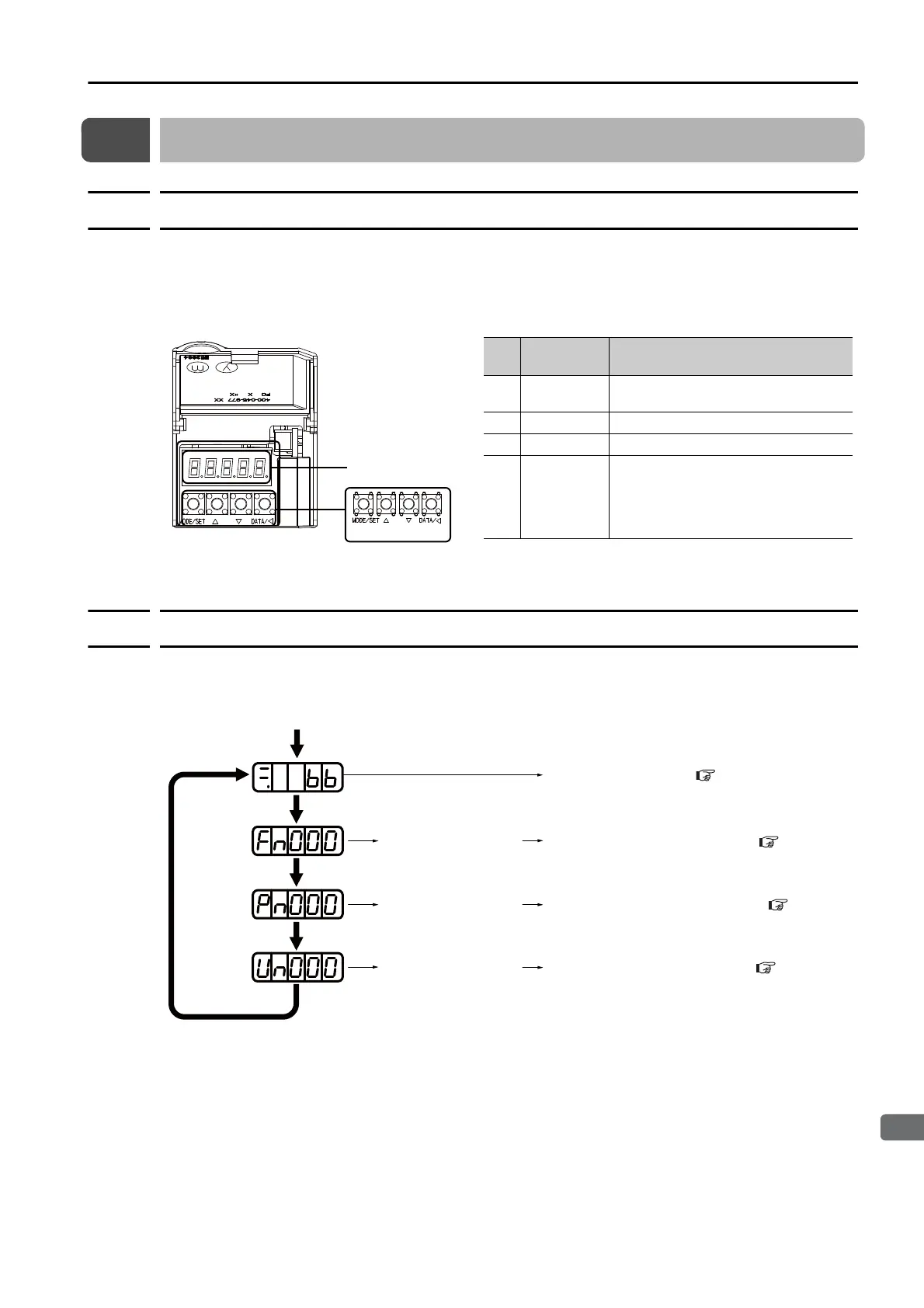

The Panel Operator consists of a panel display and Panel Operator keys.
You can use the Panel Operator to set parameters, display status, execute utility functions, and
monitor SERVOPACK operation.
The Panel Operator key names and functions are given below.
13.1.2 Changing Modes
Press the MODE/SET Key to change between the modes as shown below.
Refer to the reference pages for the operating procedures in each function mode.




Panel display
Panel Operator
Key
No.
Key Name Function

MODE/SET
Key
• Changes the display.
• Confirms settings.

UP Key Increases the setting.

DOWN Key Decreases the setting.

DATA/SHIFT
Key
• Displays the setting. To display the
setting, press the DATA/SHIFT Key
for approximately one second.
• Moves to the next digit on the left
when a digit is flashing.
Power ON
Press the MODE/SET Key.
Press the MODE/SET Key.
Press the MODE/SET Key.
Press the MODE/SET Key.
Press the DATA/SHIFT Key
for approx. 1 second.
Press the DATA/SHIFT Key
for approx. 1 second.
Press the DATA/SHIFT Key
for approx. 1 second.
Utility Function Mode (Fn) page 13-12
Status Display Mode page 13-4
Monitor Display Mode (Un) page 13-8
Parameter Setting Mode (Pn) page 13-6

YASKAWA SGD7S series Specifications

General

Series	SGD7S
Safety	STO (Safe Torque Off)
Humidity	90% RH or less (non-condensing)
Control Method	PWM Control
Communication	EtherCAT, MECHATROLINK-III, MECHATROLINK-II
Output Power	0.1 kW to 15 kW
Feedback System	Incremental encoder, Absolute encoder
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Overheating, Encoder Error
Ambient Temperature	0 to 55°C
Storage Temperature	-20 to 85°C
Vibration Resistance	5.9 m/s²
Installation	Panel mounted
Certifications	CE, UL, cUL
