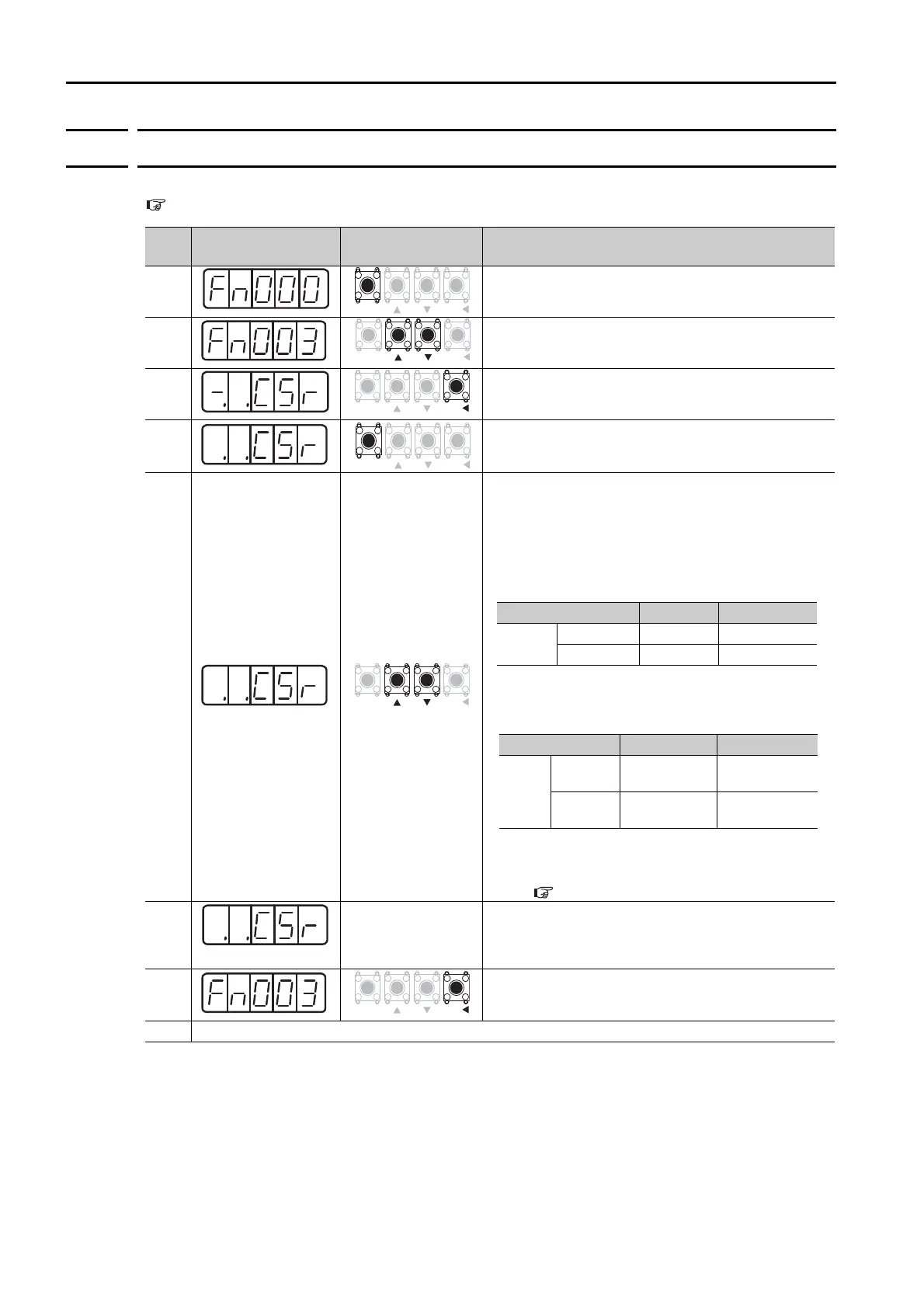

13.4 Utility Function (Fn) Operations on the Panel Operator
13.4.3 Origin Search (Fn003)
13-14
13.4.3 Origin Search (Fn003)
Refer to the following section for information on this utility function other than the procedure.
7.6.2 Origin Search on page 7-25
Step
Panel Display after
Operation
Keys Operation
1
Press the MODE/SET Key to enter Utility Function
Mode.
2 Press the UP Key or DOWN Key to display Fn003.
3
Press the DATA/SHIFT Key for approximately one sec-
ond. The display shown on the left will appear.
4
Press the MODE/SET Key to turn ON the servo. The
display shown on the left will appear.
5
Press the UP Key to operate the Servomotor in the for-
ward direction.
Press the DOWN Key to operate the Servomotor in the
reverse direction.
The rotation direction of the Servomotor changes
according to the setting of Pn000 = n.X as
shown in the following table.
• Rotary Servomotors
Note: This is the direction when viewed from the
load side of the Servomotor.
• Linear Servomotors
Note: The direction in which the linear encoder counts up is
the forward direction. Refer to the following section
for details.
5.6 Motor Direction Setting on page 5-18
6
(Flashing)
–
When the Servomotor origin search has been com-
pleted, the display will flash. At this time, the Servomo-
tor is servo-locked at the origin within one rotation of
the encoder.
7
Press the DATA/SHIFT Key for approximately one sec-
ond to return the display to Fn003.
8 Turn the power supply to the SERVOPACK OFF and ON again after you finish the origin search.
MODE / SET DATA /
MODE / SET DATA /
MODE / SET DATA /
MODE / SET DATA /
MODE / SET DATA /
Parameter UP Key DOWN Key
Pn000
n.0 CCW CW
n.1 CW CCW
Parameter UP Key DOWN Key
Pn000
n.0
Linear encoder
counts up.
Linear encoder
counts down.
n.1
Linear encoder
counts down.
Linear encoder
counts up.
MODE / SET DATA /

YASKAWA SGD7S series Specifications

General

Series	SGD7S
Safety	STO (Safe Torque Off)
Humidity	90% RH or less (non-condensing)
Control Method	PWM Control
Communication	EtherCAT, MECHATROLINK-III, MECHATROLINK-II
Output Power	0.1 kW to 15 kW
Feedback System	Incremental encoder, Absolute encoder
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Overheating, Encoder Error
Ambient Temperature	0 to 55°C
Storage Temperature	-20 to 85°C
Vibration Resistance	5.9 m/s²
Installation	Panel mounted
Certifications	CE, UL, cUL
