YASKAWA SGD7S series User Manual

4.1 Wiring and Connecting SERVOPACKs
4.1.2 Countermeasures against Noise
4-6
Noise Filters
You must attach Noise Filters in appropriate places to protect the SERVOPACK from the

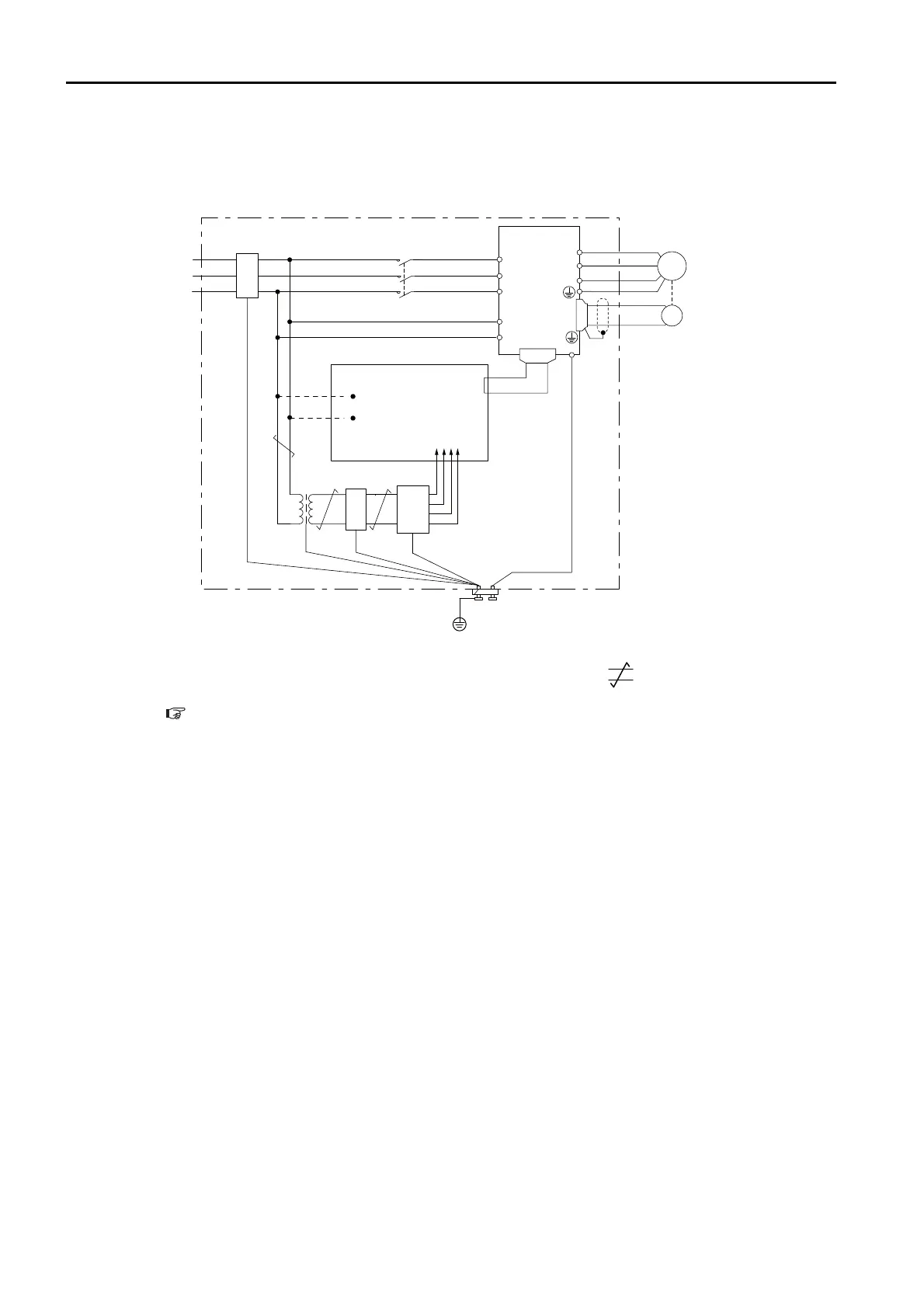

adverse effects of noise. The following is an example of wiring for countermeasures against
noise.
*1. For the ground wire, use a wire with a thickness of at least 2.0 mm
2
(preferably, flat braided copper wire).
*2. Whenever possible, use twisted-pair wires to wire all connections marked with .
*3. Refer to the following section for precautions when using Noise Filters.
Noise Filter Wiring and Connection Precautions on page 4-7
U
W
V
L2
L1
L3
L2C
L1C
CN2
CN1
SERVOPACK
Servomotor
Operation relay sequence
User signal generators
DC
power
supply
(Grounding plate)
External ground: Use a dedicated ground.
2.0 mm
2
min.
200 VAC
Noise Filter
*1
2.0 mm
2
min.
2.0 mm
2
min.
ENC
(FG)
M
Noise Filter
*3
*3 *2

YASKAWA SGD7S series Specifications

General

Series	SGD7S
Safety	STO (Safe Torque Off)
Humidity	90% RH or less (non-condensing)
Control Method	PWM Control
Communication	EtherCAT, MECHATROLINK-III, MECHATROLINK-II
Output Power	0.1 kW to 15 kW
Feedback System	Incremental encoder, Absolute encoder
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Overheating, Encoder Error
Ambient Temperature	0 to 55°C
Storage Temperature	-20 to 85°C
Vibration Resistance	5.9 m/s²
Installation	Panel mounted
Certifications	CE, UL, cUL
