5.16 Setting the Origin of the Absolute Encoder
5.16.2 Setting the Origin of the Absolute Linear Encoder
5-50
Operating Procedure
Use the following procedure to set the origin of an absolute linear encoder.
1.

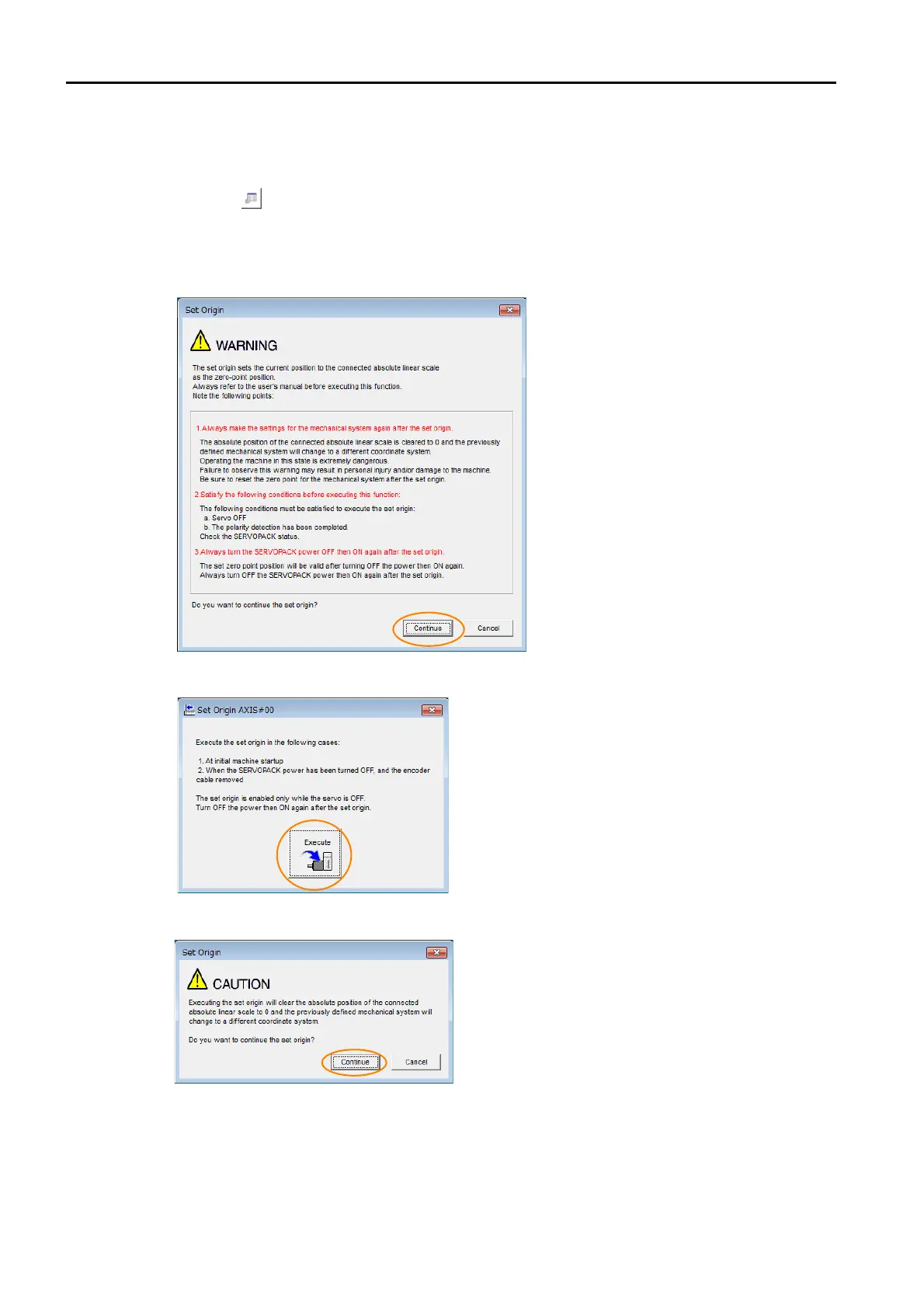

Click the Servo Drive Button in the workspace of the Main Window of the SigmaWin+.
2.
Select Set Origin in the Menu Dialog Box.
The Set Origin Dialog Box will be displayed.
3.
Click the Continue Button.
4.
Click the Execute Button.
5.
Click the Continue Button.
Click the Cancel Button to cancel setting the origin of the absolute linear encoder. The previous dia-
log box will return.
