5.16 Setting the Origin of the Absolute Encoder
5.16.2 Setting the Origin of the Absolute Linear Encoder
5
Basic Functions That Require Setting before Operation
5-51
6.

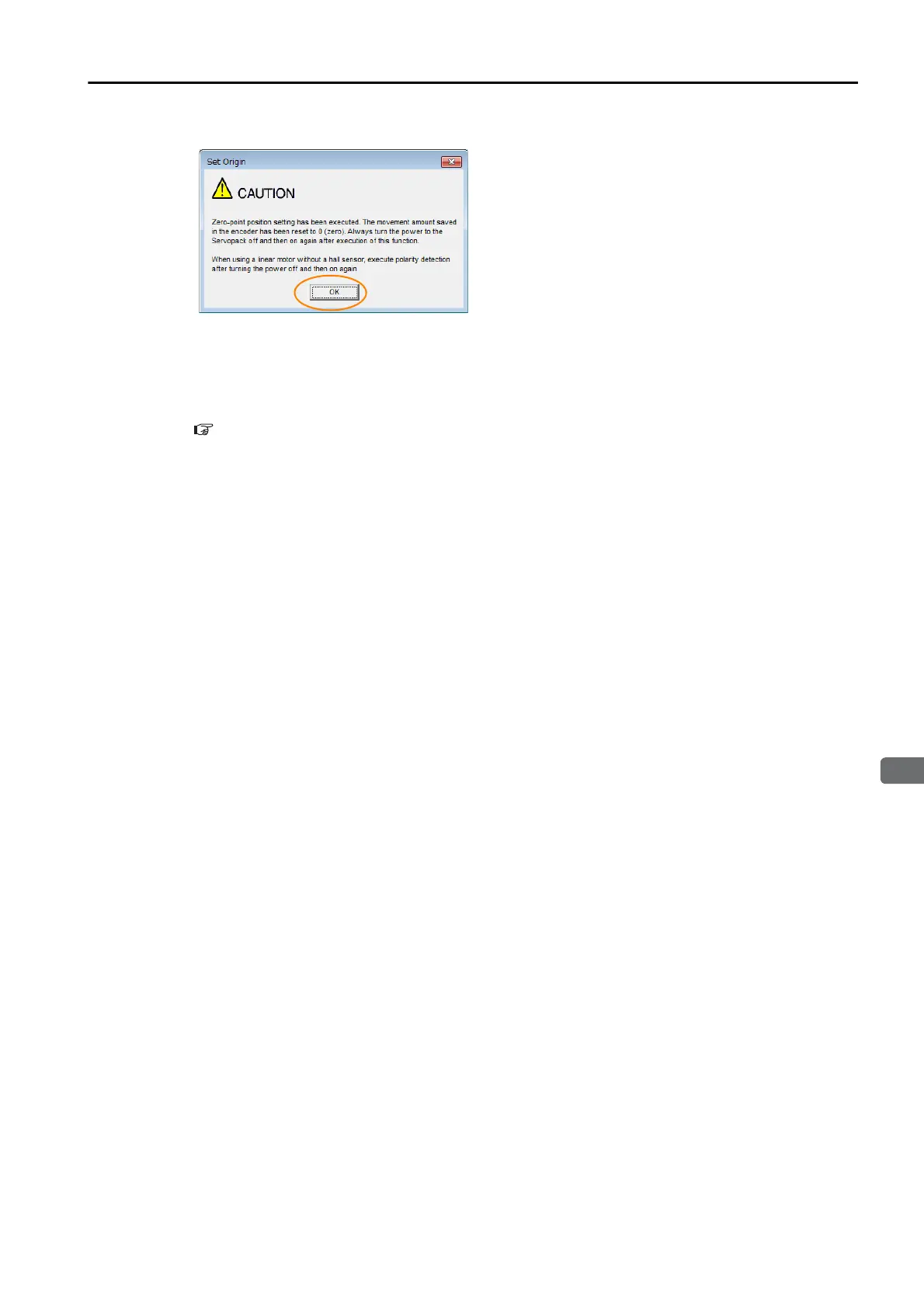

Click the OK Button.
7.
Turn the power supply to the SERVOPACK OFF and ON again.
8.
If you use a Linear Servomotor that does not have a polarity sensor, perform polarity
detection.
Refer to the following section for details on the polarity detection.
5.9 Polarity Detection on page 5-25
This concludes the procedure to set the origin of the absolute linear encoder.
